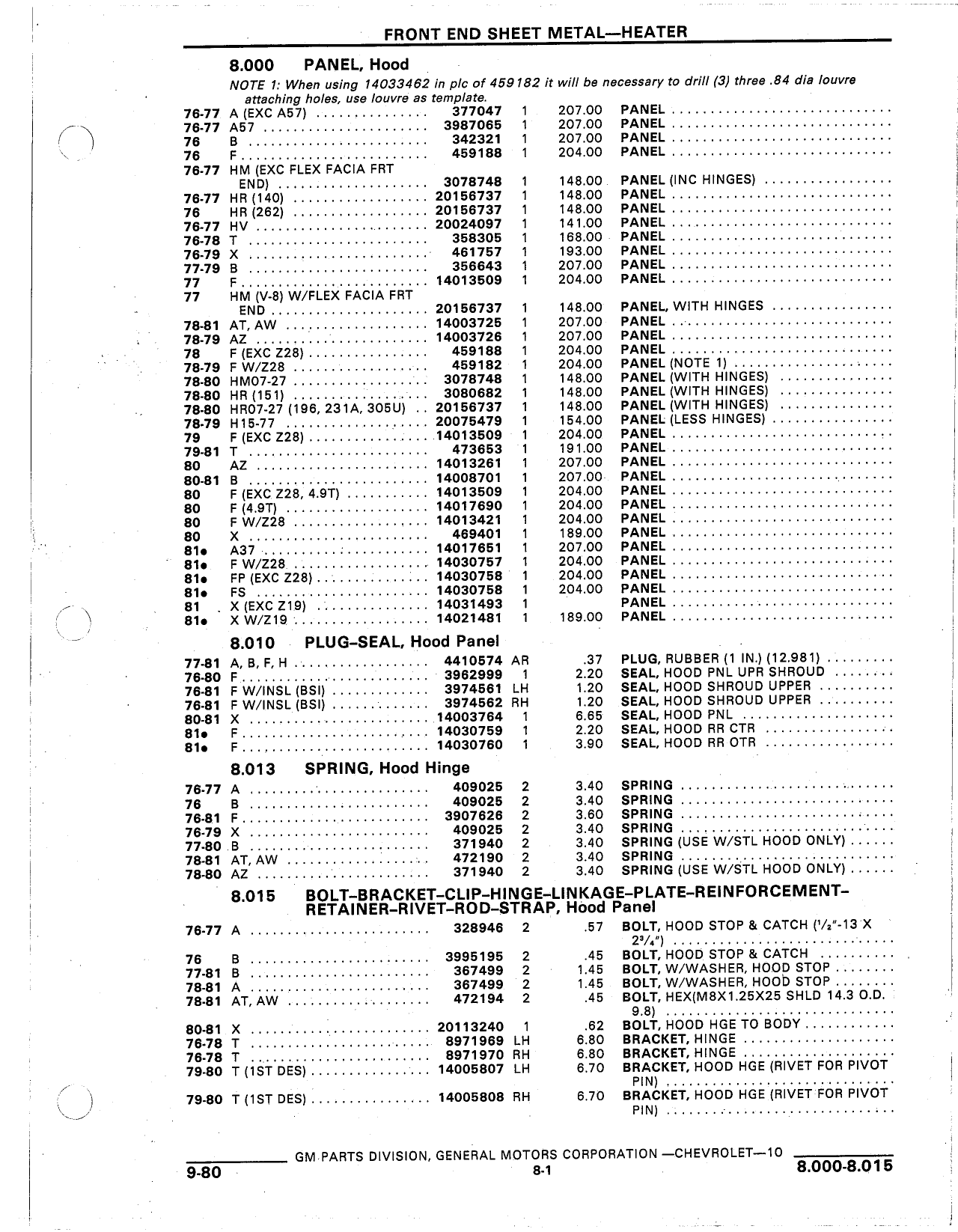

I FRONT END SHEET METAL HEATER 8 000 PANEL Hood NOTE 1 When using 14033462 ln plc of 459182 it will be necessary to drill 3 three 84 dla louwe attaching hn es use louvre as template 76 77 A EXC A57 4 377047 1 207 00 PANEL K 76 77 A57 44 3987065 1 207 00 PANEL 76 B 342321 1 207 00 PANEL 76 F 459188 1 204 00 PANEL I 76 77 HM EXC FLEX FACIA FRT END 3078748 1 148 00 PANEL INC HINGES 76 77 HR 140 20156737 1 148 00 PANEL I 76 HR 262 20156737 1 148 00 PANEL 76 77 HV 20024097 1 141 00 PANEL 76 78 T 358305 1 168 00 PANEL 76 79 X 461757 1 193 00 PANEL 77 79 B 356643 1 207 00 PANEL 77 F 14013509 1 204 00 PANEL 77 HM V 8 W FLEX FACIA FRT END 20156737 1 148 00 PANEL WITH HINGES 78 81 AT AW 14003725 1 207 00 PANEL I 78 79 AZ 14003726 1 207 00 PANEL 78 F EXC Z28 459188 1 204 00 PANEL I 78 79 F W Z28 459182 1 204 00 PANEL NOTE I 78 80 HM07 27 3078748 1 148 00 PANEL WITH HINGES 78 80 HR 151 3080682 1 148 00 PANEL WITH HINGES 78 80 HR07 27 196 231A 305U 20156737 1 148 00 PANEL WITH HINGES 78 79 HI5 77 20075479 1 154 00 PANEL LESS HINGES 79 F EXC Z28 14013509 1 204 00 PANEL 79 81 T 473653 I 191 00 PANEL 80 AZ 14013261 1 207 00 PANEL 80 81 8 14008701 1 207 00 PANEL 80 F EXC Z28 4 9T 14013509 I 204 00 PANEL 80 F 4 9T 14017690 1 204 00 PANEL I 80 F W Z28 14013421 1 204 00 PANEL E 80 X 469401 1 189 00 PANEL 81 A37 14017851 I 207 00 PANEL I 81 F W Z28 14030757 1 204 00 PANEL 81 FP EXC Z28 14030758 1 204 00 PANEL 81 FS 14030758 I 204 00 PANEL I r 81 X EXC Z19 14031493 I PANEL I V 81 X W Z19 14021481 1 189 00 PANEL 8 010 PLUG SEAL Hood Panel 77 81 A B F H 44I0574 AR 37 PLUG RUBBER 1 IN 12 981 76 80 F 3962999 1 2 20 SEAL HOOD PNL UPR SHROUD 76 81 F W INSL BSI 3974561 LH 1 20 SEAL HOOD SHROUD UPPER V 76 81 F W INSL BSI 3974562 RH 1 20 SEAL HOOD SHROUD UPPER 80 81 X 14003764 1 6 65 SEAL HOOD PNL 81 F 14030759 1 2 20 SEAL HOOD RR CTR 81 F 14030760 1 3 90 SEAL HOOD RR OTR 8 013 SPRING Hood Hinge 76 77 A 409025 2 3 40 SPRING 76 B 409025 2 3 40 SPRING 76 81 F 3907626 2 3 60 SPRING 76 79 X 409025 2 8 40 SPRING 77 80 B 371940 2 3 40 SPRING USE W STL HOOD ONLY 78 81 AT AW 472190 2 3 40 SPRING I 78 80 AZ 371940 2 3 40 SPRING USE W STL HOOD ONLY 8 015 BOLT BRACKET CLIP HINGE LINKAGE PLATE REINFORCEMENT I I RETAINER RIVET ROD STRAP Hood Panel I I 76 77 A 328946 2 57 BOLT HOOD STOP CATCH I 13 X Z 76 B 3995195 2 45 BOLT HOOD STOP CATCH 77 81 B 367499 2 1 45 BOLT W WASHER HOOD STOP 78 81 A 367499 2 1 45 BOLT W WASHER HOOD STOP 78 81 AT AW 472I94 2 45 BOLT HEX M8X1 25X25 SHLD 14 3 O D 9 8 80 81 X 20113240 1 62 BOLT HOOD HGE TO BODY 78 78 T 8971969 LH 6 80 BRACKET HINGE 76 78 T 8971970 RH 6 80 BRACKET HINGE 79 80 T 1ST DES 14005807 LH 6 70 BRACKET HOOD HGE RIVET FOR PIVOT PIN 79 80 T IST DES 14005808 RH 6 70 BRACKET HOOD HGE RIVET FOR PIVOT 1 PIN I GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 10 9 80 8 1 8 000 8 015 I I 7 A
