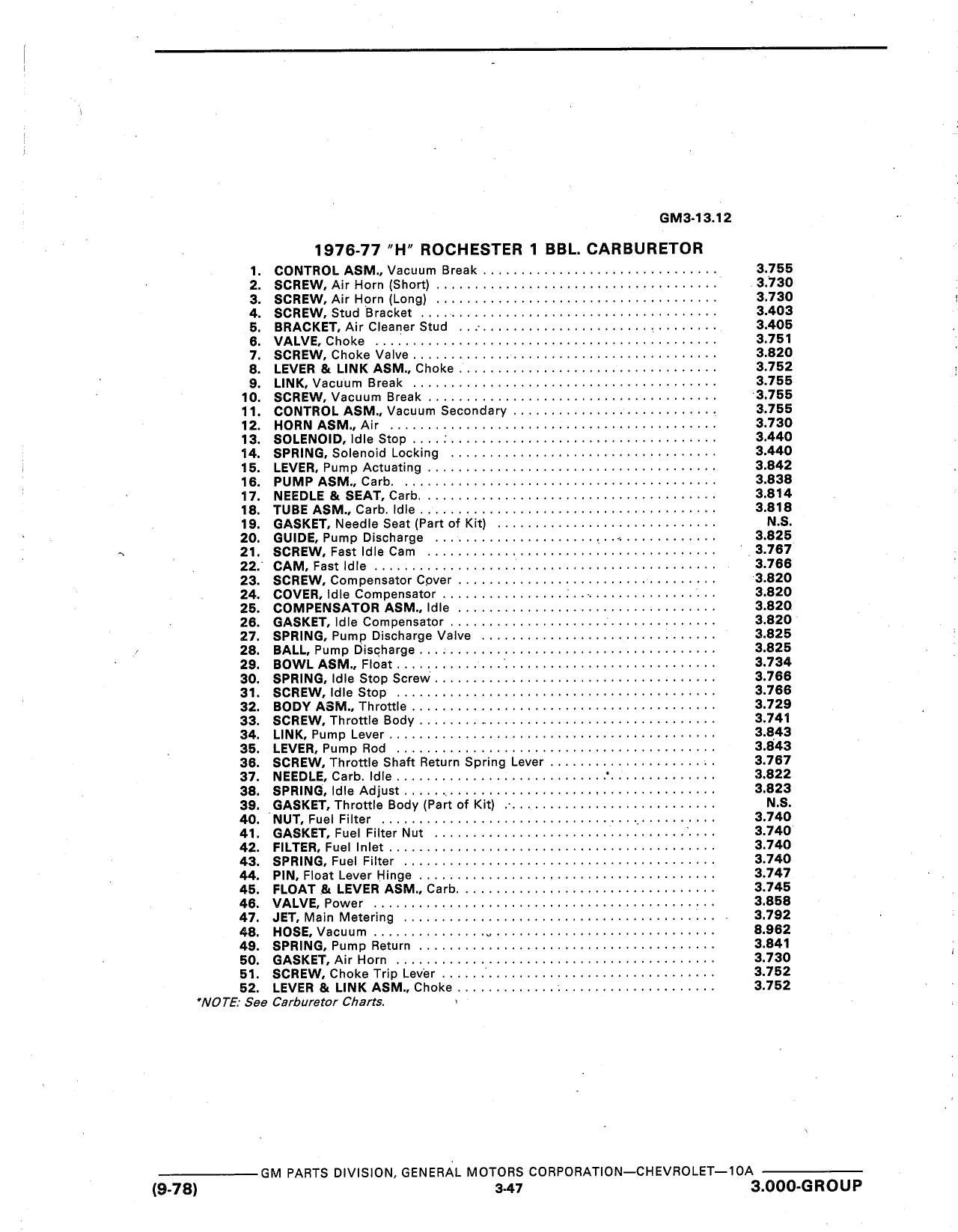

GM3 13 12 1976 77 H ROCHESTER 1 BBL CARBURETOR 1 CONTROL ASM Vacuum Break 3 755 2 SCREW Alr Horn Short 3 730 3 SCREW Alr Horn Long 3 730 4 4 SCREW Stud Bracket 3 403 5 BRACKET Air Cleaner Stud 3 405 8 VALVE Choke 3 751 7 SCREW Choke Valve 3 820 8 LEVER LINK ASM Choke 3 752 9 LINK Vacuum Break 3 755 I0 SCREW Vacuum Break 3 755 11 CONTROL ASM Vacuum Secondary 3 755 12 HORN ASM Air 3 730 13 SOLENOID Idle Stop 3 440 14 SPRING Solenoid Locking 3 440 i 15 LEVER Pump Actuating 3 842 18 PUMP ASM Carb 3 838 17 NEEDLE SEAT Carb 3 814 18 TUBE ASM Carb Idle 3 818 19 GASKET Needle Seat Part of Kit N S 20 GUIDE Pump Discharge 3 825 21 SCREW Fast Idle Cam 3 767 22 CAM Fast Idle 3 785 23 SCREW Compensator Cover 3 820 24 COVER Idle Compensator 3 820 25 COMPENSATOR ASM Idle 3 820 26 GASKET Idle Compensator 3 820 27 SPRING Pump Discharge Valve 3 825 r 28 BALL Pump Discharge 3 825 29 BOWL ASM Float 3 734 30 SPRING Idle Stop Screw 3 788 31 SCREW Idle Stop 3 766 32 BODY ASM Throttle 3 729 33 SCREW Throttle Body 3 741 34 LINK Pump Lever 3 843 35 LEVER Pump Rod 3 843 36 SCREW Throttle Shaft Return Spring Lever 3 767 37 NEEDLE Carb Idle 3 822 38 SPRING Idle Adiust 3 823 39 GASKET Throttle Body Part of Klt N S 40 NUT Fuel Filter 3 740 41 GASKET Fuel Filter Nut 3 740 42 FILTER Fuel Inlet 3 740 43 SPRING Fuel Filter 3 740 44 PIN Float Lever Hinge 3 747 45 FLOAT ll LEVER ASM Carb 3 745 45 VALVE Power 3 858 47 JET Maln Metering 3 792 48 HOSE Vacuum 8 962 49 SPRING Pump Return 3 841 50 GASKET Air Horn 3 730 I 51 SCREW Choke Trip Lever 3 752 52 LEVER LINK ASM Choke 3 752 ND TE See Carburetor Charts GM PARTS DIVISION GENERAL MOTORS CORPORATl0N CHEVROLET lOA 9 78 347 3 000 GROUP
