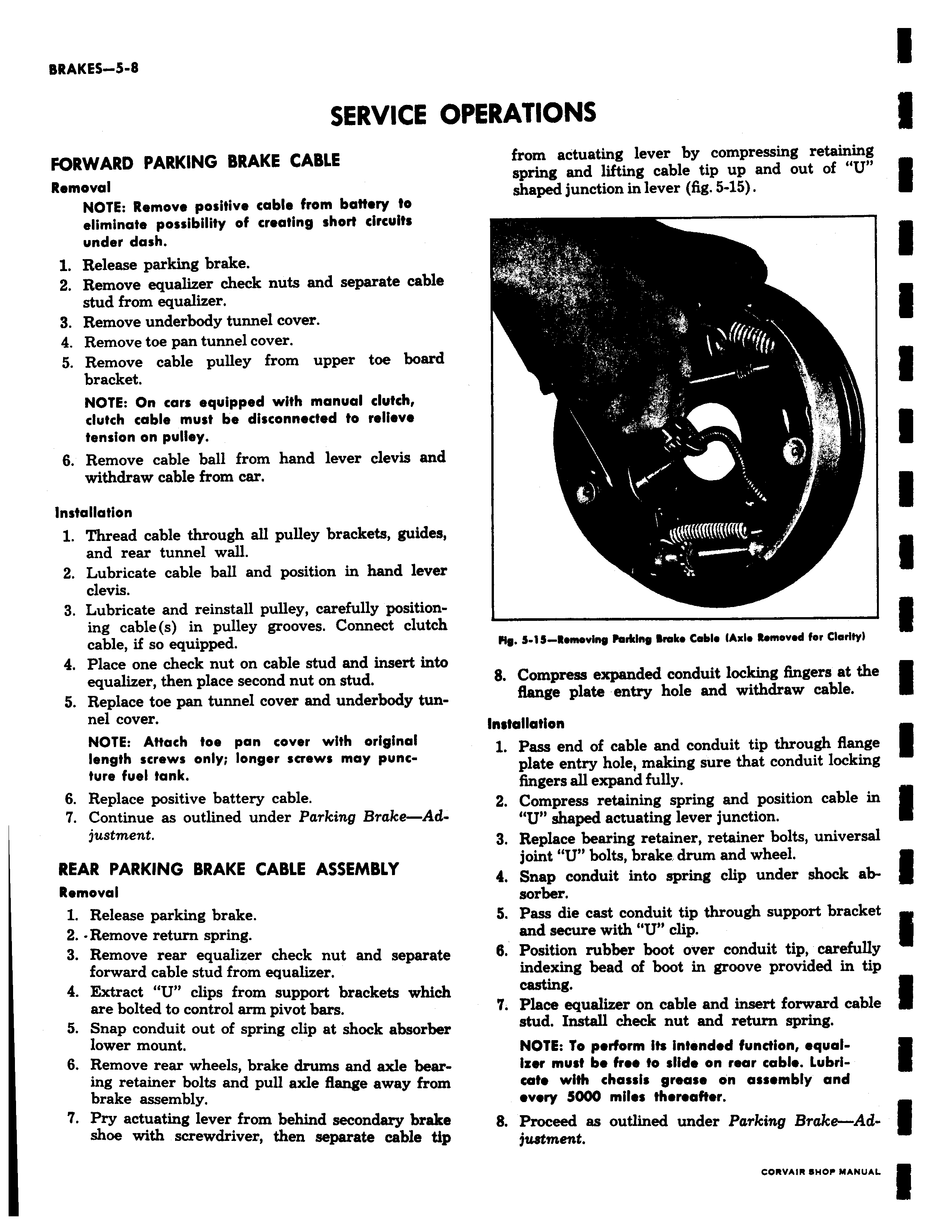

DRM I cJ v SERVICE C FORWARD PARKING BRAKE CABLE Removal NOTE Remove positive cable from battery to eliminate possibility of creating short circuits under dash 1 Release parking brake 2 Remove equalizer check nuts and separate cable stud from equalizer 3 Remove underbody tunnel cover 4 Remove toe pan tunnel cover 5 Remove cable pulley from upper toe board bracket NOTE On cars equipped with manual clutch clutch cable must be disconnected to relieve tension on pulley 6 Remove cable ball from hand lever clevis and withdraw cable from car Installation 1 Thread cable through all pulley brackets guides and rear tunnel wall 2 Lubricate cable ball and position in hand lever clevis 3 Lubricate and reinstall pulley carefully positioning cable s in pulley grooves Connect clutch cable if so equipped 4 Place one check nut on cable stud and insert into equalizer then place second nut on stud 5 Replace toe pan tunnel cover and underbody tunnel cover NOTE Attach toe pan cover with original length screws only longer screws may puncture fuel tank 6 Replace positive battery cable 7 Continue as outlined under Parking Brake Adjustment REAR PARKING BRAKE CABLE ASSEMBLY Removal 1 Release parking brake 2 Remove return spring 3 Remove rear equalizer check nut and separate forward cable stud from equalizer 4 Extract U clips from support brackets which are bolted to control arm pivot bars 5 Snap conduit out of spring clip at shock absorber lower mount 6 Remove rear wheels brake drums and axle bearing retainer bolts and pull axle flange away from brake assembly 7 Pry actuating lever from behind secondary brake shoe with screwdriver then separate cable tip 1 Y t F 1 F 11 1 v v v a1 T 1
