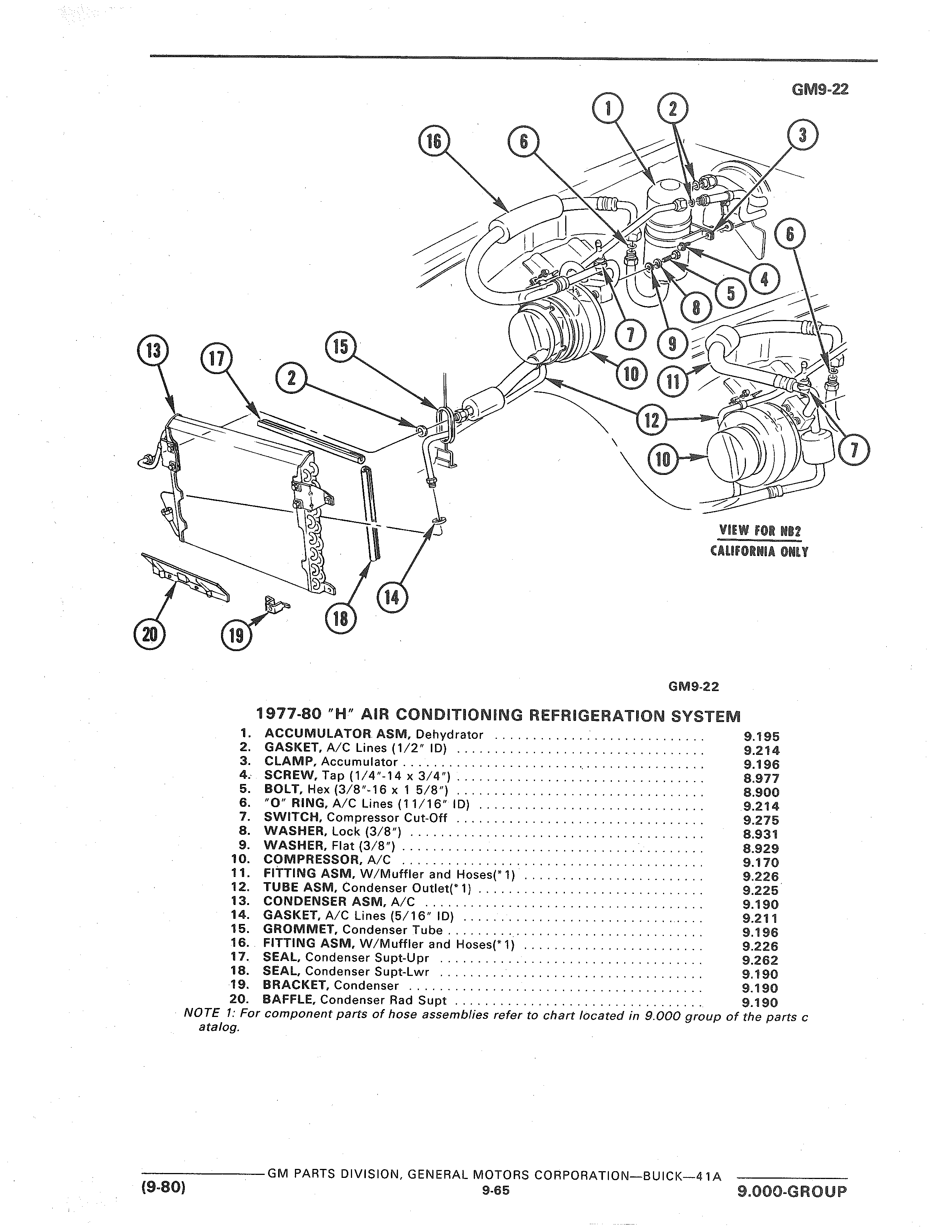

GM9 22 O 0 g I M 6 mag F ig W I I I 0 I f J 7 Z I I 0 E I 7 J I I I IA V V IL I K Q 4 N AA V X 0 A 5I F I J I I 3 I VIEW FOR IIB2 CALIFORNIA 0III Y N E I I Z I Q GM9 22 1977 80 H AIR CONDITIONING REFRIGERATION SYSTEM 1 ACCUMULATOR ASM Dehydrator 9 195 2 GASKET A C Lines 1 2 ID 9 214 3 CLAMP Accumulator 9 196 4 SCREW Tap 1 4 14 x 3 4 8 977 5 BOLT Hex 3 8 16 x 1 5 8 8 900 6 0 RING A C Lines 11 16 ID 9 214 7 SWITCH Compressor Cut Off 9 275 8 WASHER Lock 3 B 8 931 9 WASHER Flat 3 B 8 929 10 COMPRESSOR A C 9 170 11 FITTING ASM W Muffler and Hoses 1 9 226 12 TUBE ASM Condenser Out et 1 9 225 13 CONDENSER ASM A C 9 190 14 GASKET A C Lines 5 1 G ID 9 211 15 GROMMET Condenser Tube V 9 196 16 FITTING ASM W Muffler and Hoses 1 9 226 17 SEAL Condenser Supt Upr 9 262 18 SEAL Condenser Supt Lwr 9 190 19 BRACKET Condenser 9 190 20 BAFFLE Condenser Rad Supt 9 190 NOTE 1 For component parts of hose assemblies refer to chart located in 9 000 group of the parts c atalog GM PARTS DIVISION GENERAL MOTORS CORPORAT ON BU Cl 41A 9 80 9 65 9 000 GROUP
