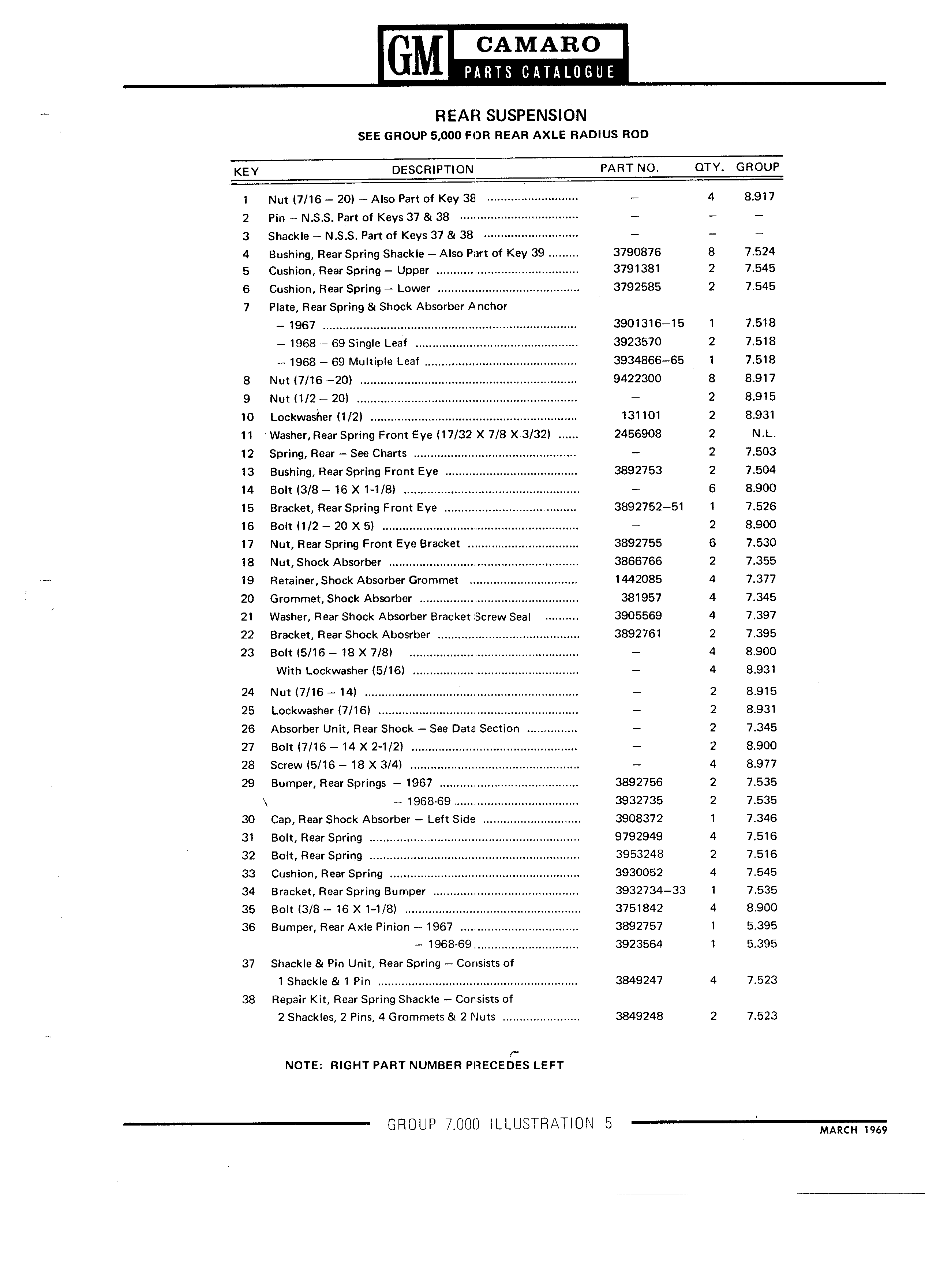

CAMARO P A R T REAR SUSPENSION SEE GROUP 5 000 FDR REAR AXLE RADIUS ROD KEY DESCRIPTION PART NO QTY GROUP 1 Nut 7 16 20 Also Part of Key 38 4 8 917 2 Part gf Keys 3 Shackle N S S Part of Keys 37 38 4 Bushing Rear Spring Shackle Also Part of Key 39 3790876 8 7 524 5 Cushion Rear Spring Upper 3791381 2 7 545 6 Cushion Rear Spring Lower 3792585 2 7 545 7 Plate Rear Spring Shock Absorber Anchor 1967 3901316 15 1 7 518 1968 69 Single Leaf 3923570 2 7 518 A 1968 69 Multiple Leaf 3934866 65 1 7 518 8 Nut 7 16 20 9422300 8 8 917 9 Nut 1 2 20 2 8 915 10 Lockwasher 1 2 131101 2 8 931 11 Washer Rear Spring Front Eye 17 32 X 7 8 X 3 32 2456908 2 N L 12 Spring Rear See Charts 2 7 503 13 Bushing Rear Spring Front Eye 3892753 2 7 504 14 Bolt 3 8 16 X 1 1 8 6 8 900 15 Bracket Rear Spring Front Eye 3892752 51 1 7 526 16 Bolt 1 2 20 X 5 2 8 900 17 Nut Rear Spring Front Eye Bracket 3892755 6 7 530 18 Nut Shock Absorber 3866766 2 7 355 19 Retainer Shock Absorber Grommet 1442085 4 7 377 20 Grommet Shock Absorber 381957 4 7 345 21 Washer Rear Shock Absorber Bracket Screw Seal 3905569 4 7 397 22 Bracket Rear Shock Abosrber 3892761 2 7 395 23 Bolt 5 16 18 X 7 8 4 8 900 With Lockwasher 5 16 4 8 931 24 Nut 7 16 14 2 8 915 25 Lockwasher 7 16 r 2 8 931 26 Absorber Unit Rear Shock See Data Section 2 7 345 27 Bolt 7 16 14 X 2 1 2 2 8 900 28 Screw 5 16 18 X 3 4 4 8 977 29 Bumper Rear Springs 1967 3892756 2 7 535 1968 69 3932735 2 7 535 30 Cap Rear Shock Absorber Left Side 3908372 1 7 346 31 Bolt Rear Spring 9792949 4 7 516 32 Bolt Rear Spring 3953248 2 7 516 33 Cushion Rear Spring 3930052 4 7 545 34 Bracket Rear Spring Bumper 3932734 33 1 7 535 A 35 Bolt 3 8 16 X 1 1 8 3751842 4 8 900 36 Bumper Rear Axle Pinion 1967 3892757 1 5 395 196869 3923564 1 5 395 37 Shackle Pin Unit Rear Spring Consists of 1 Shackle 1 Pin 3849247 4 7 523 38 Repair Kit Rear Spring Shackle Consists of 2 Shackles 2 Pins 4 Grommets 2 Nuts 3849248 2 7 523 r NOTE RIGHT PART NUMBER PRECEDES LEFT GROUP 7 000 ILLUSTRATION 5
