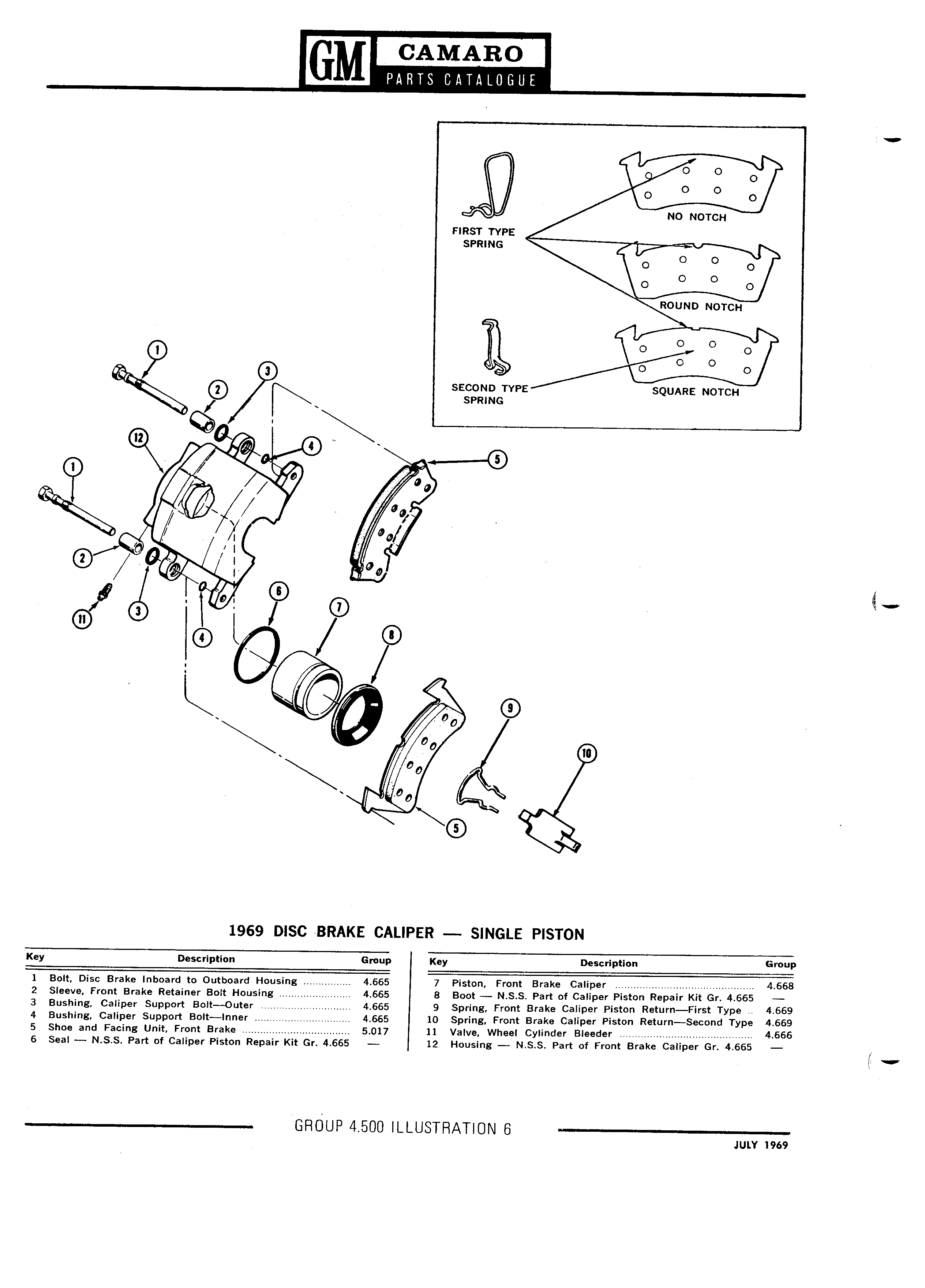

PARTS CATALOGUE wv O O O O O O 0 N0 NOTCH FIRST TYPE SPRING O O O O O Q ROUND NOTCH 0 O O 0 O O O O secono wm sQuARE Norco i SPRING Q I h i x I i ag 00 0 Irl 0 J T I T f Q i t 00 0 I 0 w 00 I 00 Q A 1969 DISC BRAKE CALIPER SINGLE PISTON Key Description Group Key Description Group 1 Bolt Disc Brake Inboard to Outboard Housing 4 4 665 7 Piston Front Brake Caliper 4 668 2 Sleeve Front Brake Retainer Bolt Housing 4 665 8 Boot N S S Part of Caliper Piston Repair Kit Gr 4 665 3 Bushing Caliper Support Bolt Outer 4 665 9 Spring Front Brake Caliper Piston Return First Type 4 669 4 Bushing Caliper Support Bo t lnner 4 665 10 Spring Front Brake Caliper Piston Return Second Type 4 669 5 Shoe and Facing Unit Front Brake 5 017 11 Valve Wheel Cylinder Bleeder 4 666 6 Seal N S S Part of Caliper Piston Repair Kit Gr 4 665 12 Housing N S S Part of Front Brake Caliper Gr 4 665 I E wv GHUUP 4 500 jS RAT Q 6 JULY 1969
