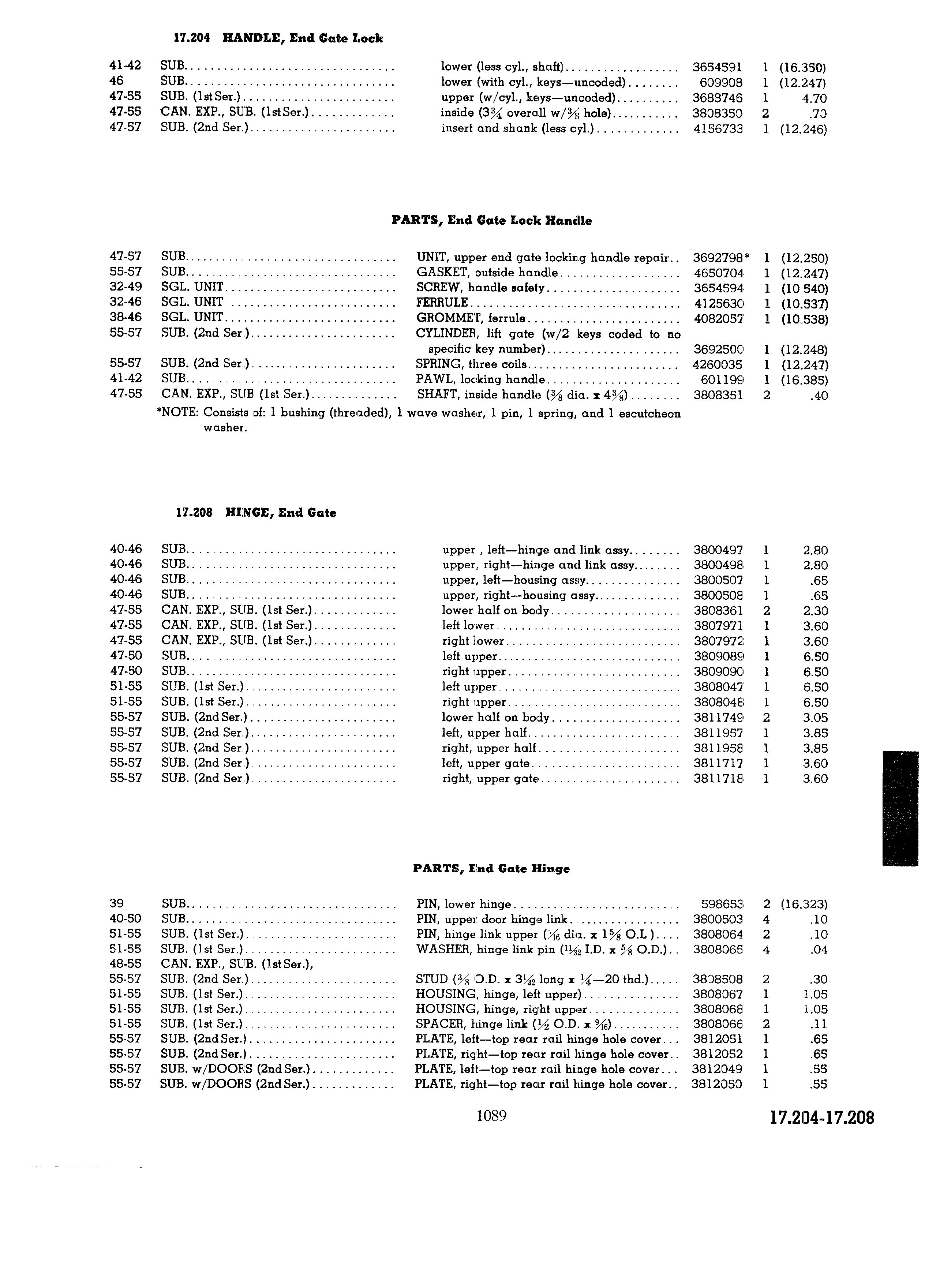

17 204 HANDLE End Gate Lock 41 42 SUB lower less cyl shaft 3654591 1 16 350 46 SUB lower with cyl keys uncoded 609908 1 12 247 47 55 SUB lst Ser upper w cyl keys uncoded 3688746 1 4 70 47 55 CAN EXP SUIB lst Ser inside 3 overall w hole 3808350 2 70 47 57 SUB 2nd Ser insert and shank less cyl 4156733 1 12 246 PARTS End Gate Lock Huindlle 47 57 SUB UNIT upper end gate locking handle repair 3692798 1 12 250 55 57 SUB GASKET outside handle 4650704 1 12 247 32 49 SGL UNIT SCREW handle safety 3654594 1 10 540 32 46 SGL UNIT FERRULE 4125630 1 10 537 38 46 SGL UNIT GROMMET ferrula 4082057 1 10 538 55 57 SUB 2nd Sen CYLINDER lift gate w 2 keys coded to no specific key number 3692500 1 12 248 55 57 SUB 2nd Se1r SPRING three coils 4260035 1 12 247 41 42 SUB PAWL locking handl e 601199 1 16 385 47 55 CAN EXP SUB lst Ser SHAFT inside handle dia x 4 3808351 2 40 NO l E Consists of 1 bushing threaded 1 wave washer 1 pin 1 spring and 1 escutcheon washer 17 208 HICNGE End Gate 40 46 SUB upper left hinge and link assy 3800497 1 2 80 40 46 SUB upper right hinge cmcl link assy 3800498 1 2 80 40 46 SUB upper lett housing assry 3800507 1 65 40 46 SUB upper right hous ing assy 3800508 l 65 47 55 CAN EXP SUB lst Ser lower half on body 3808361 2 2 30 47 55 CAN EXP SUB lst Ser left lower 3807971 l 3 60 47 55 CAN EXP SUB lst Ser right l ower 38079725 1 3 60 47 50 SUB left upper 3809089 1 6 50 47 50 SUB right upper 3809090 1 6 50 51 55 SUB lst Ser left upper 3808047 1 6 50 51 55 SUB lst Ser right upper 3808048 1 6 50 55 57 SUB 2nd Ser lower halt on body 3811749 2 3 05 55 57 SUB 2nd Ser left upper half 3811957 1 3 85 55 57 SUB 2nd Ser right upper half 3811958 1 3 85 55 57 SUB 2nd Sei left upper gate 3811717 1 3 60 55 57 SUB 2nd Sei right upper gate 3811718 1 3 60 PARTS End Gate Hinge 39 SUB PIN lower hinge 598653 2 16 3323 40 50 SUB PIN upper door hinge link 3800503 4 10 51 55 SUB lst Ser PIN hinge link upper A dia x 1 O L 3808064 2 10 51 55 SUB lst Ser WASHER hinge link pizn l 1 D x O D 3808065 4 04 48 55 CAN EXP SUB lst Ser 55 57 SUB 2nd Ser STUD O D x 3 lonqr x 20 thd 3808508 2 30 51 55 SUB lst Ser HOUSING hinge left upper 3808067 1 1 05 51 55 SUB lst Ser HOUSING hinge right upper 3808068 l 1 05 51 55 SUB lst Ser SPACER hinge link CLD x 3808066 2 11 55 57 SUB 2nd Ser PLATE lett top rear rail hinge hole cover 3812051 1 65 55 57 SUB 2nd Ser PLATE right top rear rail hinge hole cover 3812052 1 65 55 57 SUB w DOORS 2nd Ser PLATE lef t top rear rail hinge hole cover 3812049 1 55 55 57 SUB w DOORS 2nd Ser PLATE right top recir rail hinge hole cover 3812050 1 55 1089 17 204 17 208
