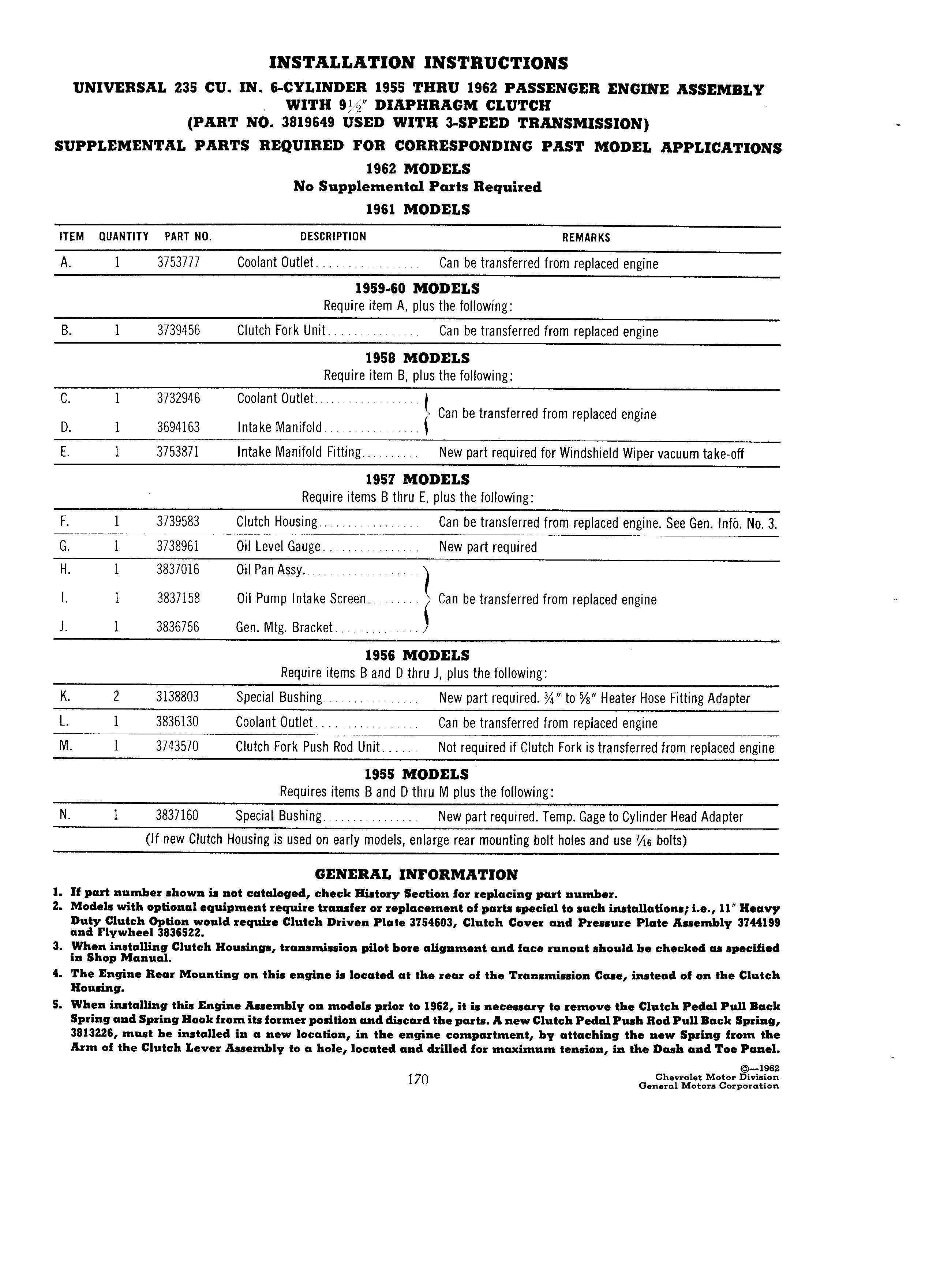

INSTALLATION INSTRUCTIONS UNIVERSAL 235 CU IN 6 CYLINDER 1955 THRU 1962 PASSENGER ENGINE ASSEMBLY WITH 9 LQ DIAPHRAGM CLUTCH PART NO 3819649 USED WITH 3 SPEED TRANSMISSION SUPPLEMENTAL PARTS REQUIRED FOR CORRESPONDING PAST MODEL APPLICATIONS 1962 MODELS No Supplemental Parts Required 1961 MODELS ITEM OUANTITY PART N0 DESCRIPTION REMARKS A 1 3753777 Coolant Outlet I Can be transferred from replaced engine 1959 60 MODELS Require item A plus the following B 1 3739456 Clutch Fork Unit Can be transferred from replaced engine 1958 MODELS Require item B plus the following C 1 3732946 Coolant Outlet Can be transferred from replaced engine D 1 3694163 Intake Manifold E 1 3753871 Intake Manifold Fitting New part required for Windshield Wiper vacuum take off 1957 MODELS Require items B thru E plus the following F 1 3739583 Clutch Housing Can be transferred from replaced engine See Gen Info No 3 G 1 3738961 Oil Level Gauge New part required H 1 3837016 Oil Pan Assy l l 1 3837158 Oil Pump Intake Screen Can be transferred from replaced engine I 1 3836756 Gen Mtg Bracket S 1956 MODELS Require items B and D thru J plus the following K 2 3138803 Special Bushing New part required to Heater Hose Fitting Adapter L 1 3836130 Coolant Outlet Can be transferred from replaced engine M 1 3743570 Clutch Fork Push Rod Unit Not required if Clutch Fork is transferred from replaced engine 1955 MODELS 8 Requires items B and D thru M plus the following N 1 3837160 Special Bushing New part required Temp Gage to Cylinder Head Adapter lf new Clutch Housing is used on early models enlarge rear mounting bolt holes and use c bolts GENERAL INFORMATION 1 If part number shown is not cataloged check History Section for replacing part number 2 Models with optional equipment require transfer or replacement of parts special to such installations i e ll Heavy Duty Clutch Option would require Clutch Driven Plate 3754603 Clutch Cover and Pressure Plate Assembly 3744199 and Flywheel 3836522 3 When installing Clutch Housings transrnission pilot bore alignment and face runout should be checked as specified in Shop Manual 4 The Engine Rear Mounting on this engine is located at the rear of the Transmission Case instead of on the Clutch Housing 5 When installing this Engine Assembly on models prior to 1962 it is necessary to remove the Clutch Pedal Pull Back Spring and Spring Hook from its former position and discard the parts A new Clutch Pedal Push Rod Pull Back Spring 3813226 must be installed in a new location in the engine compartment by attaching the new Spring from the Arm of the Clutch Lever Assembly to a hole located and drilled for maximum tension in the Dash and Toe Panel 7 962 im G i m i 3 t
