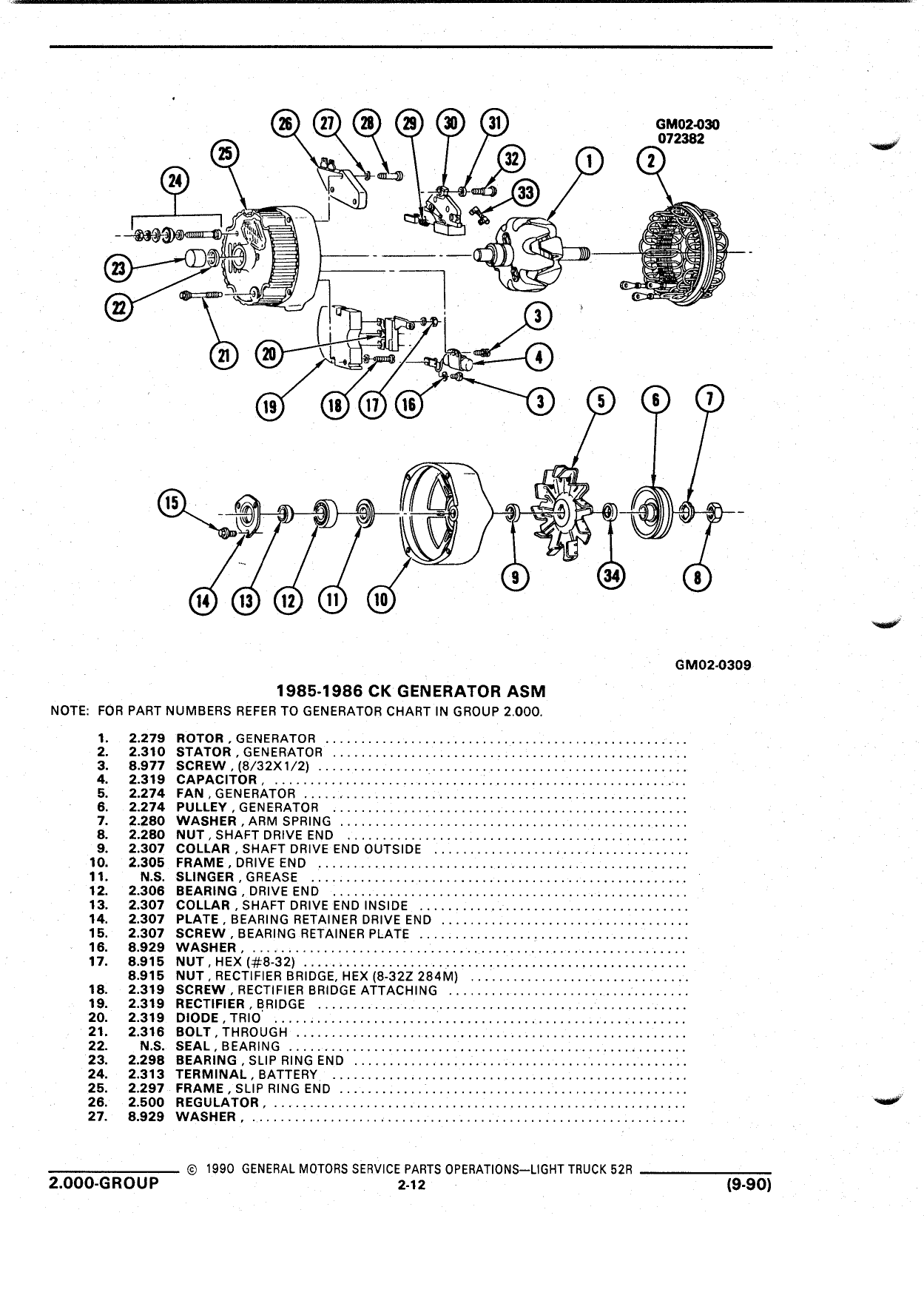

G Q G G GD D gy G 3 R mg 0 0 M 5 A T Q a 5 v f QQ DVI 0 E2 II 3 0 jg L a I x rr Q wm 5M A f 5 5 Wn 9 A qw A 5 W D ul GM02 0309 1985 1986 CK GENERATOR ASM NOTE FOR PART NUMBERS REFER T0 GENERATOR CHART IN GROUP 2 000 1 2 279 ROTOR GENERATOR 2 2 310 STATOR GENERATOR 3 8 977 SCREW 8 32XI Z 4 2 319 CAPACITUR 5 2 274 FAN GENERATOR 6 2 274 PULLEV GENERATOR 7 2 280 WASHER ARM SPRING 8 2 2B0 NUT SHAFT DRIVE END 9 2 307 COLLAR SHAFT DRIVE END OUTSIDE I0 2 305 FRAME DRIVE END 1I N S SLINGER GREASE 12 2 306 BEARING DRIVE END 13 2 307 COLLAR SHAFT DRIVE END INSIDE 14 2 307 PLATE BEARING RETAINER DRIVE END 15 2 307 SCREW BEARING RETAINER PLATE 16 8 929 WASHER 17 8 915 NUT HEX 8 32 8 915 NUT RECTIFIER BRIDGE HEX 8 322 284M IB 2 319 SCREW RECTIFIER BRIDGE ATTACHING I9 2 319 RECTIFIER BRIDGE 20 2 319 DIODE TRIO 21 2 316 BOL I THROUGH 22 N S SEAL BEARING 23 2 298 BEARING SLIP RING END 24 2 313 TERMINAL BATTERY 25 2 297 FRAME SLIP RING END 26 2 500 REGULATOR 27 8 929 WASHER 1990 GENERAL MOTORS SERVICE PARTS OPERATIONS LIGHT TRUCK 52R 2 000 GROUP 2 12 9 90
