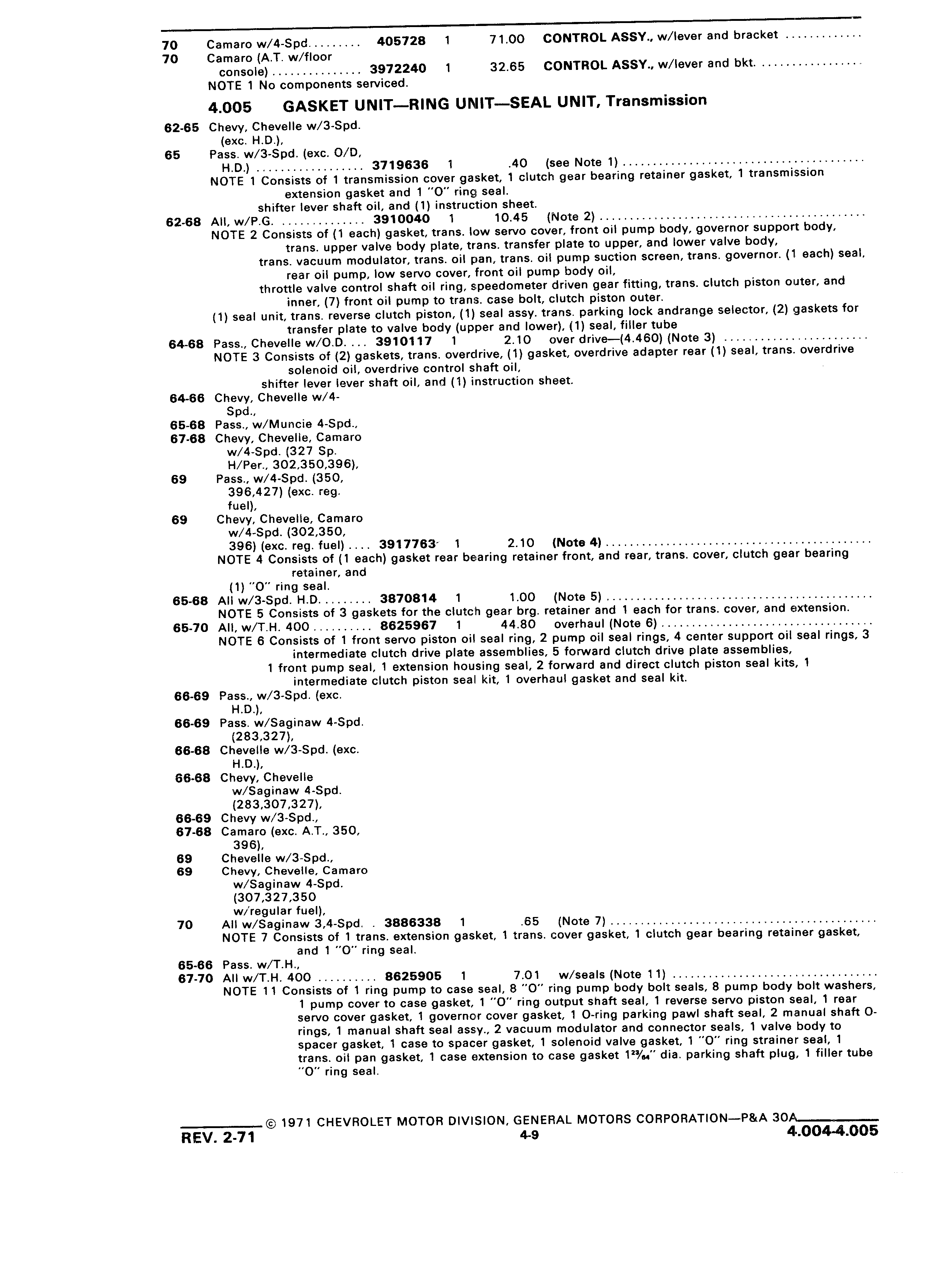

70 Camaro w 4 Spd 405728 1 71 00 CONTROL ASSY w lever and bracket r 70 Camaro A T w floor console 3972240 1 32 65 CONTROL ASSY w lever and bkt NOTE 1 No components serviced 4 005 GASKET UNIT RING U IT SEAL UNIT Transmission 62 65 Chevy Chevelle w 3 Spd exc H D 65 Pass w 3 Spd exc O D H D 3719636 1 40 see Note 1 NOTE 1 Consists of 1 transmission cover gasket 1 clutch gear bearing retainer gasket 1 transmission extension gasket and 1 O ring seal shifter lever shaft oil and 1 instruction sheet 62 68 All w P G 3910040 1 10 45 Note 2 NOTE 2 Consists of 1 each gasket trans low servo cover front oil pump body governor support body trans upper valve body plate trans transfer plate to upper and lower valve body trans vacuum modulator trans oil pan trans oil pump suction screen trans governor 1 each seal rear oil pump low servo cover front oil pump body oil throttle valve control shaft oil ring speedometer driven gear fitting trans clutch piston outer and inner 7 front oil pump to trans case bolt clutch piston outer 1 seal unit trans reverse clutch piston 1 seal assy trans parking lock andrange selector 2 gaskets for transfer plate to valve body upper and lower 1 seal filler tube 64 68 Pass Chevelle w 0 D 3910117 1 2 10 over drive 4 460 Note 3 NOTE 3 Consists of 2 gaskets trans overdrive 1 gasket overdrive adapter rear 1 seal trans overdrive solenoid oil overdrive control shaft oil shifter lever lever shaft oil and 1 instruction sheet 64 66 Chevy Chevelle w 4 Spd 65 68 Pass w Muncie 4 Spd 67 68 Chevy Chevelle Camaro w 4 Spd 327 Sp H Per 302 350 396 69 Pass w 4 Spd 350 396 427 exc reg fuel 69 Chevy Chevelle Camaro w 4 Spd 302 350 396 exc reg fuel 3917763 1 2 10 Note 4 NOTE 4 Consists of 1 each gasket rear bearing retainer front and rear trans cover clutch gear bearing retainer and 1 O ring seal 65 68 All w 3 Spd H D 3870814 1 1 00 Note 5 NOTE 5 Consists of 3 gaskets for the clutch gear brg retainer and 1 each for trans cover and extension 65 70 All w T H 400 8625967 1 44 80 overhaul Note 6 NOTE 6 Consists of 1 front servo piston oil seal ring 2 pump oil seal rings 4 center support oil seal rings 3 intermediate clutch drive plate assemblies 5 forward clutch drive plate assemblies 1 front pump seal 1 extension housing seal 2 forward and direct clutch piston seal kits 1 intermediate clutch piston seall kit 1 overhaul gasket and seal kit 66 69 Pass w 3 Spd exc H D 66 69 Pass w Saginaw 4 Spd 283 327 66 68 Chevelle w 3 Spd exc H D 66 68 Chevy Chevelle w Saginaw 4 Spd 283 307 327 66 69 Chevy w 3 Spd 67 68 Camaro exc A T 350 396 69 Chevelle w 3 Spd 69 Chevy Chevelle Camaro w Saginaw 4 Spd 307 327 35O w regular fuel 70 All w Saginaw 3 4 Spd 3886338 1 65 Note 7 NOTE 7 Consists of 1 trans extension gasket 1 trans cover gasket 1 clutch gear bearing retainer gasket and 1 O ring seal 65 66 Pass w T H 67 70 All w T H 400 8625905 1 7 01 w seals Note 11 NOTE 11 Consists of 1 ring pump to case seal 8 O ring pump body bolt seals 8 pump body bolt washers 1 pump cover to case gasket 1 O ring output shaft seal 1 reverse servo piston seal 1 rear servo cover gasket 1 governor cover gasket 1 O ring parking pawl shaft seal 2 manual shaft O rings 1 manual shaft seal assy 2 vacuum modulator and connector seals 1 valve body to spacer gasket 1 case to spacer gasket 1 solenoid valve gasket 1 O ring strainer seal 1 trans oil pan gasket 1 case extension to case gasket 1 V dia parking shaft plug 1 filler tube O ring seal j 1 1971 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATlON P A 30A REV 2 71 4 9 4 004 4 005
