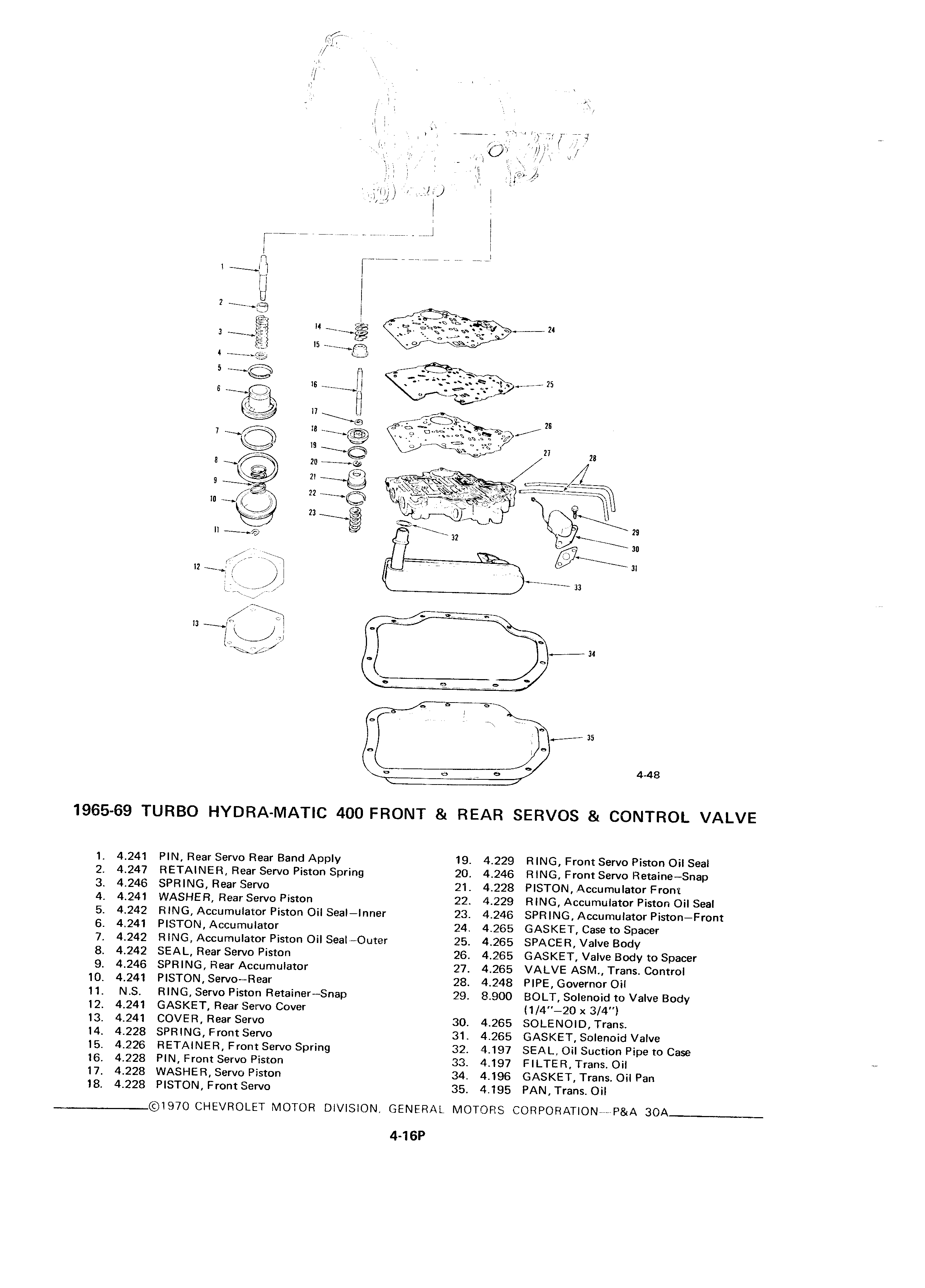

if L Ws NQ yy In I is v I ly V i Ui lj II J 1 I I I I For e as ccrrcr A I I I I Z E I 3 I4 Z4 I5 ls i 2 i 4 qgf I Ji e Z ls R O 25 U is II e 7 E g 2 uf I G Q 2 Q Se J zi 5 2 Q I rg 4 rs QC az 29 an an A U M 2 J JI Ii r 3 KX 4 T I H M B T j 1J r 2 4 34 Q I Y as 6 Q 4 48 1965 69 TURBO HYDRA MATIC 400 FRONT REAR SERVOS CONTROL VALVE 1 4 241 PIN Rear Servo Rear Band Apply 19 4 229 RING Front Servo Piston Oil Seal 2 4 247 RETAINER Rear Servo Piston Spring 20 4 246 RING Front Servo Retaine Snap 3 4 246 SPRING Rear Servo 21 4 228 PISTON Accumulator Front 4 4 241 WASHER Rear Servo Piston 22 4 229 RING Accumulator Piston Oil Seal 5 4 242 RING Accumulator Piston Oil SeaI Inner 23 4 246 SPRING Accumulator Piston Front 6 4 241 PISTON Accumulator 24 4 265 GASKET Case to Spacer 7 4 242 RING Accumulator Piston Oil Seal Outer 25 4 265 SPACER Valve Body 8 4 242 SEAL Rear Servo Piston 26 4 265 GASKET Valve Body to Spacer 9 4 246 SPRING Rear Accumulator 27 4 265 VALVE ASM Trans Control 10 4 241 PISTON Servo Rear 28 4 248 PIPE Governor Oil 11 N S RING Servo Piston Retainer Snap 29 8 900 BOLT Solenoid to Valve Body 12 4 241 GASKET Rear Servo Cover 1 4 20 x 3 4 I 13 4 241 COVER Rear Servo 30 4 265 SOLENOID Trans 14 4 228 SPRING Front Servo 31 4 265 GASKET Solenoid Valve I5 4 226 RETAINER Front Servo Spring 32 4 197 SEAL Oil Suction Pipe to Case 16 4 228 PIN Front Servo Piston 33 4 197 FILTER Trans Oil 17 4 228 WASHER Servo Piston 34 4 196 GASKET Trans Oil Pan 18 4 228 PISTON Front Servo 35 4 195 PAN Trans Oil l97O CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 3OA 4 16P
