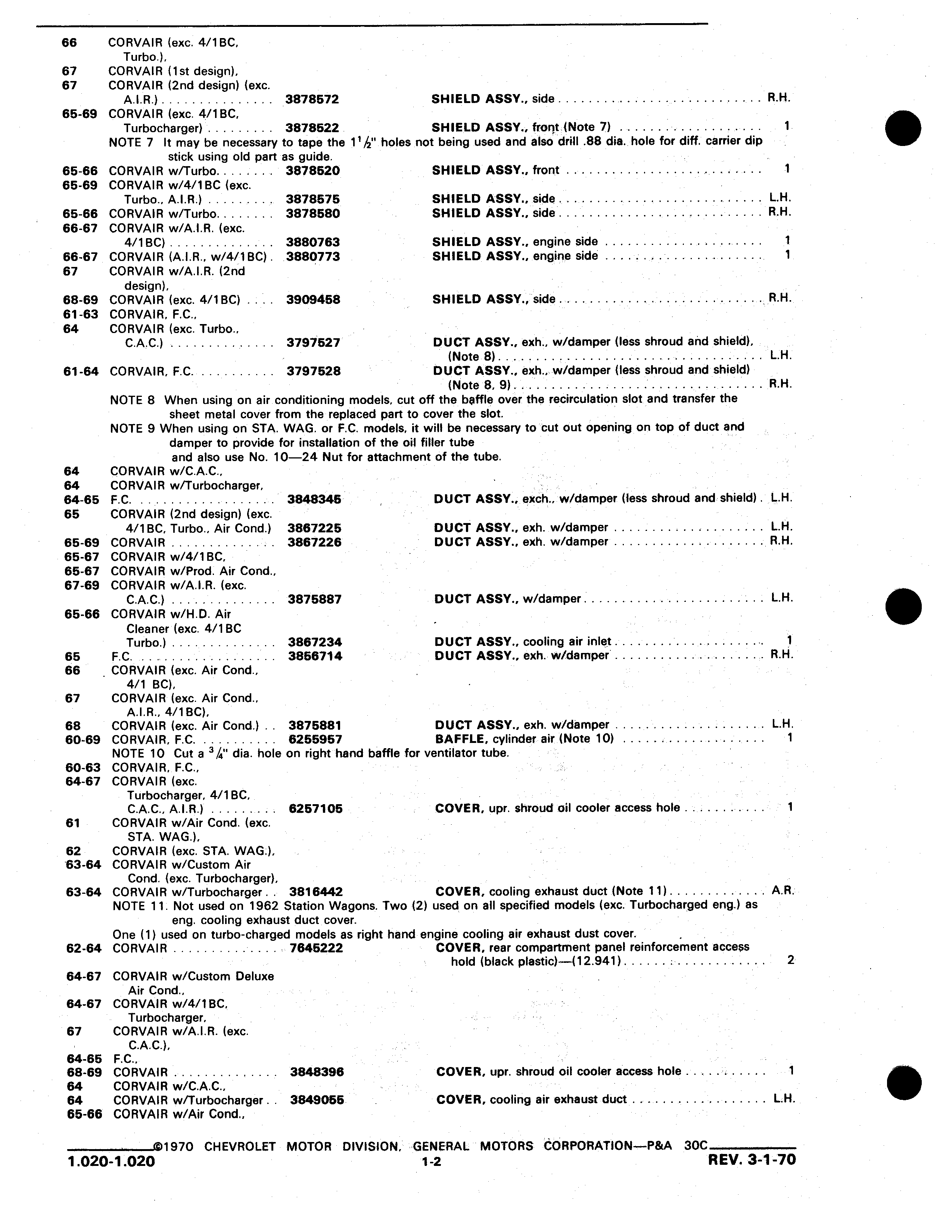

66 CORVAIR exc 4 1BC Turbo 67 CORVAIR 1st design 67 CORVAIR 2nd design exc A l R 3878572 SHIELD ASSY side R H 65 69 CORVAIR exc 4 1 BC Turbocharger 3878522 SHIELD ASSY fror t Note 7 1 NOTE 7 lt may be necessary to tape the 1 A holes not being used and also drill 88 dia hole for diff carrier dip stick using old part as guide 65 66 CORVAIR w Turbo 3878520 SHIELD ASSY front 1 65 69 CORVAIR w 4 1BC exc Turbo A l R 3878575 SHIELD ASSY side L H 65 66 CORVAIR w Turbo 3878580 SHIELD ASSY side R H 66 67 CORVAIR w A I R exc 4 1 BC 3880763 SHIELD ASSY engine side 1 66 67 CORVAIR A l R w 4 1 BC 3880773 SHIELD ASSY engine side 1 67 CORVAIR w A I R 2nd design V 68 69 CORVAIR exc 4 1BC 3909458 SHIELD ASSY side VR H 61 63 CORVAIR F C 64 CORVAIR exc Turbo C A C 3797527 DUCT ASSY exh w damper less shroud and shield V Note 8 L H 61 64 CORVAIR F C 3797528 DUCT ASSY exh w damper less shroud and shield Note 8 9 R H NOTE 8 When using on air conditioning models cut off the baffle over the recirculation slot and transfer the sheet metal cover from the replaced part to cover the slot V NOTE 9 When using on STA WAG or F C models it will be necessary to cut out opening on top of duct and damper to provide for installation of the oil filler tube and also use No 10 24 Nut for attachment of the tube 64 CORVAIR w C A C V 64 CORVAIR w Turbocharger V 64 65 F C 3848346 DUCT ASSY exch w damper less shroud and shield L H 65 CORVAIR 2nd design exc A 4 1 BC Turbo Air Cond 3867225 DUCT ASSY exh w damper L H 65 69 CORVAIR 3867226 V DUCT ASSY exh w damper R H 65 67 CORVAIR w 4 1BC 65 67 CORVAIR w Prod Air Cond 67 69 CORVAIR w A I R exc C A C 3875887 DUCT ASSY w damper L H 65 66 CORVAIR w H D Air Cleaner exc 4 1 BC Turbo 3867234 DUCT ASSY cooling air inlet 1 65 F C 3856714 DUCT ASSY exh w damper R H 66 CORVAIR exc Air Cond 4 1 BC 67 CORVAIR exc Air Cond A I R 4 1BC 68 CORVAIR exc Air Cond 3875881 DUCT ASSY exh w damper L H 60 69 CORVAIR F C 6255957 BAFFLE cylinder air Note 10 1 NOTE 10 Cut a SA dia hole on right hand baffle for ventilator tube 60 63 CORVAIR F C V V 64 67 CORVAIR exc Turbocharger 4 1 BC C A C A I R 6257105 COVER upr shroud oil cooler access hole 1 61 CORVAIR w Air Cond exc STA WAG 62 CORVAIR exc STA WAG 63 64 CORVAIR w Custom Air Cond exc Turbocharger 63 64 CORVAIR w Turbocharger 3816442 COVER cooling exhaust duct Note 11 A R NOTE 11 Not used on 1962 Station Wagons Two 2 used on all specified models exc Turbocharged eng as eng cooling exhaust duct cover One 1 used on turbo charged models as right hand engine cooling air exhaust dust cover 62 64 CORVAIR 7645222 COVER rear compartment panel reinforcement access hold black plastic 12 941 2 64 67 CORVAIR w Custom Deluxe I Air Cond 64 67 CORVAIR w 4 1BC Turbocharger 67 CORVAIR w A I R exc A i C A C 64 65 F C 68 69 CORVAIR 3848396 COVER upr shroud oil cooler access hole V 1 64 CORVAIR w C A C O 64 CORVAIR w Turbocharger 3849055 COVER cooling air exhaust duct L H 65 66 CORVAIR w Air Cond 197O CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 30C 1 020 1 020 1 2 REV 3 1 70
