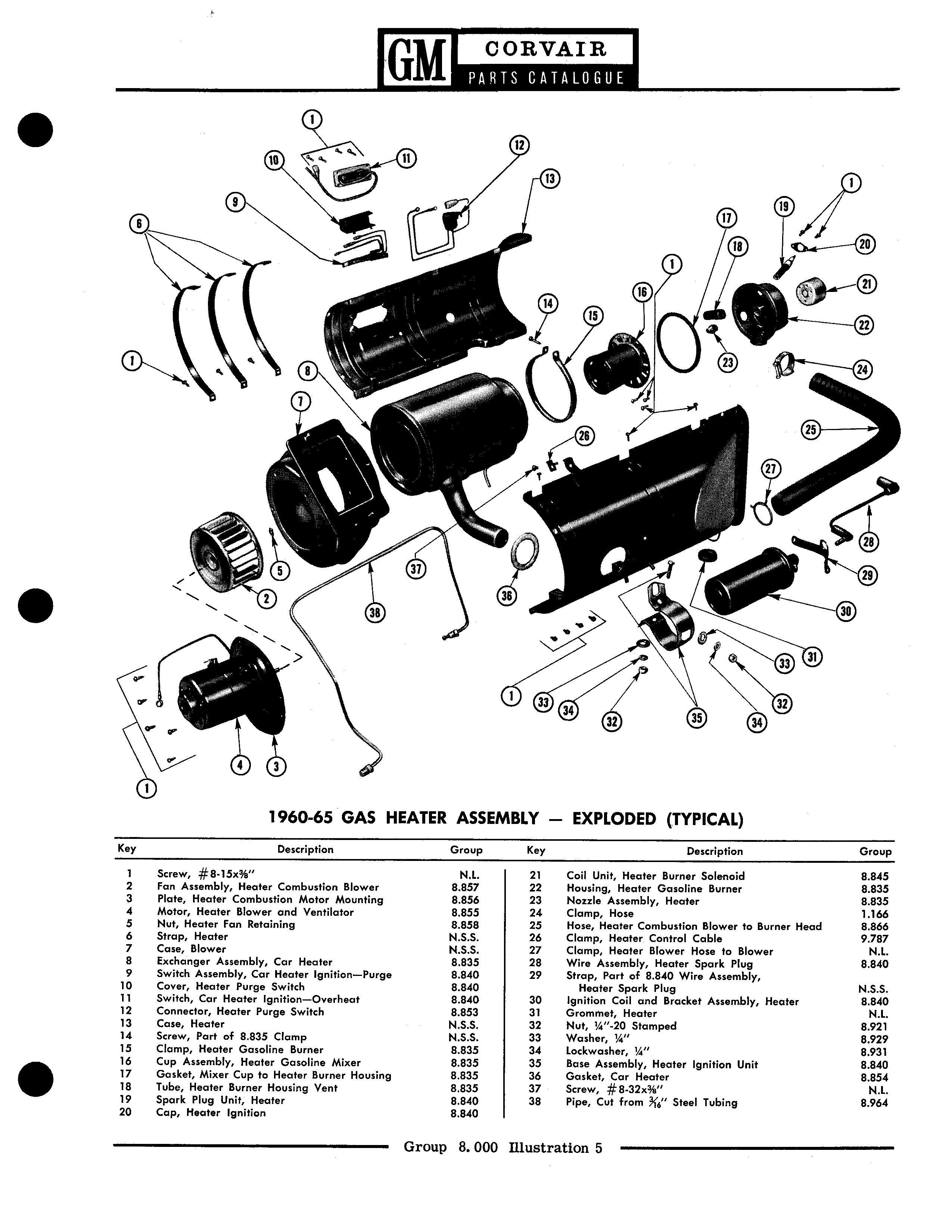

GM CORVAIR 12 lo Z 13 1 19 11 18 20 1 16 21 14 15 22 rY a 8 23 24 1 26 25 21 j 4 28 5 37 29 36 38 r 33 31 1 33 32 34 3y 35 34 4 3 1 s 1960 65 GAS HEATER ASSEMBLY EXPLODED TYPICAL Key Description Group Key Description Group 1 Screw 8 75x N L 21 Coil Unit Heater Burner Solenoid 8 845 2 Fan Assembly Heater Combustion Blower 8 857 22 Housing Heater Gasoline Burner 8 835 3 Plate Heater Combustion Motor Mounting 8 856 23 Nozzle Assembly Heater 8 835 4 Motor Heater Blower and Ventilator 8 855 24 Clamp Hose 1 166 5 Nut Heater Fan Retaining 8 858 25 Hose Heater Combustion Blower to Burner Head 8 866 6 Strap Heater N S S 26 Clamp Heater Control Cable 9 787 7 Case Blower N S S 27 Clamp Heater Blower Hose to Blower N L 8 Exchanger Assembly Car Heater 8 835 28 Wire Assembly Heater Spark Plug 8 840 9 Switch Assembly Car Heater Ignition Purge 8 840 29 Strap Part of 8 840 Wire Assembly 10 Cover Heater Purge Switch 8 840 Heater Spark Plug N S S 11 Switch Car Heater Ignition Overheat 8 840 30 Ignition Coil and Bracket Assembly Heater 8 840 12 Connector Heater Purge Switch 8 853 31 Grommet Heater N L 13 Case Heater N S S 32 Nut 1 4 20 Stamped 8 921 14 Screw Part of 8 835 Clamp N S S 33 Washer 1 4 8 929 15 Clamp Heater Gasoline Burner 8 835 34 Lockwasher 1 4 8 931 16 Cup Assembly Heater Gasoline Mixer 8 835 35 Base Assembly Heater Ignition Unit 8 840 17 Gasket Mixer Cup to Heater Burner Housing 8 835 36 Gasket Car Heater 8 854 18 Tube Heater Burner Housing Vent 8 835 37 Screw 8 32x N L 19 Spark Plug Unit Heater 8 840 38 Pipe Cut from N6 Steel Tubing 8 964 20 Cap Neater Ignition 8 840
