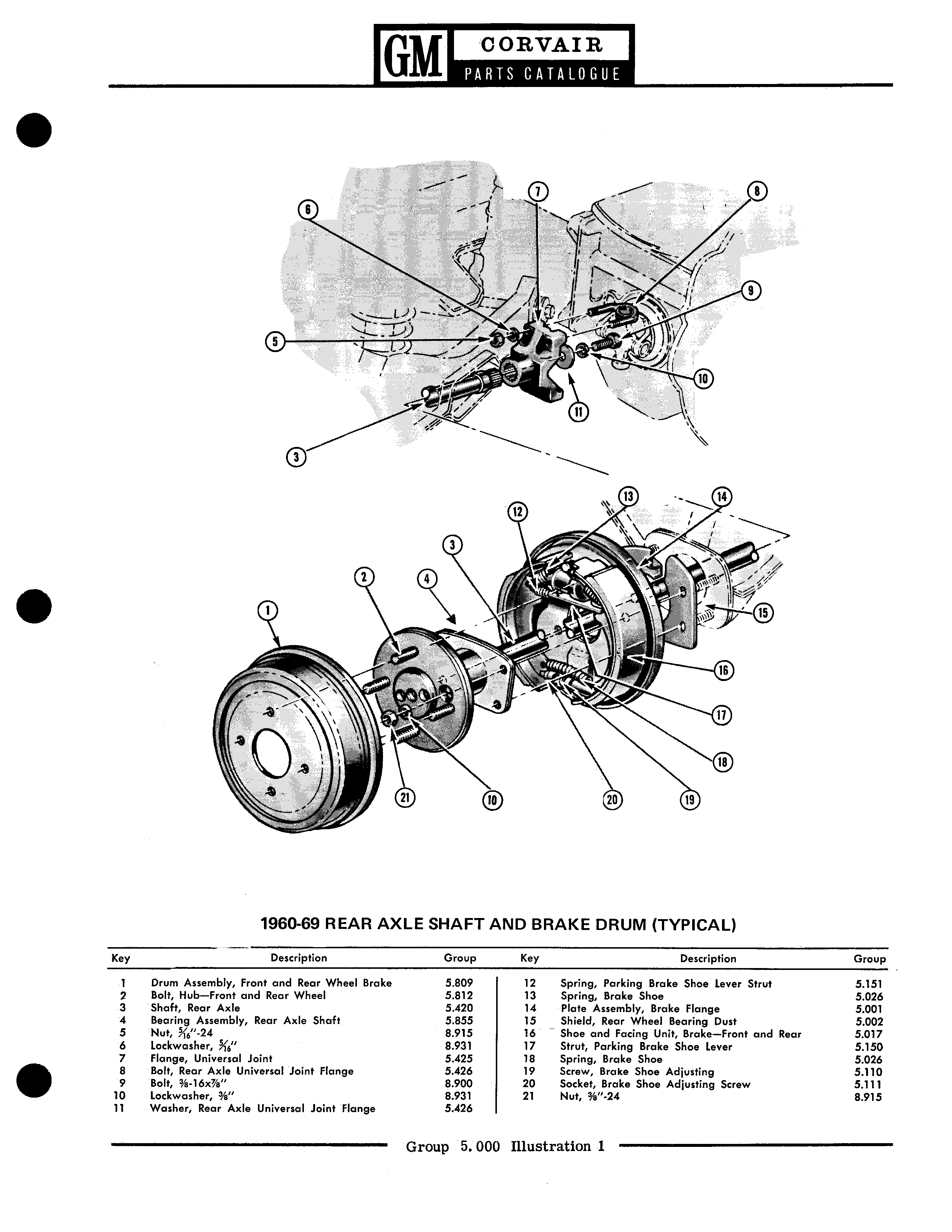

m G C ORVAI R jUl i 7 r 5 Q 10 3 t 14 3 15 1 16 11 i 18 21 10 20 19 1960 69 REAR AXLE SHAFT AND BRAKE DRUM TYPICAL Key Description Group Key Description Group 1 Drum Assembly Front and Rear Wheel Brake 5 809 12 Spring Parking Brake Shoe Lever Strut 5 151 2 Bolt Hub Front and Rear Wheel 5 812 13 Spring Brake Shoe 5 026 3 Shaft Rear Axle 5 420 14 Plate Assembly Brake Flange 5 001 4 Bearing Assembly Rear Axle Shaft 5 855 15 Shield Rear Wheel Bearing Dust 5 002 5 Nut Y16 24 8 915 16 Shoe and Facing Unit Brake Front and Rear 5 017 6 Lockwasher 8 931 17 Strut Parking Brake Shoe Lever 5 150 7 Flange Universal Joint 5 425 18 Spring Brake Shoe 5 026 8 Bolt Rear Axle Universal Joint Flange 5 426 19 Screw Brake Shoe Adjusting 5 110 9 Bolt 3 a lbx Ye 8 900 20 Socket Brake Shoe Adjusting Screw 5 111 10 Lockwasher s s 8 931 21 Nut 3 s 24 8 915 11 Washer Rear Axle Universal Joint Flange 5 426
