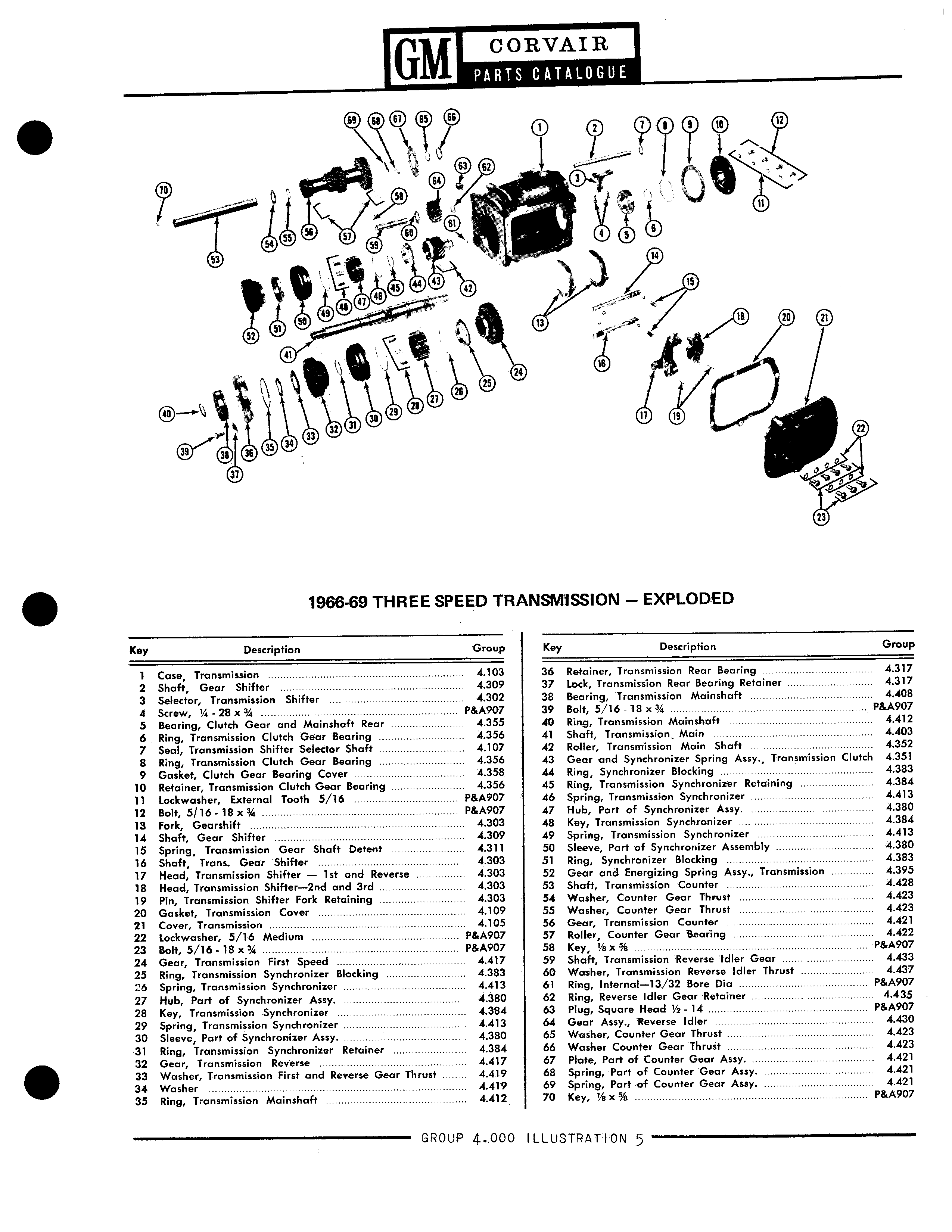

CORVAiR GM 2211 I1 11 lab b9 68 61 65 66 1 B 9 10 12 I 1 63 62 la sa 3 a 56 fl 58 60 61 55 51 59 53 14 43 42 15 t 46 sF 41 49 18 ZO 21 il 13 52 41 14 os ss 11 40 i y i 30 Z9 11 19 26 33 31 31 21 39 36 36 35 34 31 0 0 o 23 1966 69 THREE SPEED TRANSMISSION EXPLODED Key Description Group Key Description Grou 1 Case Transmission 4 103 36 Retainer Transmission Rear Bearing 4 31 2 Shaft Gear Shifter 4 309 37 Lock Transmission Rear Bearing Retainer 4 31 3 Selector Transmission Shifter 4 302 38 Bearing Transmission Mainshaft 4 40 d Screw 1 4 28x34 P A907 39 Bolt 5 16 18 x 3 a P A90 5 Bearing Clutch Gear and Mainshaft Rear 4 355 40 Ring Transmission Mainshaft 4 41 6 Ring Transmission Clutch Gear Bearing 4 356 41 Shaft Transmission Main 4 40 7 Seal Transmission Shifter Selector Shaft 4 107 42 Roller Transmission Main Shaft 4 35 8 Ring Transmission Clutch Gear Bearing 4 356 43 Gear and Synchronizer Spring Assy Transmission Clutch 4 35 9 Gasket Clutch Gear Bearing Cover 4 358 44 Ring Synchronizer Blocking 4 38 10 Retainer Transmission Clutch Gear Bearing 4 356 45 Ring Transmission Synchronizer Retaining 4 38 11 Lockwasher External Tooth 5 16 P A907 46 Spring Transmission Synchronizer 4 41 12 Bolt 5116 18 x 3A P8 A907 47 Hub Part of Synchronizer Assy 4 38 13 Fork Gearshift 4 303 48 Key Transmission Synchronizer 4 38 14 Shaft Gear Shifter 4 309 49 Spring Transmission Synchronizer 4 41 15 Spring Transmission Gear Shaft Deteot 4 311 50 Sleeve Part of Synchronizer Assembly 4 38 16 Shaft Trans Gear Shifter 4 303 51 Ring Synchronizer Blocking 4 38 17 Head Transmission Shifter lst and Reverse 4 303 52 Gear and Energizing Spring Assy Transmission 4 39 18 Head Transmission Shifter 2nd and 3rd 4 303 53 Shaft Transmission Counter 4 42 19 Pin Transmission Shifter Fork Retaining 4 303 54 Washer Counter Gear Thrust 4 42 20 Gasket Transmission Cover 4 109 55 Washer Counter Gear Thrust 4 42 21 Cover Transmission 4 105 56 Gear Transmission Counter 4 42 22 Lockwasher 5 16 Medium P A907 57 Roller Counter Gear Bearing 4 42 23 Bolt 5 16 18 x 3 a P A907 58 Key e x 3 e P A90 24 Gear Transmission First Speed 4 417 59 Shaft Transmission Reverse Idler Gear 4 43 25 Ring Transmission Synchronizer Blocking 4 383 60 Washer Transmission Reverse Idler Thrust 4 43 26 Spring Transmission Synchronizer 4 413 61 Ring Internal 13 32 Bore Dia P A90 27 Hub Part of Synchronizer Assy 4 380 62 Ring Reverse Idler Gear Retainer 4 43 28 Key Transmission Synchronizer 4 384 63 Plug Square Head Yz 14 PBA9l 29 Spring Transmission Synchronizer 4 413 64 Gear Assy Reverse Idler 4 43 30 Sleeve Part of Synchronizer Assy 4 380 65 Washer Counter Gear Thrust 4 42 31 Ring Transmission Synchronizer Retainer 4 384 bb Washer Counter Gear Thrust 4 42 32 Gear Transmission Reverse 4 417 67 Plate Part of Counter Gear Assy 4 42 33 Washer Transmission First and Reverse Gear Thrust 4 419 68 Spring Part of Counter Gear As3y 4 42 34 Washer 4 419 69 Spring Part of Counter Gear Assy 4 42 35 Ring Transmission Mainshaft 4 412 70 Key Is x s s P A9C nnnrw n nnn m 1 wnrnwr wnni c
