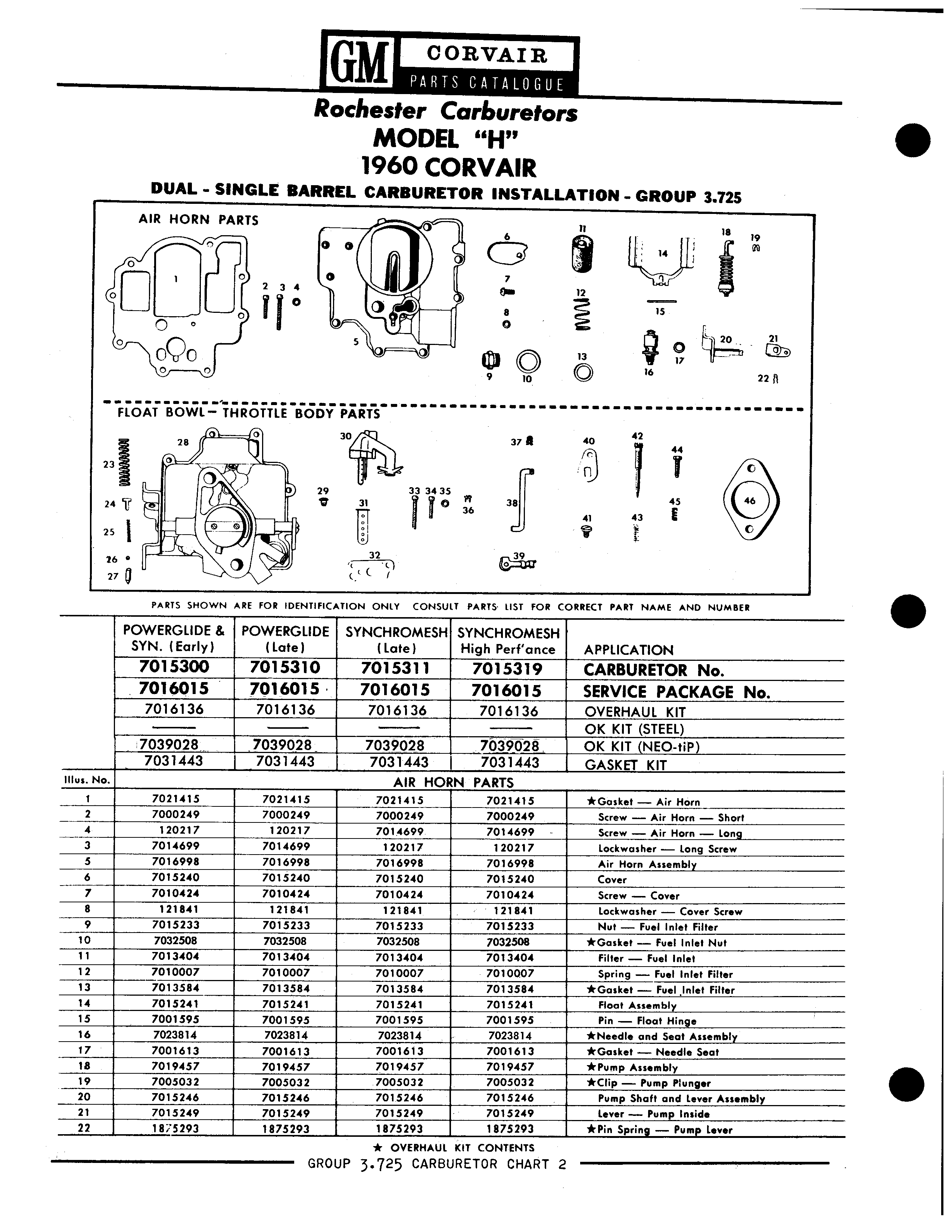

GM c oRVAi R w v Rochester Carburetors MODEL H 1960 CORVAIR DUAL SINGLE BARREL CARBURETOR INSTALLATION GROUP 3 725 AIR HORN PARTS 0 16 11 8 19 n O O 14 i QO 4 o O 7 1 2 3 4 Q 12 O O O O 8 15 I 7 20 21 oQ0 5 0 0 13 17 o 9 10 O 16 22 A FLOAT BOWL THROTTLE BODY PARTS 28 30 rl 37 11 40 42 44 23 0 G i 29 33 3435 24 31 36 38 45 46 41 43 25 oi G 32 26 O 1 c C o 27 PARTS SHOWN ARE FOR IDENTIFICATION ONLY CONSULT PARTS LIST FOR CORRECT PART NAME AND NUMBER POWERGLIDE 8 POWERGLIDE SYNCHROMESH SYNCHROMESH SYN Early Late Late High Perf once APPLICATION 7015300 7015310 7015311 7015319 CARBURETOR No 7016015 7016015 7016015 7016015 SERVICE PACKAGE No 7016136 7016136 7016136 7016136 OVERHAUL KIT OK KIT STEEL 7039028 7039028 7039028 7039028 OK KIT NEO 613 7031443 7031443 1 7031443 7031443 GASKET KIT Illus No AIR HORN PARTS 1 7021415 7021415 7021415 7021415 Gasket Air Horn 2 7000249 7000249 7000249 7000249 Screw Air Horn Short 4 120217 120217 7014699 7014699 Screw Air Horn Long 3 7014699 7014699 120217 120217 Lockwasher Long Screw 5 7016998 7016998 7016998 7016998 Air Horn Assembly 6 7015240 7015240 7015240 7015240 Cover 7 7010424 7010424 7010424 7010424 Screw Cover 8 121841 121841 121841 121841 Lockwasher Cover Screw 9 7015233 7015233 7015233 7015233 Nut Fuel Inlet Filter 10 7032508 7032508 7032508 7032508 Gasket Fuel Inlet Nut 11 7013404 7013404 7013404 7013404 Filter Fuel Inlet 12 7010007 7010007 7010007 7010007 Spring Fuel Inlet Filter 13 7013584 7013584 7013584 7013584 Gasket Fuel Inlet Filter 14 7015241 7015241 7015241 7015241 Float Assembly 15 7001595 7001595 7001595 7001595 Pin Float Hinge 16 7023814 7023814 7023814 7023814 Needle and Seat Assembly 17 7001613 7001613 7001613 7001613 Gasket Needle Seat 18 7019457 7019457 7019457 7019457 Pump Assembly 19 7005032 7005032 7005032 7005032 Clip Pump Plunger 20 7015246 7015246 7015246 7015246 Pump Shaft and Lever Assembly 21 7015249 7015249 7015249 7015249 Lever Pump Inside 22 1875293 1875293 1875293 1875293 Pin Spring Pump lever
