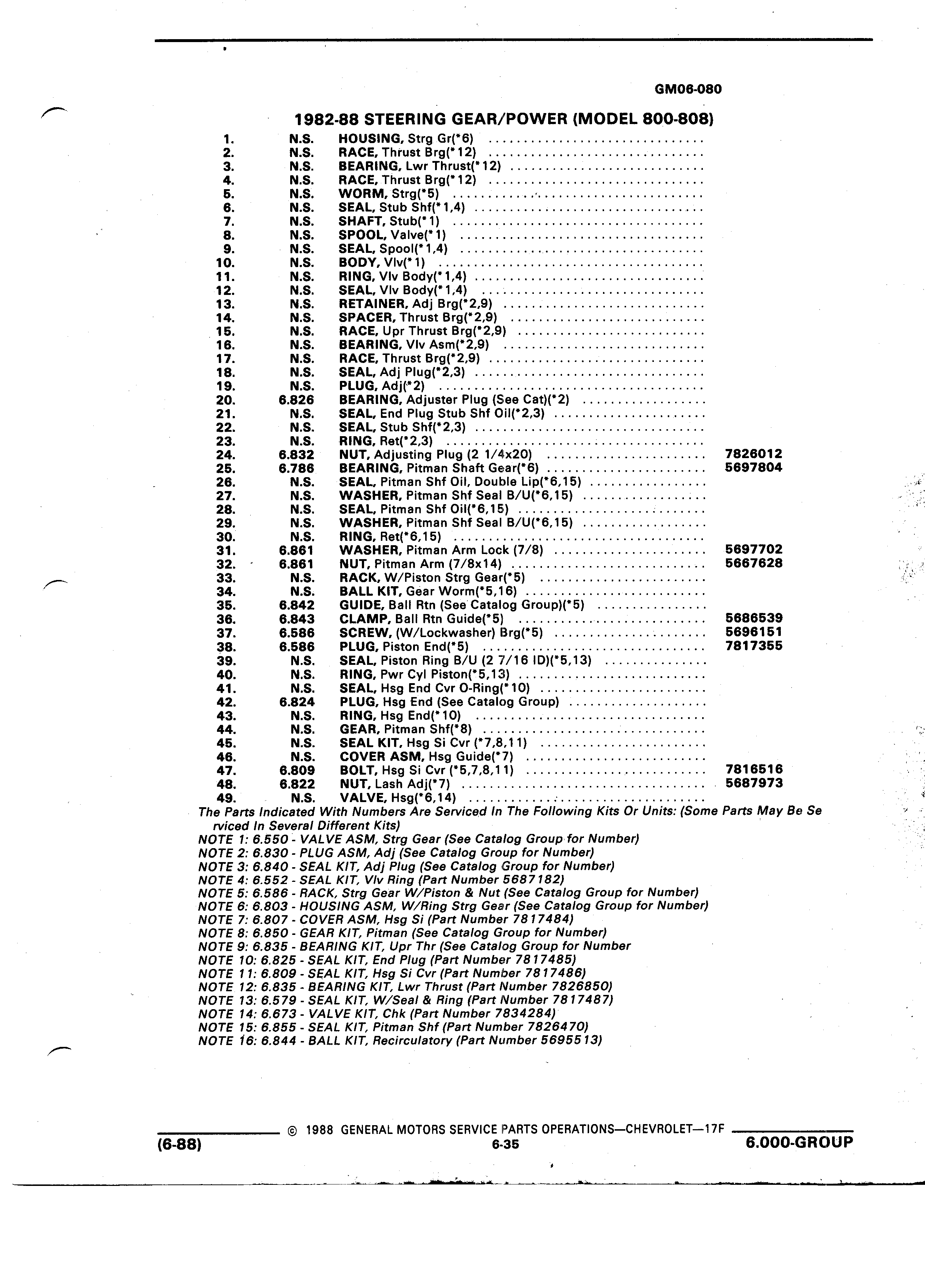

GM08 080 I 1982 88 STEERING GEAR POWER MODEL 800 808 1 N S HOUSING Strg Gr 6 2 N S RACE Thrust Brg 12 3 N S BEARING Lwr Thrust 12 4 N S RACE Thrust Brg 12 5 N S WORM Strg 5 6 N S SEAL Stub Shf 1 4 7 N S SHAFT Stub 1 8 N S SPOOL VaIve 1 9 N S SEAL Sp0o 1 4 10 N S BODY V v 1 11 N S RING Vlv Body 1 4 12 N S SEAL Vlv Body 1 4 13 N S RETAINER Adj Brg 2 9 14 N S SPACER Thrust Brg 2 9 V 15 N S RACE Upr Thrust Brg 2 9 16 N S BEARING Vlv Asm 2 9 17 N S RACE Thrust Brg 2 9 18 N S SEAL Adj P ug 2 3 19 N S PLUG Adj 2 20 6 826 BEARING Adjuster Plug Slee Cat 2 21 N S SEAL End Plug Stub Shf Oil 2 3 22 N S SEAL Stub Shf 2 3 23 N S RING Ret 2 3 24 6 832 NUT Adjusting Plug 2 1 4lx20 7826012 25 6 786 BEARING Pitman Shaft Ge ar 6 5697804 4 26 N S SEAL Pitman Shf Oil Double Lip 6 15 27 N S WASHER Pitman Shf Seal B U 6 15 28 N S SEAL Pitman Shf OiI 6 15 I 29 N S WASHER Pitman Shf Seal B U 6 15 I V 30 N S RING Ret 6 15 31 6 861 WASHER Pitman Arm Lock 7 8 5697702 32 6 861 NUT Pitman Arm 7 8x14 5667628 y 33 N S RACK W Piston Strg Gear 5 H 34 N S BALL KIT Gear Worm 5 16 35 6 842 GUIDE Ball Rtn See Catal 0g Gr0up 5 36 6 843 CLAMP Ball Rtn Guide 5 5686539 37 6 586 SCREW W Lockwasher I3rg 5 5696151 38 6 586 PLUG Piston End 5 7817355 39 N S SEAL Piston Ring B U 2 7 16 lD 5 13 40 N S RING Pwr Cyl Piston 5 1El 41 N S SEAL Hsg End Cvr O Ring 10 42 6 824 PLUG Hsg End See Catalog Group 43 N S RING Hsg End 10 44 N S GEAR Pitman Shf 8 S 45 N S SEAL KIT Hsg Si Cvr 7 8 11 46 N S COVER ASM Hsg Guide 7 I 47 6 809 BOLT Hsg Si Cvr 5 7 8 1 1 7816516 i 4 48 6 822 NUT Lash Adj 7 5687973 49 N S VALVE Hsg 6 14 l The Parts Indicated With Numbers Are Serviced In The Following Kits Or Units Some Parts May Be Se rviced In Several Different Kits NOTE 1 6 550 VALVE ASM Strg Gear See Catalog Grouptfor Number NOTE 2 6 830 PLUG ASM Adj See Catalog Group for Number NOTE 3 6 840 SEAL KIT Adj Plug See Catalog Group for Number NOTE 4 6 552 SEAL KIT Vlv Ring Part Number 5687182 I NOTE 5 6 586 RACK Strg Gear W Piston Nut See Catalog Group for Number NOTE 6 6 803 HOUSING ASM W Ring Strg Gear See Catalog Group for Number NOTE 7 6 807 COVER ASM Hsg Si Part Number 7817484 NOTE 8 6 850 GEAR KIT Pitman See Catalog Group for Number NOTE 9 6 835 BEARING KIT Upr Thr See Catalog Group for Number NOTE 10 6 825 SEAL KIT End Plug Part Number 7817485 NOTE 11 6 809 SEAL KIT Hsg Si Cvr Part Numlber 7817486 NOTE 12 6 835 BEARING KIT Lwr Thrust Part IVumber 7826850 NOTE 13 6 579 SEAL KIT W Seal Ring Part I Iumber 7817487 NOTE 14 6 673 VALVE KIT Chk Part Number 7834284 4 NOTE 15 6 855 SEAL KIT Pitman Shf Part Number 78264 70 NOTE 16 6 844 BALL KIT Recirculatory Part Number 5695513 j1 1988 GENERAL MOTORS SERVICE IPARTS OPERAT ONS CHEVROLET l7F 6 88 e as 6 000 GROUP 4 4 a r l I
