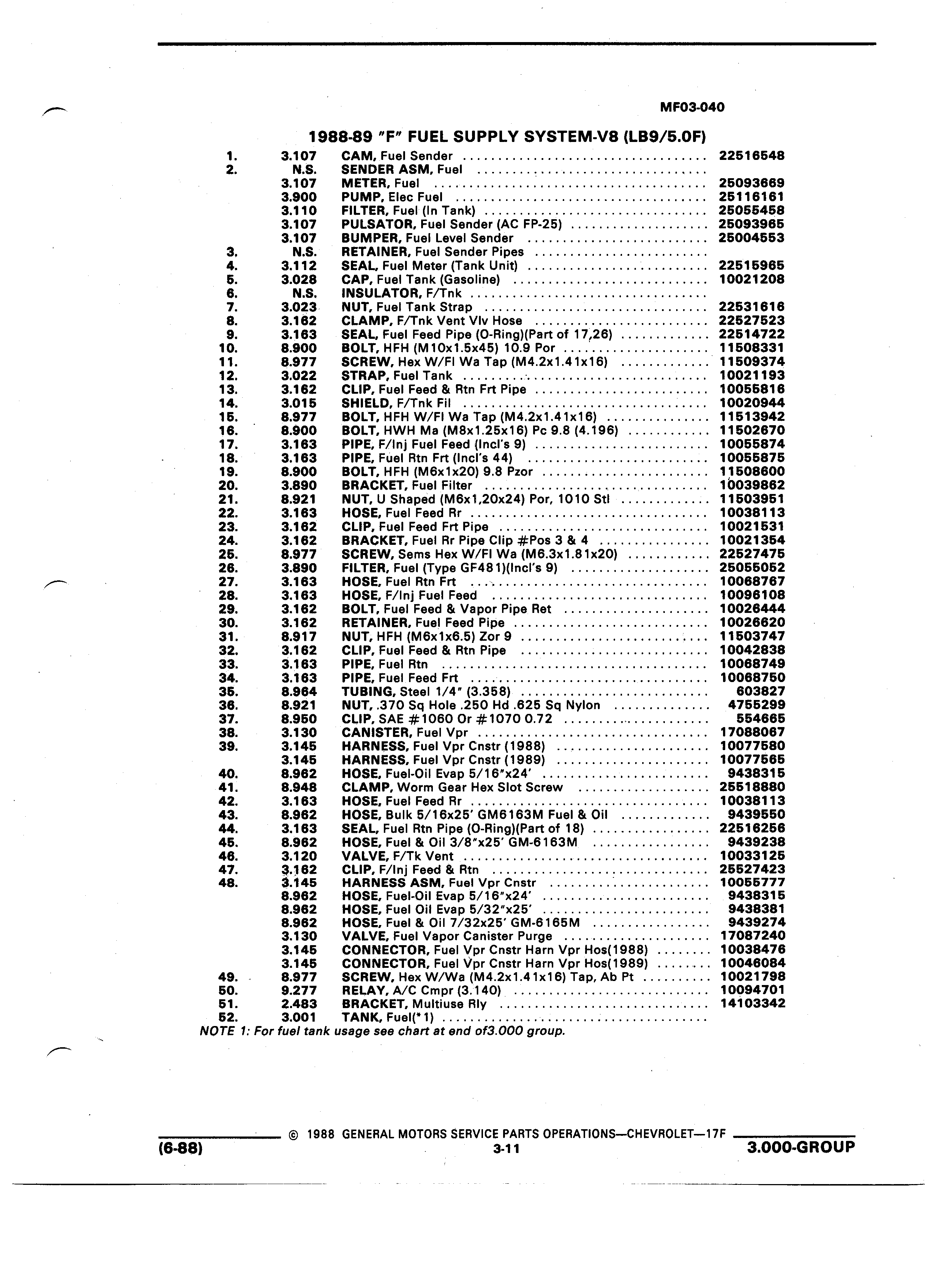

MF03 040 1988 89 F FUEL SUPPLY SYSTEM V8 LB9 5 0F 1 3 107 CAM Fuel Sender 22516548 2 N S SENDER ASM Fuel 3 107 METER Fuel 25093669 3 900 PUMP Elec Fuel 25116161 3 110 FILTER Fuel In Tank 25055458 3 107 PULSATOR Fuel Sender AC FP 25 25093965 3 107 BUMPER Fuel Level Sender 25004553 l 3 N S RETAINER Fuel Sender Pipes 4 3 112 SEAL Fuel Meter Tank Unit 22515965 5 3 028 CAP Fuel Tank Gasoline 10021208 6 N S INSULATOR F Tnk 7 3 023 NUT Fuel Tank Strap 22531616 8 3 162 CLAMP F Tnk Vent Vlv Hose 22527523 9 3 163 SEAL Fuel Feed Pipe O Ring Pert of 17 26 22514722 10 8 900 BOLT HFH M10x1 5x45 10 9 Por 11508331 11 8 977 SCREW Hex W FI Wa Tap M4 2x1 41x16 11509374 12 3 022 STRAP Fuel Tank 10021193 13 3 162 CLIP Fuel Feed Rtn Frt Pipe 10055816 14 3 015 SHIELD F Tnk Fil 10020944 15 8 977 BOLT HFH W Fl Wa Tap M4 2x1 41x16 11513942 16 8 900 BOLT HWH Ma M8x1 25x16 Pc 9 8 4 196 11502670 17 3 163 PIPE F lnj Fuel Feed lncI s 9 10055874 18 3 163 PIPE Fuel Rtn Frt Incl s 44 10055875 19 8 900 BOLT HFH M6x1x20 9 8 Pzor 11508600 20 3 890 BRACKET Fuel Filter 1 0039862 A 21 8 921 NUT U Shaped M6x l 20x24 Por 1010 Stl 11503951 22 3 163 HOSE Fuel Feed Rr 10038113 23 3 162 CLIP Fuel Feed Frt Pipe 10021531 24 3 162 BRACKET Fuel Rr Pipe Clip Pos 3 4 10021354 25 8 977 SCREW Sems Hex W FI We M6 3x1 81x20 22527475 26 3 890 FILTER Fuel Type GF481 lncl s 9 25055052 27 3 163 HOSE Fuel Rtn Frt 10068767 28 3 163 HOSE F Inj Fuel Feed 10096108 29 3 162 BOLT Fuel Feed Vapor Pipe Ret 10026444 30 3 162 RETAINER Fuel Feed Pipe 10026620 l 31 8 917 NUT HFH M6x1x6 5 Zor 9 11503747 32 3 162 CLIP Fuel Feed Rtn Pipe 10042838 33 3 163 PIPE Fuel Rtn 10068749 34 3 163 PIPE Fuel Feed Frt 10068750 35 8 964 TUBING Steel 1 4 3 358 603827 36 8 921 NUT 370 Sq Hole 250 Hd 625 Sq Nylon 4755299 37 8 950 CLIP SAE 1060 Or 1070 0 72 554665 38 3 130 CANISTER Fuel Vpr 17088067 39 3 145 HARNESS Fuel Vpr Cnstr 1988 10077580 3 145 HARNESS Fuel Vpr Cnstr 1989 10077565 40 8 962 HOSE Fuel Oil Evap 5 16 x24 9438315 41 8 948 CLAMP Worm Gear Hex Slot Screw 25518880 42 3 163 HOSE Fuel Feed Rr 10038113 43 8 962 HOSE Bulk 5 16x25 GM6163M Fuel Oil 9439550 44 3 163 SEAL Fuel Rtn Pipe O Ring Part of 18 22516256 45 8 962 HOSE Fuel Oil 3 8 x25 GM 6163M 9439238 46 3 120 VALVE F Tk Vent 10033125 47 3 162 CLIP F Inj Feed Rtn 25527423 48 3 145 HARNESS ASM Fuel Vpr Cnstr 10055777 8 962 HOSE Fuel Oil Evap 5 16 x24 9438315 8 962 HOSE Fuel Oil Evap 5 32 x25 9438381 8 962 HOSE Fuel Oil 7 32x25 GM 6165M 9439274 3 130 VALVE Fuel Vapor Canister Purge 17087240 3 145 CONNECTOR Fuel Vpr Cnstr Harn Vpr Hos 1988 10038476 3 145 CONNECTOR Fuel Vpr Cnstr Harn Vpr Hos 1989 10046084 49 8 977 SCREW Hex W Wa M4 2x1 41x16 Tap Ab Pt 10021798 50 9 277 RELAY A C Cmpr 3 140 10094701 51 2 483 BRACKET Multiuse Rly 14103342 52 3 001 TANK Fue 1 NOTE 1 For fuel tank usage see chart at end of3 000 group 1988 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 17F 6 88 3 11 3 000 GROU P
