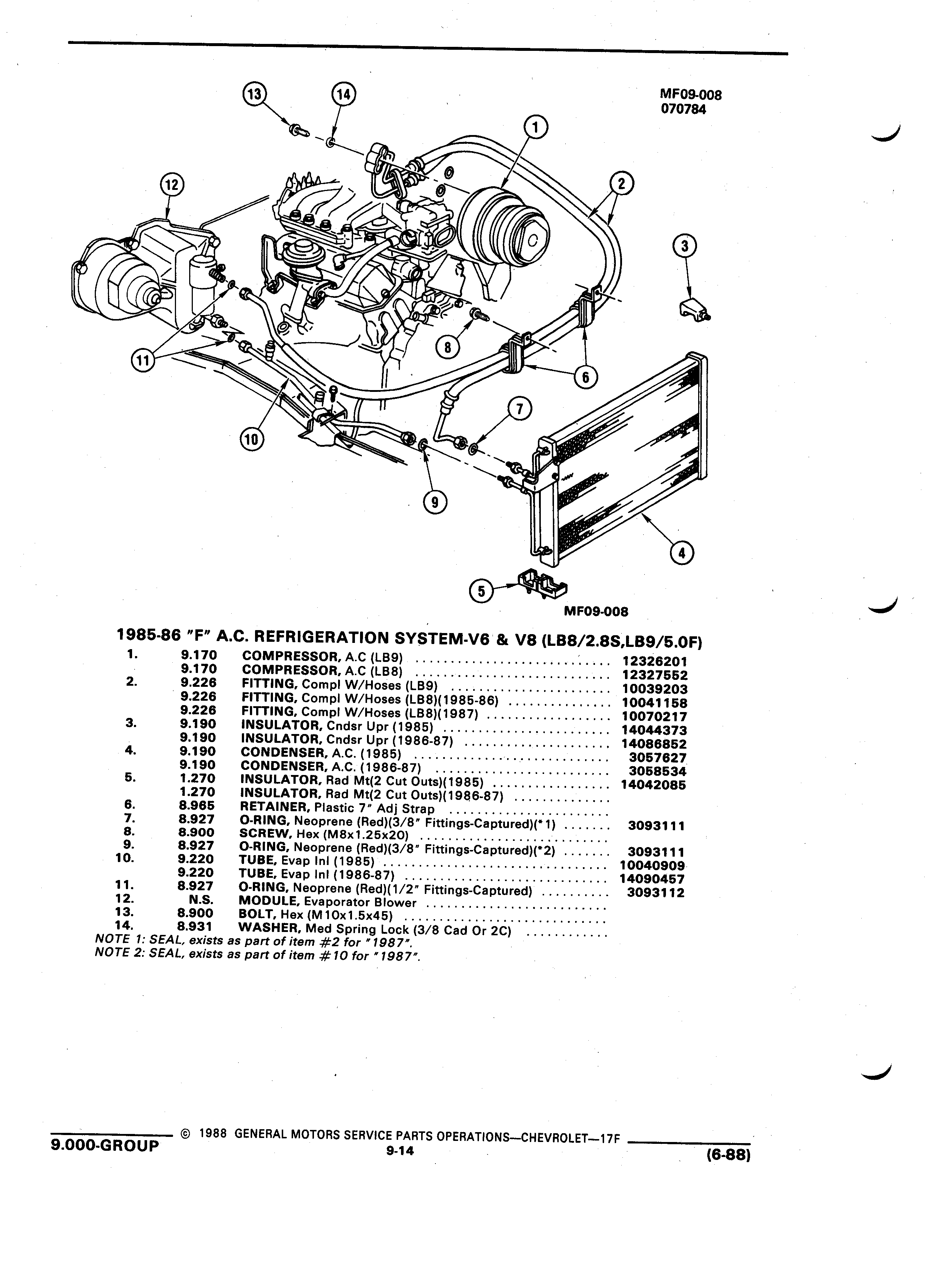

m 7 A I MF09 008 070784 J ii 6 I ie Q 7 fj QX 7 I T A e L fw f 7 1 4 if 5 g z V f y ga l 1 1 a I V I IG 7 I i 9 sr L 7 L Q 1 8 e 0 fx an wyr L I 770 7 c MF09 008 7 1985 86 F A C REFRIGERATION SYSTEM V6 V8 LB8 2 8S LB9 5 0F 1 9 170 COMPRESSOR A C LB9 12326201 9 170 COMPRESSOR A C LB8 12327552 2 9 226 FITTING Compl W Hoses LB9 10039203 I 9 226 FITTING Compl W Hoses LB8 1985 86 10041158 9 226 FITTING Comp W Hoses LB8 1987 10070217 3 9 190 INSULATOR Cndsr Upr 1985 14044373 9 190 INSULATOR Cndsr Upr 1986 87 14086852 4 9 190 CONDENSER A C 1985 7 3057627 7 9 190 CONDENSER A C 1986 87 3058534 5 1 270 INSULATOR Rad Mt 2 Cut Outs 1985 14042085 1 270 INSULATOR Rad Mt 2 Cut Outs 1986 87 6 8 965 RETAINER Plastic 7 Adj Strap 7 8 927 O R NG Neoprene Red 3 8 Fittings Captured 1 309311 1 8 8 900 SCREW Hex M8x1 25x20 9 8 927 O RING Neoprene Red 3 8 Fittings Captured 2 3093111 10 9 220 TUBE Evap Inl 1985 10040909 9 220 TUBE Evap Inl 1986 87 14090457 11 8 927 O RING Neoprene Red 1 2 Fittings Captured 3093112 12 N S MODULE Evaporator Blower 13 8 900 BOLT Hex M 10x1 5x45 14 8 931 WASHER Med Spring Lock 3 8 Cad Or 2C NOTE 1 SEAL exists as part of item 2 for 1987 NOTE 2 SEAL exists as part of item 10 for 1987 I A 1988 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 17F 4 9 000 GROUP 9 14 7 6 88
