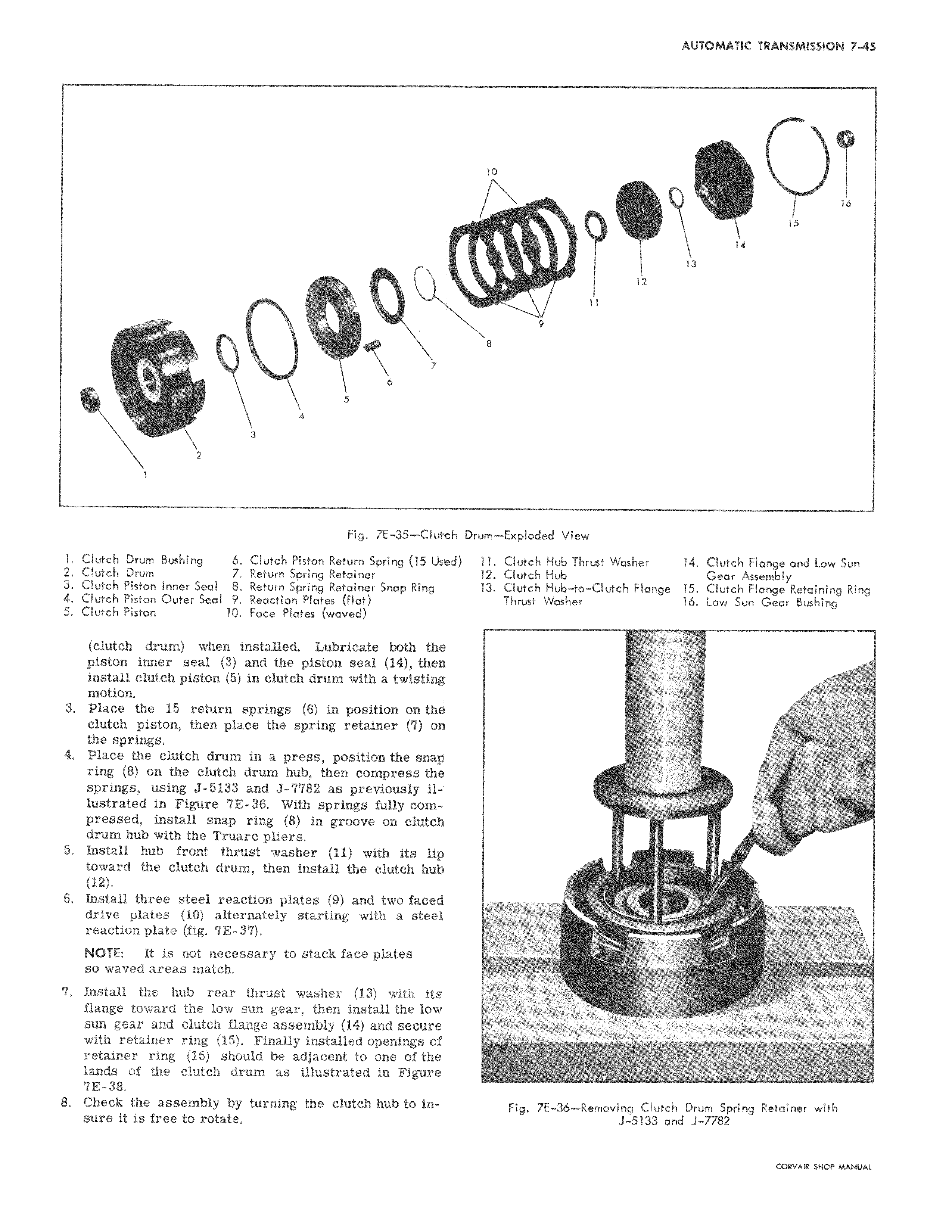

7 6 5 3 4 2 1 Fig 7E 35 Clutcl 1 Clutch Drum Bushing 6 Clutch Piston Return Spring 15 EJsec 2 Clutch Drum 7 Return Spring Retainer 3 Clutch Piston Inner Seal 8 Return Spring Retainer Snap Ring 4 Clutch Piston Outer Seal 9 Reaction Plates flat 5 Clutch Piston 10 Face Plates waved clutch drum when installed Lubricate both the piston inner seal 3 and the piston seal 14 then install clutch piston 5 in clutch drum with a twisting motion 3 Place the 15 return springs 6 in position on the clutch piston then place the spring retainer 7 on the springs 4 Place the clutch drum in a press position the snap ring 8 on the clutch drum hub then compress the springs using J 5133 and J 7782 as previously i1lustrated in Figure 7E 36 With springs fully compressed install snap ring 8 in groove on clutch drum hub with the Truarc pliers 5 Install hub front thrust washer 11 with its lip toward the clutch drum then install the clutch hub 12 6 Install three steel reaction plates 9 and two faced drive plates 10 alternately starting with a steel reaction plate fig 7E 37 NOTE It is not necessary to stack face plates so waved areas match 7 Install the hub rear thrust washer 13 with its flange toward the low sun gear then install the low sun gear and clutch flange assembly 14 and secure with retainer ring 15 Finally installed openings of retainer ring 15 should be adjacent to one of the lands of the clutch drum as illustrated in Figure 7E 38 8 Check the assembly by turning the clutch hub to insure it is free to rotate z s i r 10 16 14 13
