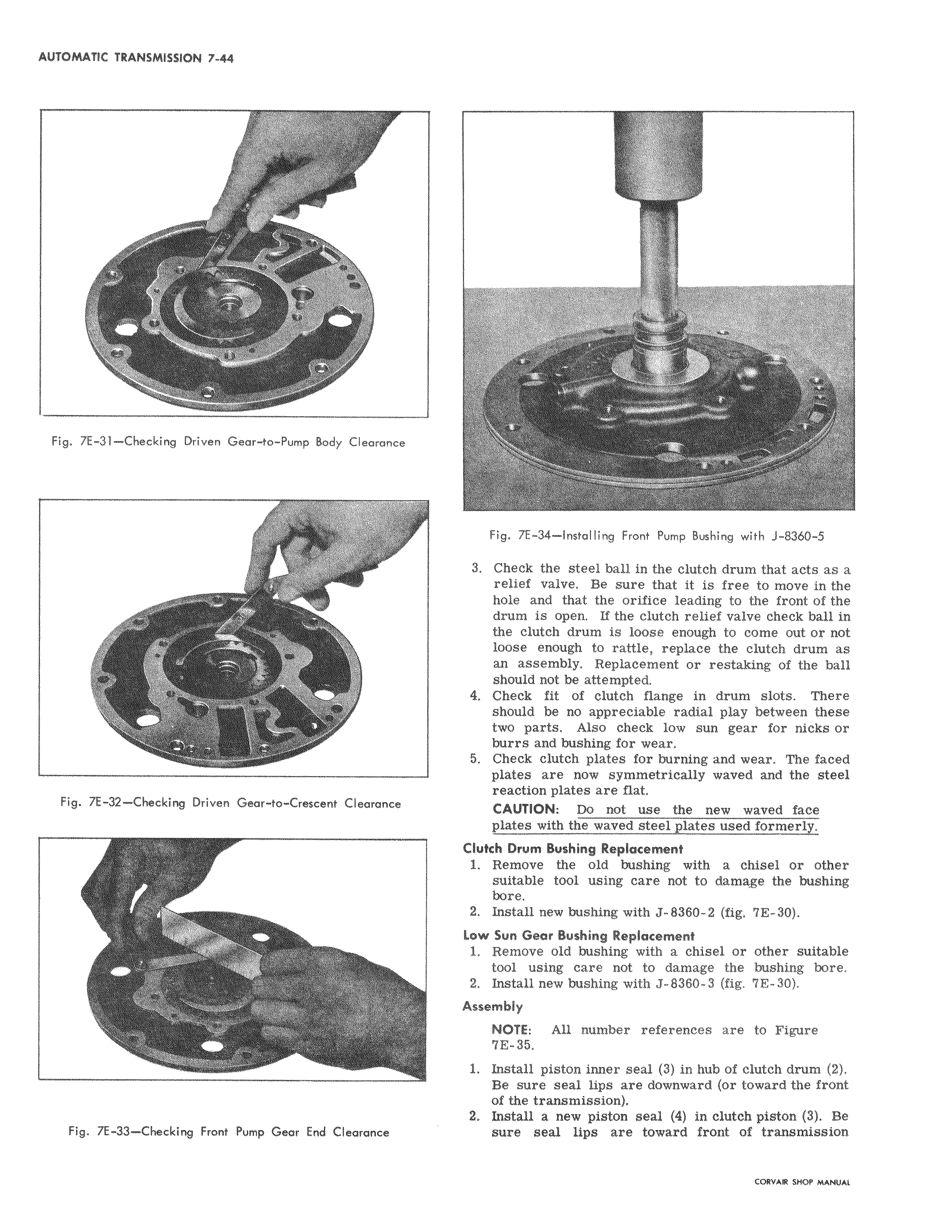

s Fig 7E 34 Installing Front Pump Bushing with J 8360 5 3 Check the steel ball in the clutch drum that acts as a relief valve Be sure that it is free to move in the hole and that the orifice leading to the front of the drum is open If the clutch relief valve check ball in the clutch drum is loose enough to come out or not loose enough to rattle replace the clutch drum as an assembly Replacement or restaking of the ball shd ld not be attempted 4 Chick fit of clutch flange in drum slots There shcKdd be no appreciable radial play between these two parts Also check low sun gear for nicks or burrs and bushing for wear 5 Chick clutch plates for burning and wear The faced plates are now symmetrically waved and the steel reaction plates are flat CAUTION Do not use the new waved face plates with the waved steel plates used formerly Clutch Drum Bushing Replacement 1 Remove the old bushing with a chisel or other suitable tool using care not to damage the bushing bore 2 Install new bushing with J 8360 2 fig 7E 30 Low Sun Gear Bushing Replacement 1 Remove old bushing with a chisel or other suitable tool using care not to damage the bushing bore 2 Install new bushing with J 8360 3 fig 7E 30 Assembly NOTE All number references are to Figure 7E 35 1 Install piston inner seal 3 in hub of clutch drum 2 Be j sure seal lips are downward or toward the front of the transmission 2 Install a new piston seal 4 in clutch piston 3 Be sure seal lips are toward front of transmission
