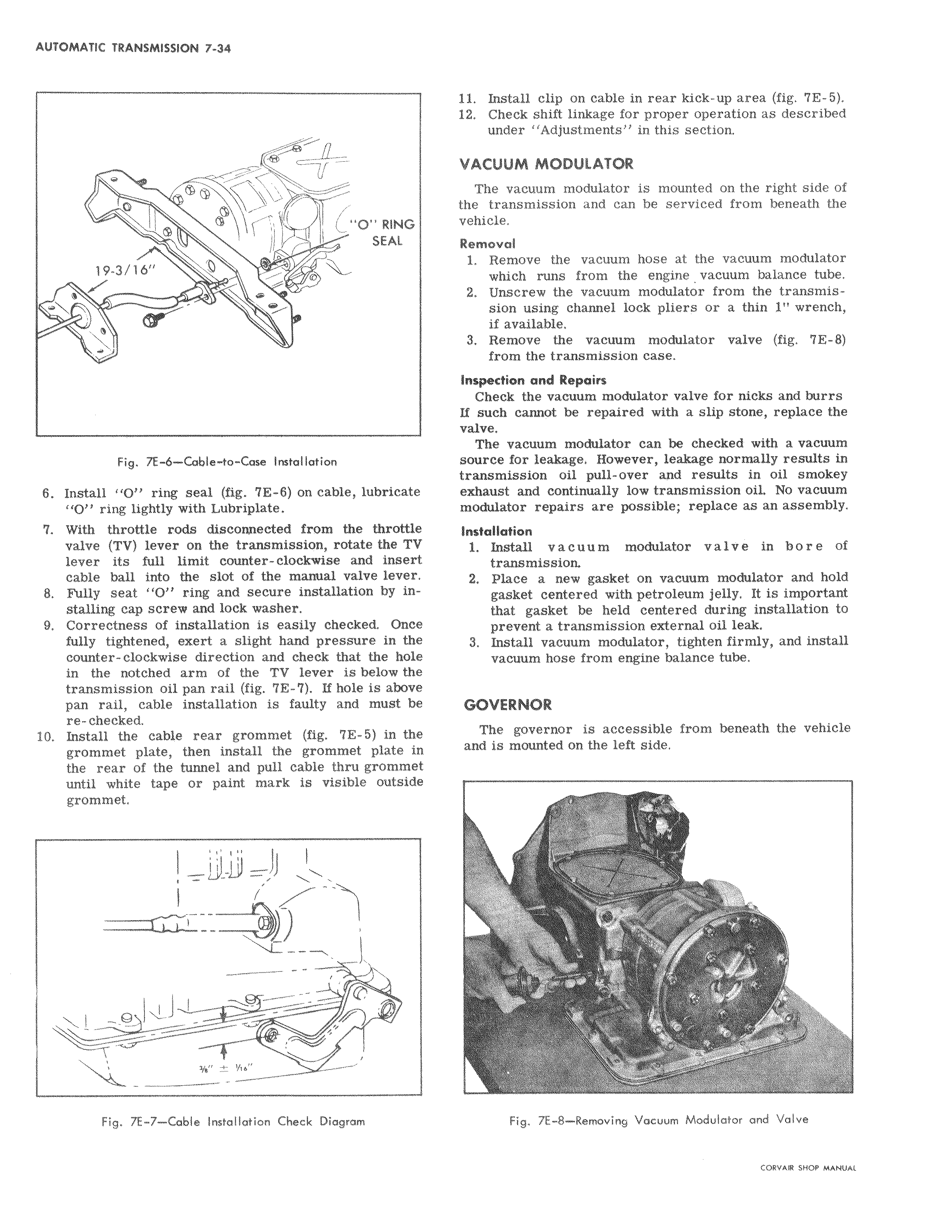

o C G RING SEAL 19 3 16 o 1 o Fig 7E 6 Cable to Case Installation 6 Install O ring seal fig 7E 8 on cable lubricat O ring lightly with Lubriplate 7 With throttle rods disconnected from the throttle valve TV lever on the transmission rotate the T lever its full limit counter clockwise and inser t cable ball into the slot of the manual valve leve 8 Fully seat O ring and secure installation by installing cap screw and lock washer 9 Correctness of installation is easily checked 0nc fully tightened exert a slight hand pressure in the counter clockwise direction and check that the hole in the notched arm of the TV lever is below the transmission oil pan rail fig 7E 7 If hole is above pan rail cable installation is faulty and must be re checked 10 Install the cable rear grommet fig 7E 5 in tl e grommet plate then install the grommet plate n the rear of the tunnel and pull cable thru gromm t until white tape or paint mark is visible outside grommet L 1 Fig 7E 7 Cable Installation Check Diagram i lI InstAll clip on cable in rear kick up area fig 7E 5 12 Che4k shift linkage for proper operation as described under Adjustments in this section VACUUM MODULATOR The vacuum modulator is mounted on the right side of the transmission and can be serviced from beneath the vehicle Removal 1 Remove the vacuum hose at the vacuum modulator whi h runs from the engine vacuum balance tube 2 Unscrew the vacuum modulator from the transmissiorl using channel lock pliers or a thin 1 wrench if available 3 Remove the vacuum modulator valve fig 7E 8 from the transmission case Inspectidn and Repairs Check the vacuum modulator valve for nicks and burrs If such cannot be repaired with a slip stone replace the valve The vacuum modulator can be checked with a vacuum source Ilor leakage However leakage normally results in transmission oil pull over and results in oil smokey exhaust and continually low transmission oil No vacuum modulator repairs are possible replace as an assembly Installation 1 Install vacuum modulator valve in bore of trabsmission 2 Place a new gasket on vacuum modulator and hold gasket centered with petroleum Jelly It is important that gasket be held centered during installation to prevent a transmission external oil leak 3 Install vacuum modulator tighten firmly and install vacuum hose from engine balance tube GOVERNOR The jgovernor is accessible from beneath the vehicle and is mounted on the left side kig 7E 8 Removing Vacuum Modulator and Valve
