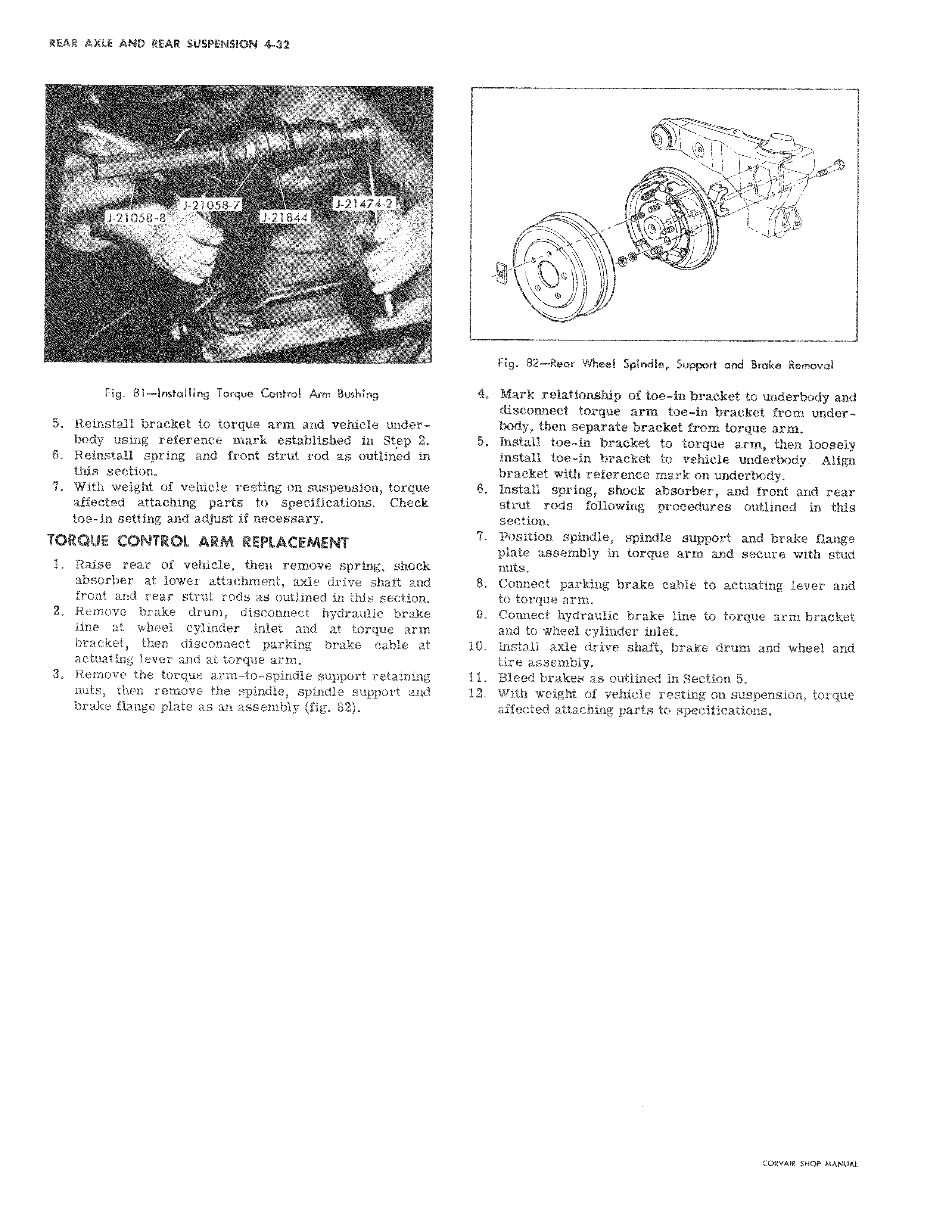

J 21058 7 J 21474 2 J 21058 8 J 21844 Fig 81 installing Torque Control Arm Bushing 5 Reinstall bracket to torque arm and vehicle undelbody using reference mark established in Step 6 Reinstall spring and front strut rod as outlined in this section 7 With weight of vehicle resting on suspension torque affected attaching parts to specifications Check toe in setting and adjust if necessary TORQUE CONTROL ARM REPLACEMENT 1 Raise rear of vehicle then remove spring shock absorber at lower attachment axle drive shaft and front and rear strut rods as outlined in this secti 2 Remove brake drum disconnect hydraulic bra e line at wheel cylinder inlet and at torque arm bracket then disconnect parking brake cable at actuating lever and at torque arm 3 Remove the torque arm to spindle support retaining nuts then remove the spindle spindle support and brake flange plate as an assembly fig 82 I y w F 0 m Fig 82 Rear Wheel Spindle Support and Broke Removal 4 Mark relationship of toe in bracket to underbody and di9connect torque arm toe in bracket from underbo0y then separate bracket from torque arm 5 Install toe in bracket to torque arm then loosely install toe in bracket to vehicle underbody Align bracket with reference mark on underbody 6 Install spring shock absorber and front and rear strut rods following procedures outlined in this section 7 Polsition spindle spindle support and brake flange plate assembly in torque arm and secure with stud nuts 8 Connect parking brake cable to actuating lever and to torque arm 9 Connect hydraulic brake line to torque arm bracket and to wheel cylinder inlet 10 In tall axle drive shaft brake drum and wheel and tire assembly 11 Bleed brakes as outlined in Section 5 12 With weight of vehicle resting on suspension torque affected attaching parts to specifications I i rrvvee eur e m
