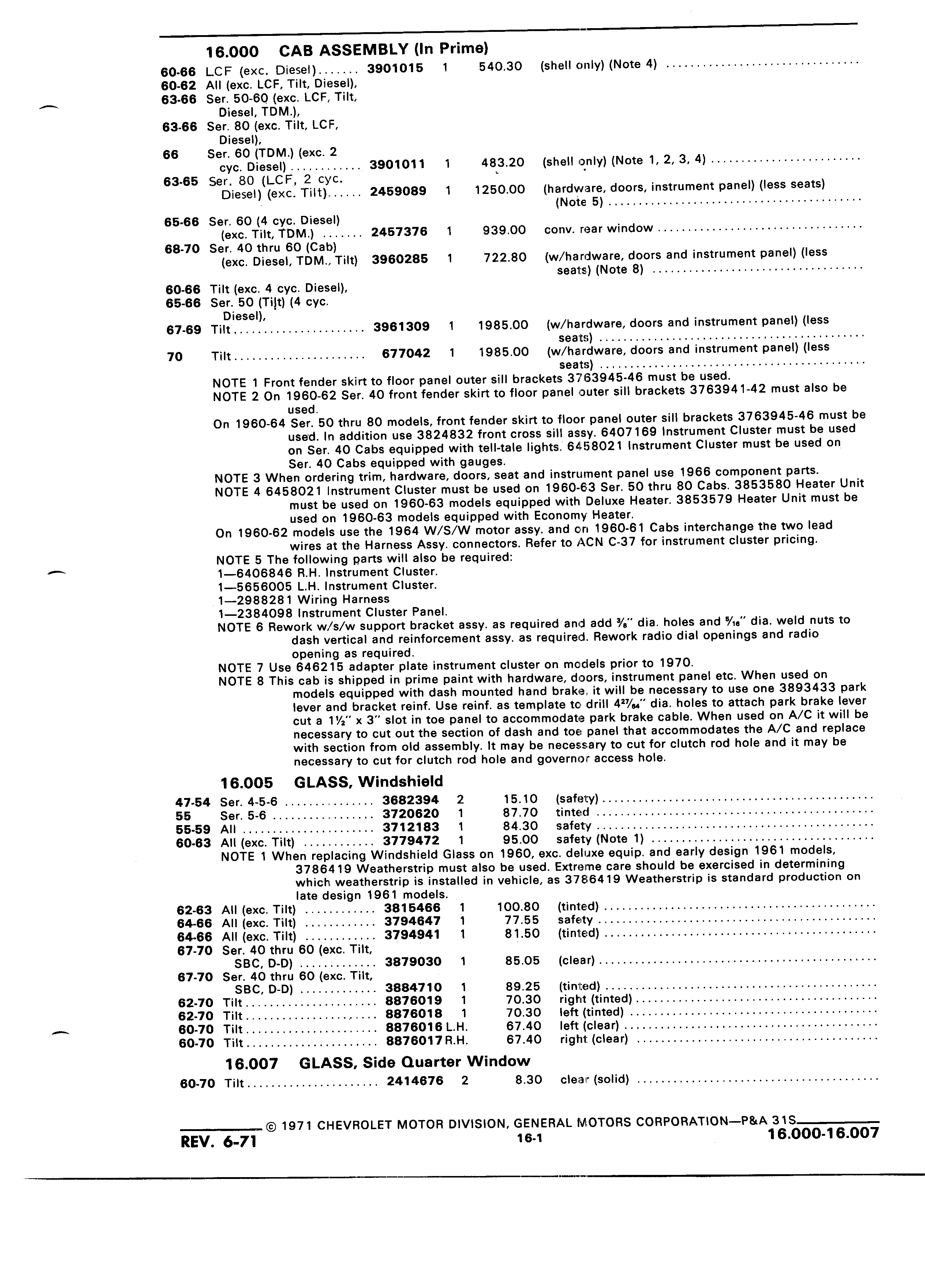

16 000 CAB ASSEMBLY In Prime 60 66 LCF exc Diesel 3901015 1 540 30 shell only Note 4 60 62 All exc LCF Tilt Diesel A 63 66 Ser 50 60 exc LCF Tilt Diesel TDM 63 66 Ser 80 exc Tilt LCF Diesel 66 Ser 60 TDM exc 2 cyc Diesel 3901011 1 483 20 shell only Note 1 2 3 4 63 65 Ser 80 LCF 2 cyc Diesel exc Tilt 2459089 1 1250 00 hardware doors instrument panel less seats Note 5 65 66 Ser 60 4 cyc Diesel exc Tilt TDM 2457376 I 939 00 conv rear window 68 70 Ser 40 thru 60 Cab exc Diesel TDM Tilt 3960285 1 722 80 w hardware doors and instrument panel less seats Note 8 60 66 Tilt exc 4 cyc Diesel 65 66 Ser 50 Ti t 4 cyc Diesel 67 69 Tilt 3961309 1 1985 00 w hardware doors and instrument panel less seats 70 Tilt 677042 1 1985 00 w hairdware doors and instrument panel less seats NOTE 1 Front fender skirt to floor panel outer sill brackets 3763945 46 must be used NOTE 2 On 1960 62 Ser 40 front fender skirt to floor panel outer sill brackets 3763941 42 must also be used On 1960 64 Ser 50 thru 80 models front fender skirt to floor panel outer sill brackets 3763945 46 must be used In addition use 3824832 front cross sill assy 6407169 Instrument Cluster must be used on Ser 40 Cabs equipped with tell tale lights 6458021 Instrument Cluster must be used on Ser 40 Cabs equipped with gauges NOTE 3 When ordering trim hardware doors seat and instrument panel use 1966 component parts NOTE 4 6458021 Instrument Cluster must be used on 1960 63 Ser 50 thru 80 Cabs 3853580 Heater Unit must be used on 1960 63 models equipped with Deluxe Heater 3853579 Heater Unit must be used on 1960 63 models equipped with Economy Heater On 1960 62 models use the 1964 W S W motor assy and en 1960 61 Cabs interchange the two lead wires at the Harness Assy connectors Refer to ACN C 37 for instrument cluster pricing NOTE 5 The following parts will also be required 1 6406846 R H Instrument Cluster 1 5656005 L H Instrument Cluster 1 2988281 Wiring Harness 1 2384098 Instrument Cluster Panel NOTE 6 Rework w s w support bracket assy as required and add dia holes and Via dia weld nuts to dash vertical and reinforcement assy as required Rework radio dial openings and radio opening as required NOTE 7 Use 646215 adapter plate instrument cluster on models prior to 1970 NOTE 8 This cab is shipped in prime paint with hardware doors instrument panel etc When used on models equipped with dash mounted hand brake it will be necessary to use one 3893433 park lever and bracket reinf Use reinf as template tcl drill 4 dia holes to attach park brake lever cut a W2 x 3 slot in toe panel to accommodate park brake cable When used on A C it will be necessary to cut out the section of dash and toe panel that accommodates the A C and replace with section from old assembly It may be necessary to cut for clutch rod hole and it may be necessary to cut for clutch rod hole and governor access hole 16 005 GLASS Windshield 47 54 Ser 4 5 6 3682394 2 15 10 safety 55 Ser 5 6 3720620 1 87 70 tinted 55 59 All 3712183 1 84 30 safety 60 63 All exc Tilt 3779472 1 95 00 safety Note 1 NOTE 1 When replacing Windshield Glass on 1960 exc deluxe equip and early design 1961 models 3786419 Weatherstrip must also be used Extreme care should be exercised in determining which weatherstrip is installed in vehicle as 3786419 Weatherstrip is standard production on late design 1961 models 62 63 All exc Tilt 3815466 1 100 80 tinted 64 66 All exc Tilt 3794647 1 77 55 safety 64 66 All exc Tilt 3794941 1 81 50 tinted 67 70 Ser 40 thru 60 exc Tilt SBC D D 3879030 1 85 05 clear 67 70 Ser 40 thru 60 exc Tilt SBC D D 3884710 1 89 25 tinted 62 70 Tilt 8876019 1 70 30 right tinted 62 70 Tilt 8 876018 1 70 30 left tinted 60 70 Tilt 8876016 L H 67 40 left clear 60 70 Tilt 8876017R H 67 40 right clear 16 007 GLASS Side Quarter Window 60 70 Tilt 2414676 2 8 30 cleeir solid 1971 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 31S REV 6 71 1 6 1 1 6 000 16 007
