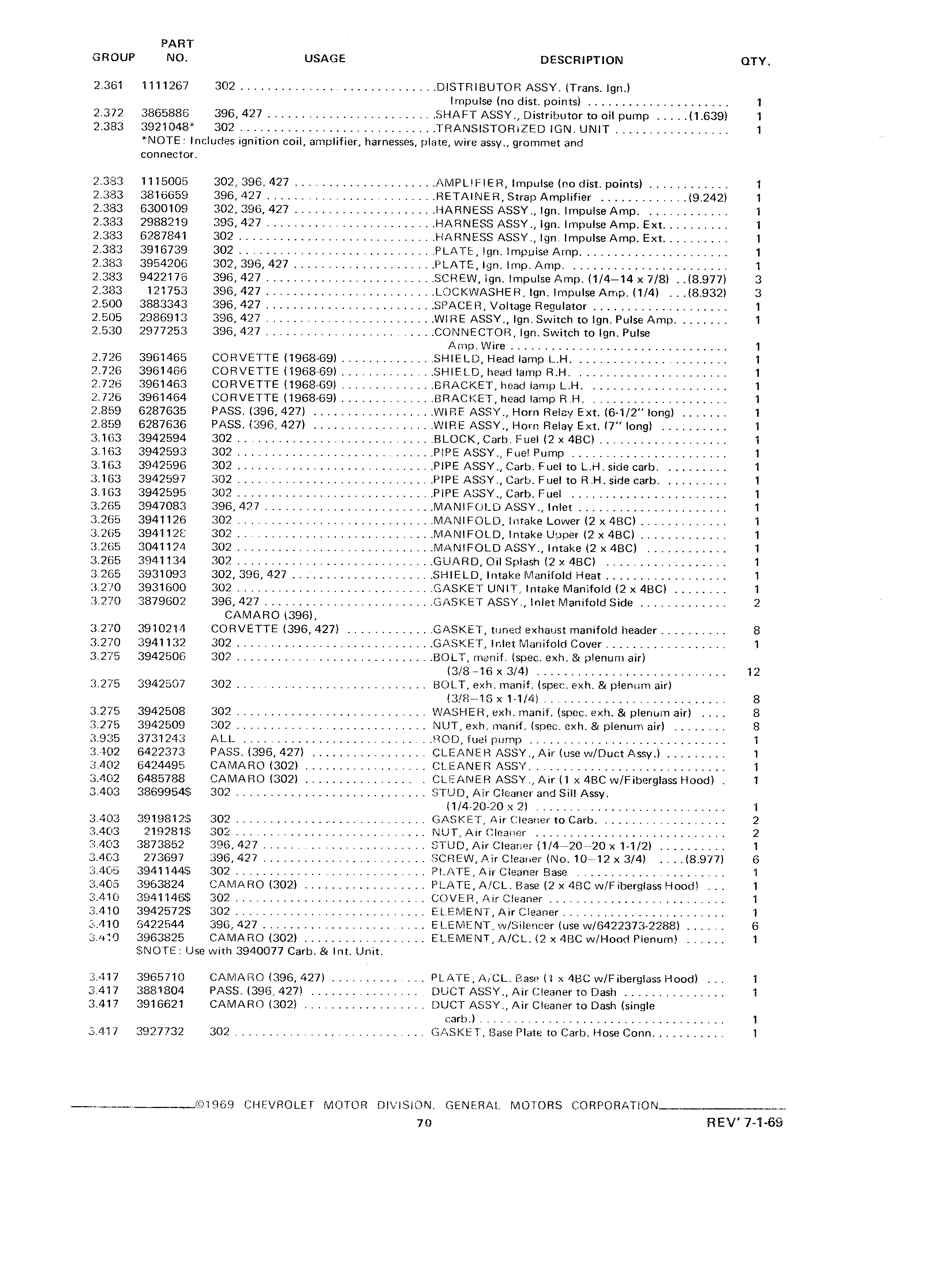

PART GROUP NO USAGE DESCRIPTION QTY 2 361 1111267 302 4 v DISTRIBUTOR ASSY Trans Ign Impulse no dist points 1 2 372 3865886 396 427 A SHAFT ASSY Distributor to oil pump 1 639 1 2 383 3921048 302 TRANSISTORIZED IGN UNIT 1 l lOTE Includes ignition coil amplifier harnesses plate wire assy grommet and connector 2 3133 1115005 302 396 427 AMPLIFIER Impulse no dist points 1 2 383 3816659 396 427 RETAINER Strap Amplifier 9 242 1 2 383 6300109 302 396 427 HARNESS ASSY Ign Impulse Amp 1 2 383 2988219 396 427 HARNESS ASSY Ign Impulse Amp Ext 1 2 383 6287841 302 HARNESS ASSY Ign Impulse Amp Ext I 2 383 3916739 302 PLATE Ign Impulse Amp 1 2 383 3954206 302 396 427 PLATE Ign Imp Amp 1 2 383 9422176 396 427 SCREW Ign Impulse Amp 1 4 14 x 7 8 8 977 3 2 383 121753 396 427 LOCIQNASHER Ign Impulse Amp 1 4 8 932l 3 2 500 3883343 396 427 SPACER Voltage Regulator 1 2 505 2986913 396 427 WIRE ASSY Ign Switch to Ign Pulse Amp 1 2 530 2977253 396 427 CONNECTOR Ign Switch to Ign Pulse Amp Wire 1 2 726 3961465 CORVETTE 1968 69 SHIELD Headlamp L H 1 2 726 3961466 CORVETTE 1968 69 SHIELD head lamp R H 1 2 726 3961463 CORVETTE 1968 69 BRACKET head lamp L H 1 2 726 3961464 CORVETTE 1968 69 BRACIQET head lamp R H 1 2 859 6287635 PASS 396 427 WIRE ASSY Horn Relay Ext 6 1 2 long 1 2 859 6287636 PASS 396 427 WIRE ASSY Horn Relay Ext I7 long 1 3 163 3942594 302 BLOCK Carb Fuel 2 x 4BCl 1 3 163 3942593 302 PIPE ASSY Fuel Pump I 3 163 3942596 302 PlPE ASSY Carb Fuel to L H side carb 1 3 163 3942597 302 PIPE ASSY Carb Fuel to R H side carb 1 3 163 3942595 302 PIPE ASSY Carb Fuel 1 3 265 3947083 396 427 M I l F 2l O ASSY Inlet 1 3 265 3941126 302 MANIFOLD Intake Lower 2 x 48C 1 3 265 3941128 302 IVIANIFOLD Intake Upper 2 x 4BC 1 3 265 3041124 302 MANIFOLD ASSY Intake 2 x 4BC 1 3 265 3941134 302 GUARD Oil Splash 2 x 4BCl 1 3 265 3931093 302 396 427 SHIELD Intake It 1ani IoId Heat 1 3 270 3931600 302 GASKET Ul IlT Intake Manifold 2 x 4BC 1 3 270 3879602 396 427 GASl E l ASSY Inlet Manifold Side 2 czuvi xno eee 3 270 3910214 CORVETTE 396 427 GASKET tuned exhaust manifold header 8 3 270 3941132 302 GASKQET Inlet I v1anifoId Cover 1 3 275 3942506 302 BOLT manif spec exh gl plenum air 3 8 I6x3 4 12 3 275 3942507 302 BOLT exh manif spar exh plenum air 3 8 16x 1 1 4 8 3 275 3942508 302 WASHER exh manif spec exh plenum air 8 3 275 3942509 302 l I UT exh manif spec exh 8a plenum air 8 3 935 3731243 ALI ROD fuel pump 1 3 402 6422373 PASS 396 427 CLEANE R ASSY Air use w Duct Assy 1 3 402 6424495 CAMARO 302 CLEANER ASSY 1 3 402 6485788 CAIVIARO 302 CLEANER ASSY Air 1 x 4BC vv Fiberglass Hood 1 3 403 38699548 302 STUD Air Cleaner and Sill Assy 1 4 20 20 x 2 I 3 403 39198123 302 GASIGET Air Cleaner to Carb 2 3 403 2192813 302 NUT Air Cleaner 2 3 403 3873852 396 427 STUD Air Cleaner 1 4 20 20 x 1 1 2 1 3 403 273697 396 427 SCREW Air Cleaner No 10 12 x 3 4 8 977 6 3 405 39411443 302 PLATE Air Cleaner Base 1 3 405 3963824 CAIVIARO 302 PLATE A CL Base 2 x 48C vv Fiberglass Hood 1 3 410 3941146 302 COVER Air Cleaner 1 3 410 39425728 302 EI EI lEI I I Air Cleaner 1 3 410 6422544 396 427 E I El 1ENT w Silencer use vv 6422373 2288 6 3 410 3963825 CAMARO 302 ELEIVIENT A CL 2 x 4BC w Hood Plenum 1 SNOTE Use with 3940077 Carb Int Unit 3 417 3965710 CAIVIARO 396 427 PLATE AICL Ease 1 x 4BC w Fiberglass Hood 1 3 417 3881804 PASS 396 427 DUCT ASSY Air Cleaner to Dash 1 3 417 3916621 CAMARO 302 DUCT ASSY Air Cleaner to Dash single carb 1 3 417 3927732 302 3 i SI E T Base Plate to Carb Hose Conn I 2 2 1969 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION 2 70 REV 7 1 59
