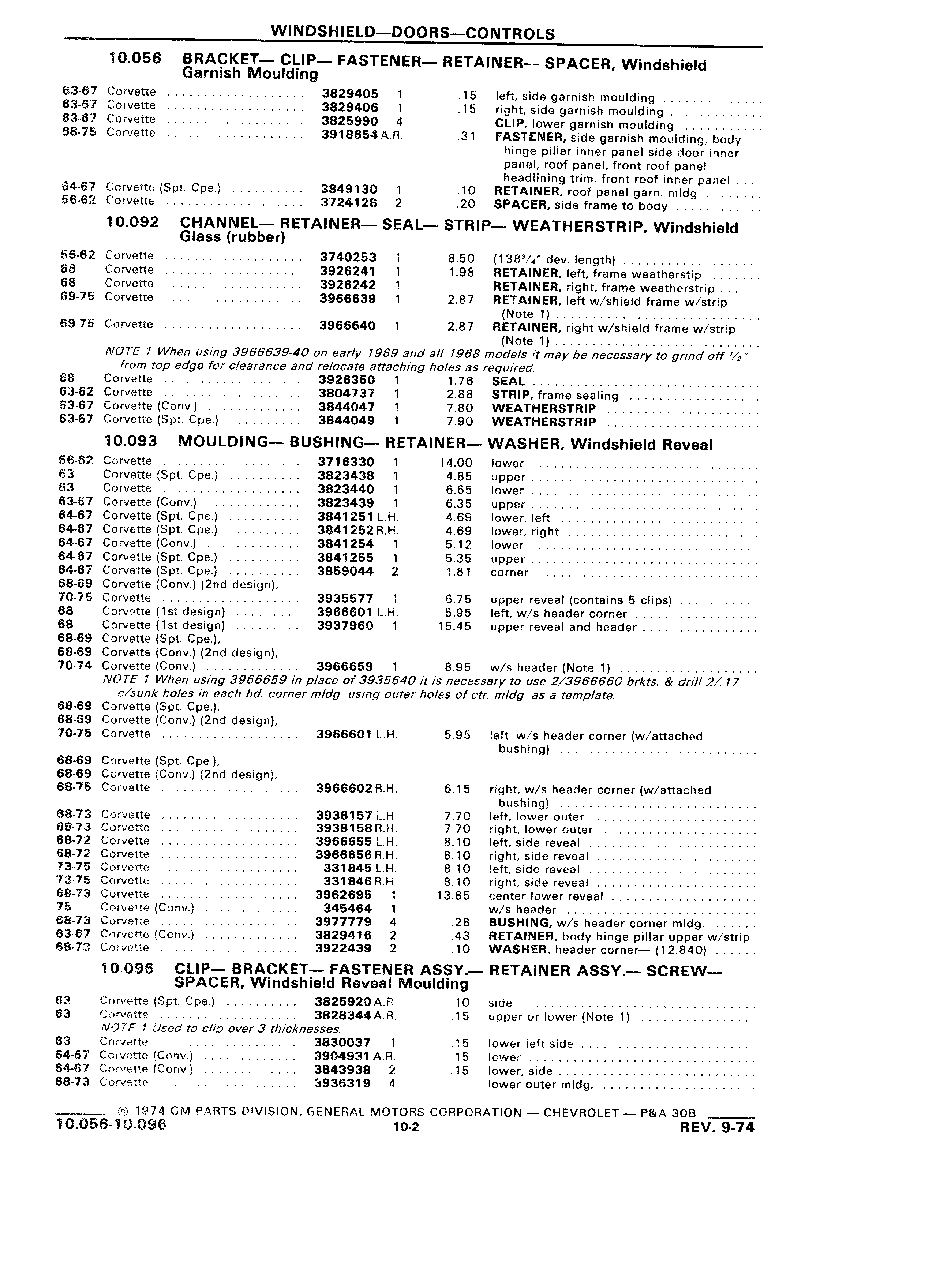

WINDSHIELD DOORS CONTROLS 10 056 BRACKET CLIP FASTENER RETAINER SPACER Windshield Garnish Moulding 63 67 Corvette 3829405 1 15 left side garnish moulding 63 67 Corvette 3829406 1 15 right side garnish moulding 63 67 Corvette r 3825990 4 CLIP lower garnish moulding 68 75 Corvette r 3918654A R 31 FASTENER side garnish moulding body hinge pillar inner panel side door inner panel roof panel front roof panel headlining trim front roof inner panel 64 67 Corvette Spt Cpe 3849130 1 10 RETAINER roof panel garn mldg 56 62 Corvette 3724128 2 20 SPACER side frame to body 10 092 CHANNEL RETAINER SEAL STRIP WEATHERSTRIP Windshield Glass rubber 56 62 Corvette 3740253 1 8 50 1383 dev length 68 Corvette r r 3926241 1 1 98 RETAINER left frame weatherstip 68 Corvette 3926242 1 RETAINER right frame weatherstrip 69 75 Corvette 3966639 1 2 87 RETAINER left w shield frame w strip Note 1 69 75 Corvette 3966640 1 2 87 RETAINER right w shield frame w strip Note 1 AIO TE 7 When us ng 3966639 40 on ear y 7969 and a 7968 mode s it may be necessary to grind off from top edge for clearance and relocate attach ng ho es as required 68 Corvette 3926350 1 1 76 SEAL 63 62 Corvette 3804737 1 2 88 STRIP frame sealing 63 67 Corvette Conv 3844047 1 7 80 WEATHERSTRIP 63 67 Corvette Spt Cpe 3844049 1 7 90 WEATHERSTRIP 10 093 MOULDING BUSHING RETAINER WASHER Windshield Reveal 56 62 Corvette 3716330 1 14 00 lower 63 Corvette Spt Cpe 3823438 1 4 85 upper 63 Corvette 3823440 1 6 65 lower r 63 67 Corvette Conv 3823439 1 6 35 upper 64 67 Corvette Spt Cpe 3841251 L l l 4 69 lower left 64 67 Corvette Spt Cpe 3841252 RH 4 69 lower right 64 67 Corvette Conv 3841254 1 5 12 lower 64 67 Corvette Spt Cpe 3841255 1 5 35 upper 64 67 Cowette Spt Cpe 3859044 2 1 81 corner 68 69 Corvette Conv 2nd design 70 75 Corvette 3935577 1 6 75 upper reveal contains 5 clips 68 Corvette lst design 3966601 L H 5 95 left w s header corner 68 Corvette lst design 3937960 1 15 45 upper reveal and header 68 69 Corvette Spt Cpe 68 69 Corvette Conv 2nd design 70 74 Corvette Conv 3966659 1 8 95 w s header Note 1 NOTE 7 When us ng 3966659 in p ace of 3935640 it is necessary to use 2 3966660 brkts drill 2 77 c sunk ho es in each hd corner m dg us ng outer ho es of ctr m dg as a temp ate 68 69 Corvette Spt Cpe 68 69 Corvette Conv 2nd design 70 75 Corvette 3966601 L H 5 95 left w s header corner w attached bushing 68 69 Corvette Spt Cpe 68 69 Corvette Conv 2nd design 68 75 Corvette 3966602 R H 6 15 right w s header corner w attached bushing 68 73 Corvette 3938157 l H 7 70 left lower outer 68 73 Corvette 3938158 RH 7 70 right lower outer 68 72 Corvette 3966655 l H 8 10 left side reveal r 68 72 Corvette 3966656 R H 8 10 right side reveal 73 75 Corvette 331845 L H 8 10 left side reveal 73 75 Corvette 331846 R H 6 10 right side reveal 68 73 Corvette 3962695 1 13 85 center lower reveal 75 Corvette Conv 345464 1 w s header 68 73 Corvette 3977779 4 28 BUSHING w s header corner mldg 63 67 Corvette Conv 3829416 2 43 RETAINER body hinge pillar upper w strip 68 73 Corvette 3922439 2 10 WASHER header corner 12 840 140 098 CLIP BRACKET FASTENER ASSY RETAINER ASSY SCREW SPACER Windshield Reveal Moulding 63 Corvette Spt Cpe 3825920 Fi 10 side 63 Corvette 3828344A R 15 upper or lower Note 1 A U 7 L sed to c p over 3 th c messes 63 Corvette 3830037 1 15 lower left side 64 57 Corvette Conv 3904931 A R 15 lower 64 67 Corvette Conv 3843938 2 15 lower side 68 73 Corvette 3936319 4 lower outer mldg 1974 GM PARTS DlVlSlON GENERAL MOTORS CORPORATION CHEVROLET P A 3OB j 10 056 10 096 10 2 REV 9 74
