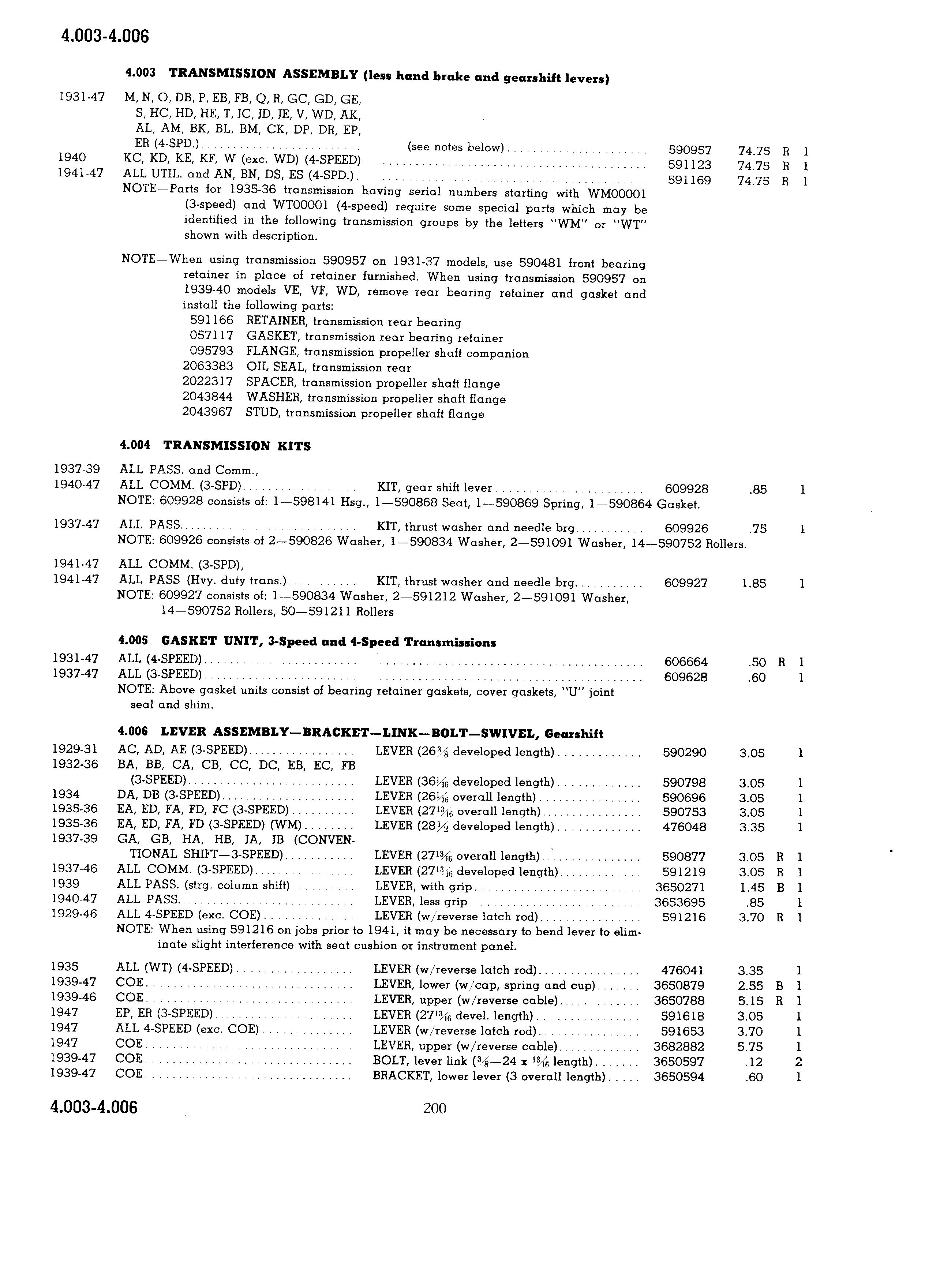

4 003 4 006 4 003 TRANSMISSION ASSEMBLY less hand brake and gearshift levers 1931 47 M N O DB P EB FB Q R GC GD GE S HC HD HE T IC ID IE V WD AK AL AM BK BL BM CK DP DR EP ER 4 SPD see notes below 590957 74 75 R 1 1940 KC KD KE KF W exc WD 4 SPEED 591123 74 75 R 1 1941 47 ALL UTIL and AN BN DS ES 4 SPD 591169 74 75 R 1 NOTE Parts for 1935 36 transmission having serial numbers starting with WM00001 3 speed and WT00001 4 speed require some special parts which may be identified in the following transmission groups by the letters WM or WT shown with description NOTE When using transmission 590957 on 1931 37 models use 590481 front bearing retainer in place of retainer furnished When using transmission 590957 on 1939 40 models VE VF WD remove rear bearing retainer and gasket and install the following parts 591166 RETAINER transmission rear bearing 057117 GASKET transmission rear bearing retainer 095793 FLANGE transmission propeller shaft companion 2063383 OIL SEAL transmission rear 2022317 SPACER transmission propeller shaft flange 2043844 WASHER transmission propeller shaft flange 2043967 STUD transmission propeller shaft flange 4 004 TRANSMISSION KITS 1937 39 ALL PASS and Comm 1940 47 ALL COMM 3 SPD KIT gear shift lever 609928 85 1 NOTE 609928 consists of 1 598141 Hsg 1 590868 Seat 1 590869 Spring 1 590864 Gasket 1937 47 ALL PASS KIT thrust washer and needle brg 609926 75 1 NOTE 609926 consists of 2 590826 Washer 1 590834 Washer 2 591091 Washer 14 590752 Rollers 1941 47 ALL COMM 3 SPD 1941 47 ALL PASS Hvy duty trans KIT thrust washer and needle brg 609927 1 85 1 NOTE 609927 consists of 1 590834 Washer 2 591212 Washer 2 591091 Washer 14 590752 Rollers 50 591211 Rollers 4 005 GASKET UNIT 3 Speed and 4 Speed Transmissions 1931 47 ALL 4 SPEED V 606664 50 R 1 1937 47 ALL 3 SPEED 609628 60 1 NOTE Above gasket units consist of bearing retainer gaskets cover gaskets U joint seal and shim 4 006 LEVER ASSEMBLY BRACI ET LINK BOLT SWIVEL Geasshift 1929 31 AC AD AE 3 SPEED LEVER 26 developed length 590290 3 05 1 1932 36 BA BB CA CB CC DC EB EC FB 3 SPEED LEVER 36 developed length 590798 3 05 1 1934 DA DB 3 SPEED LEVER 269g overall length 590696 3 05 1 1935 36 EA ED FA FD FC 3 SPEED LEVER 271 overall length 590753 3 05 1 1935 36 EA ED FA FD 3 SPEED WM LEVER 28 Q developed length 476048 3 35 1 1937 39 GA GB HA HB IA IB coNvEN TIONAL SHIFT 3 SPEED LEVER 271 overall length 1 590877 3 05 R 1 1937 46 ALL COMM 3 SPEED LEVER 2713 5 developed length 591219 3 05 R 1 1939 ALL PASS strg column shift LEVER with grip 3650271 1 45 B 1 1940 47 ALL PASS LEVER less grip 3653695 85 1 1929 46 ALL 4 SPEED exc COE LEVER w reverse latch rod 591216 3 70 R 1 NOTE When using 591216 on jobs prior to 1941 it may be necessary to bend lever to elim inate slight interference with seat cushion or instrument panel 1935 ALL WT 4 SPEED LEVER w reverse latch rod 476041 3 35 1 1939 47 COE LEVER lower w cap spring and cup 3650879 2 55 B 1 1939 46 COE LEVER upper w reverse cable 3650788 5 15 R 1 1947 EP ER 3 SPEED LEVER 2711 6 devel length 591618 3 05 1 1947 ALL 4 SPEED exc COE LEVER w reverse latch rod 591653 3 70 1 1947 COE LEVER upper w reverse cable 3682882 5 75 1 1939 47 COE BOLT lever link 24 x 1 length 3650597 12 2 1939 47 COE BRACKET lower lever 3 overall length 3650594 60 1 4 UU3 4 006 ZOO
