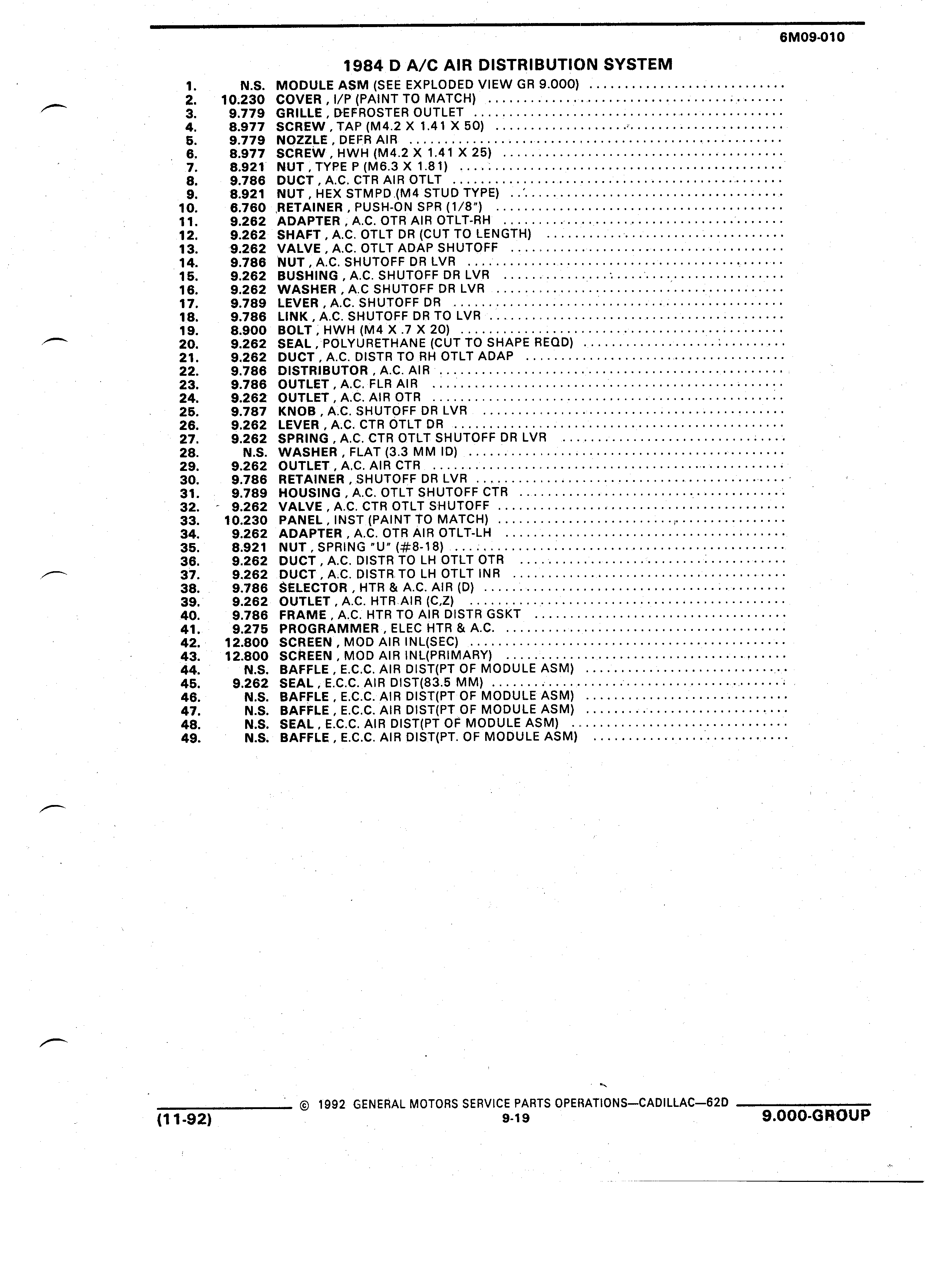

6M09 010 1984 D A C AIR DISTRIBUTION SYSTEM 1 N S MODULE ASM SEE EXPLODED VIEW GR 9 000 2 10 230 COVER I P PAINT TO MATCH 4 3 9 779 GRILLE DEFROSTER OUTLET 4 8 977 SCREW TAP M4 2 X 1 41 X 50 5 9 779 NOZZLE DEFR AIR A 6 8 977 SCREW HWH M4 2 X 1 41 X 25 7 8 921 NUT TYPE P M6 3 X 1 81 L 8 9 786 DUCT A C CTR AIR OTLT 9 8 921 NUT HEX STMPD M4 STUD TYPE 10 6 760 RETAINER PUSH ON SPR 1 8 1 1 9 262 ADAPTER A C OTR AIR OTLT RH I 12 9 262 SHAFT A C OTLT DR CUT TO LENGTH A 13 9 262 VALVE A C OTLT ADAP SHUTOFF 14 9 786 NUT A C SHUTOFF DR LVR 15 9 262 BUSHING A C SHUTOFF DR LVR 16 9 262 WASHER A C SHUTOFF DR LVR I 17 9 789 LEVER A C SHUTOFF DR I 18 9 786 LINK A C SHUTOFF DR TO LVR 19 8 900 BOLT Q HWH M4 X 7 X 20 20 9 262 SEAL POLYURETHANE CUT TO SHAPE REOD 1 21 9 262 DUCT A C DISTR TO RH OTLT ADAP 22 9 786 DISTRIBUTOR A C AIR 23 9 786 OUTLET A C FLR AIR A 24 9 262 OUTLET A C AIR OTR Q 25 9 787 KNOB A C SHUTOFF DR LVR 26 9 262 LEVER A C CTR OTLT DR 27 9 262 SPRING A C3 CTR OTLT SHUTOFF DR LVR 28 N S WASHER FLAT 3 3 MM ID 29 9 262 OUTLET A C AIR CTR 30 9 786 RETAINER SHUTOFF DR LVR I 31 9 789 HOUSING A C OTLT SHUTOFF CTR A 32 9 262 VALVE A C CTR OTLT SHUTOFF 33 10 230 PANEL NS PAINT TO MATCH 34 9 262 ADAPTER A C OTR AIR OTLT LH 35 8 921 NUT SPRING U 8 18 36 9 262 DUCT A C DISTR TO LH OTLT OTR V L 37 9 262 DUCT A C DISTRTO LH OTLT INR 38 9 786 SELECTOR HTR A C AIR D 39 9 262 OUTLET A C HTRAIR C Z 40 9 786 FRAME A C HTR TO AIR DISTR GSKT 41 9 275 PROGRAMMER ELEC HTR A C 42 12 800 SCREEN MOD AIR INL SEC 43 12 800 SCREEN MOD AIR INL PRIMARY 44 A N S BAFFLE E C C AIR DIST PT OF MODULE ASM V 45 9 262 SEAL E C C AIR DIST 83 5 MM 46 N S BAFFLE E C C AIR DIST PT OF MODULE ASM I 47 N S BAFFLE E C C AIR DIST PT OF MODULE ASM 48 N S SEAL E C C AIR DIST PT 0F MODULE ASM 49 N S BAFFLE E C C AIR DIST PT OF MODULE ASM f l1 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS CAD LLAC 62D 1 1 1 92 V 9 19 9 000 GROUP
