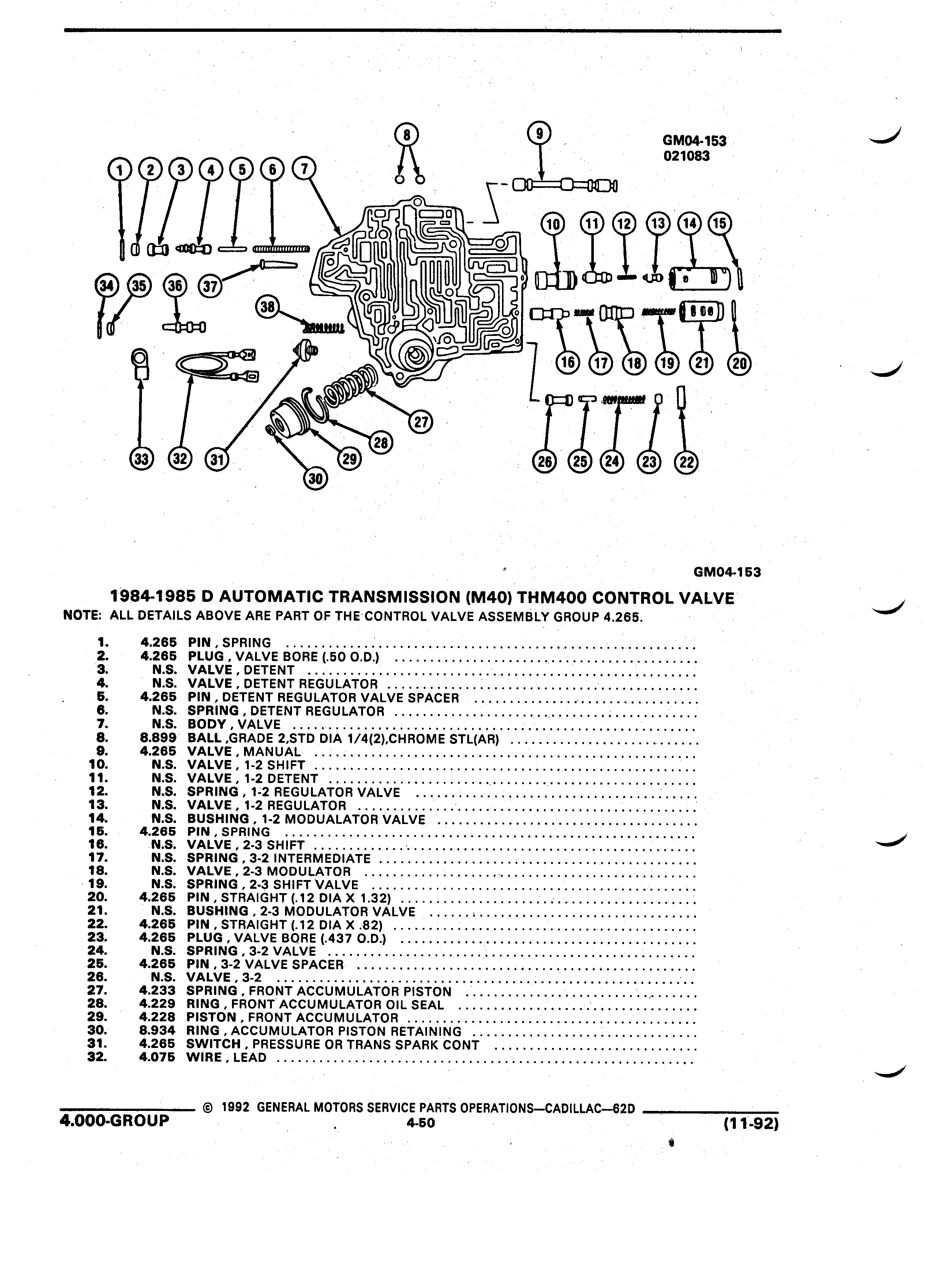

6 V I GM04 153 J 021083 0 0 C O X I I gjgpo 0 m A M 1 m u u uw g U U V Q H H Fil J n n u III I nl L O 9 D CET ln IIl KP I A Q V G I V 3 fl IB GD QD GI G0 A J q 4E l Q q 4 V I I MI G9 2 I GM04 153 1984 1985 D AUTOMATIC TRANSMISSION M40 THM400 CONTROL VALVE NOTE ALL DETAILS ABOVE ARE PART OF THEICONTROL VALVE ASSEMBLY GROUP 4 265 1 4 265 PIN SPRING 2 4 265 PLUG VALVE BORE 50 O D 3 3 N S VALVE DETENT I 4 N S VALVE DETENT REGULATOR L I 5 4 265 PIN DETENT REGULATOR VALVE SPACER 6 N S SPRING DETENT REGULATOR 4 7 N S BODY VALVE 8 8 899 BALL GRADE 2 STD DIA 1 4 2 CHROME STL AR 9 4 265 VALVE MANUAL 10 N S VALVE 1 2 SHIFT I 11 N S VALVE 1 2 DETENT 3 I 12 N S SPRING 1 2 REGULATOR VALVE 13 N S VALVE 1 2 REGULATOR I 14 N S BUSHING 1 2 MODUALATOR VALVE 15 4 265 PIN SPRING g 16 N S VALVE 2 3 SHIFT 17 N S SPRING 3 2 INTERMEDIATE 18 N S VALVE 2 3 MODULATOR I 19 N S SPRING 2 3 SHIFT VALVE 20 4 265 PIN STRAIGHT 12 DIA X 1 32 L 21 N S BUSHING 2 3 MODULATOR VALVE I 22 4 265 PIN STRAIGHT 12 DIA X 82 23 4 265 PLUG VALVE BORE 437 O D 24 N S SPRING 3 2 VALVE 25 4 265 PIN 3 2 VALVE SPACER 26 N S VALVE 3 2 I 27 4 233 SPRING FRONT ACCUMULATOR PISTON 28 4 229 RING FRONT ACCUMULATOR OIL SEAL I 29 4 228 PISTON FRONT ACCUMULATOR 30 8 934 RING ACCUMULATOR PISTON RETAINING 31 4 265 SWITCH PRESSURE OR TRANS SPARK CONT 32 4 075 WIRE LEAD I 1 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS CADILLAC 62D T 4 000 GROUP 4 50 1 1 92 g
