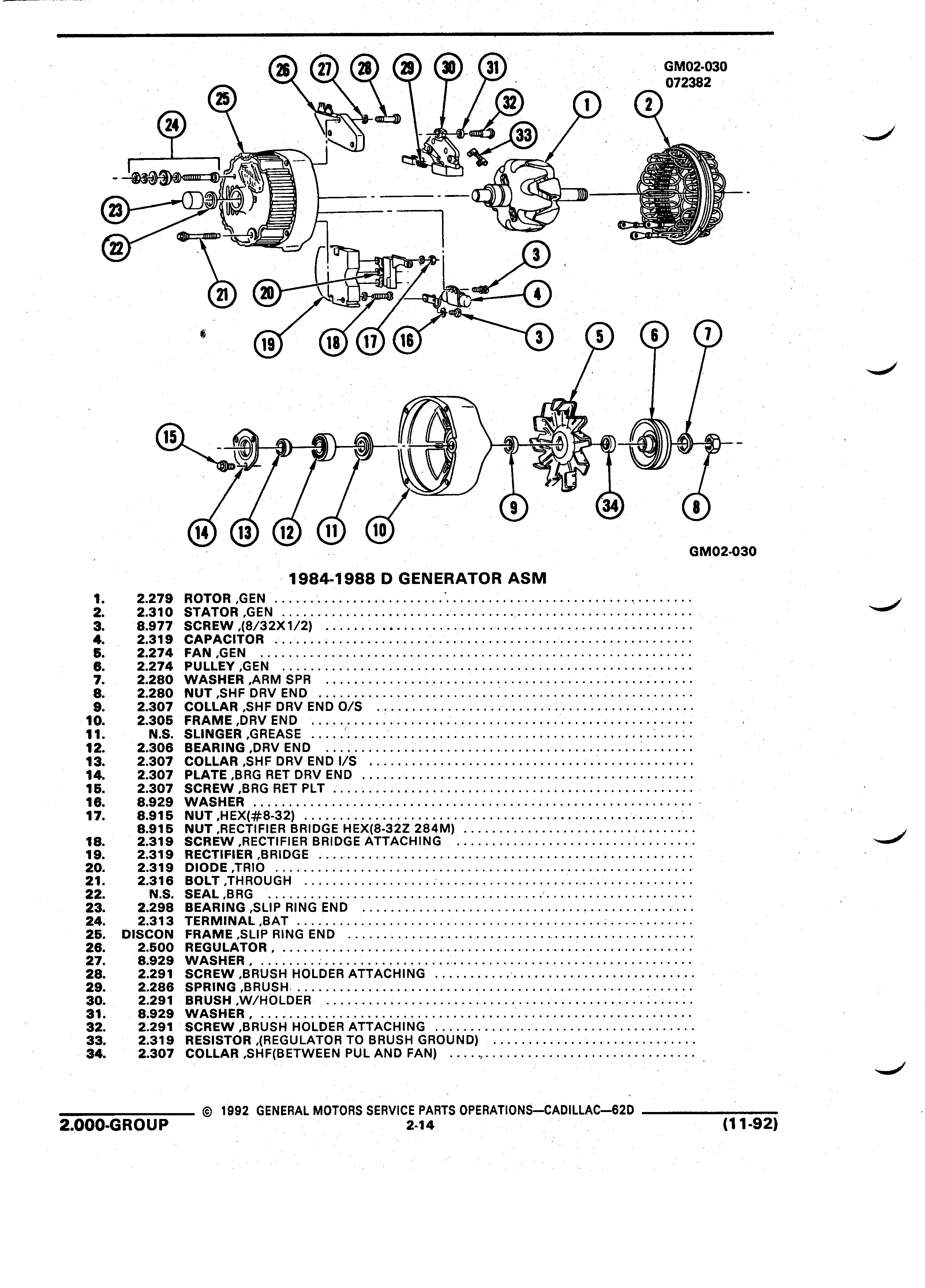

N V A O O O O I I M 072382 G9 as o I I 0 A A 1 N V V I A I W I A I 1 E 2 S W i I B Gr V TEL 5 5 e 5 I T I EFF I K ji mn flu I is H ca an on ca 6 0 0 A 9 T L 4 i M c A g 1 sa W Qi I I A K f GM02 030 1984 1988 D GENERATOR ASM I 1 2 279 ROTOR GEN 2 2 310 STATOR GEN I 3 8 977 SCREW 8 32X1 2 4 2 319 CAPACITOR 5 2 274 FAN GEN 6 2 274 PULLEY GEN 7 2 280 WASHER ARM SPR 8 2 280 NUT SHF DRV END 9 2 307 COLLAR SHF DRV END O S 9 10 2 305 FRAME DRV END 5 11 N S SLINGER GREASE I 12 2 306 BEARING DRV END 13 2 307 COLLAR SHF DRV END I S 14 2 307 PLATE BRG RET DRV END 15 2 307 SCREW BRG RET PLT 16 8 929 WASHER 9 17 8 915 NUT HEX 8 32 I 8 915 NUT RECTIFIER BRIDGE HEX 8 322 284M 18 2 319 SCREW RECTlFIER BRIDGE ATTACHING LJ 19 2 319 I RECTIFIER BRlDGE 20 2 319 DIODE TRI0 21 2 316 BOLT THROUGH 22 N S SEAL BRG I V 23 2 298 BEARING SLIP RING END 24 2 313 TERMINAL BAT 25 DISCON FRAME SLIP RING END 26 2 500 REGULATOR 27 8 929 WASHER I 28 2 291 SCREW BRUSH HOLDER ATTACHING 29 2 286 SPRING BRUSH 30 2 291 BRUSH W HOLDER 31 8 929 WASHER 32 2 291 SCREW BRUSH HOLDER ATTACHING 33 2 319 RESISTOR REGULATOR TO BRUSH GROUND 34 2 307 COLLAR SHF BETWEEN PUL AND FAN 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS CAD LLAC 62D 2 000 GROUP 2 14 A I1 1 92
