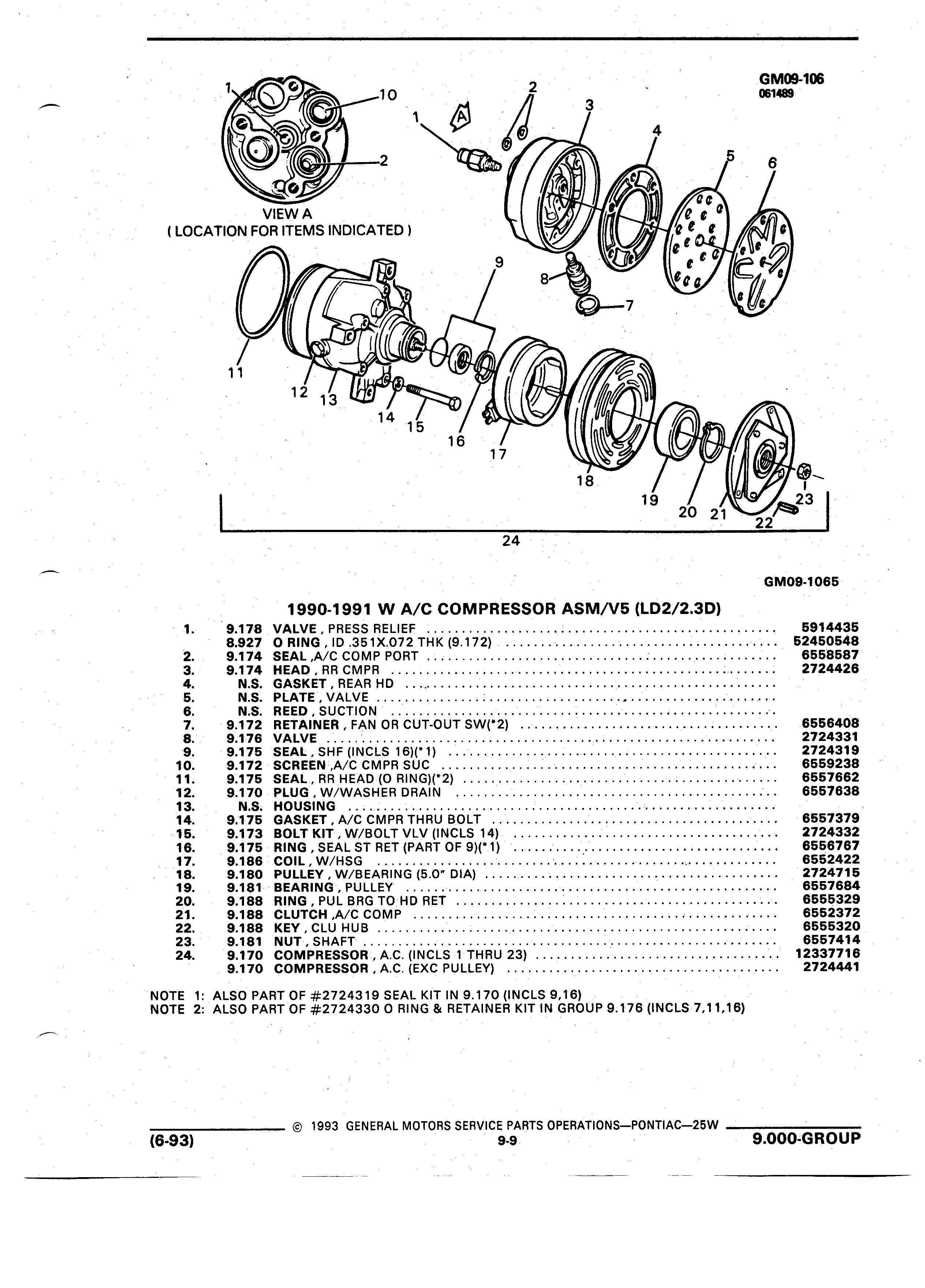

4 GM09 1 B I 10 I 2 I cams I D G 4 2 7 6 2 4 J I p I v w 0c vsaw A I U g G I LOCATION FOR ITEMS INDICATED f wl 0 I I II v T3 9 U c C L7 L7 1 8 0 4 c Y 7 M I 1 B I O I 7 7 1 f 11 0 g 0 p 1 2 0 V Iu Q I 3 1 W 741 I V 1 16 X 41 17 y I I 18 J 19 I 23 I 20 21 22 I I 24 U IA A I GM09 1065 U S 1990 1991 W A C COMPRESSOR ASM V5 LD2 2 3D 1 9 178 VALVE PRESS RELIEF 5914435 8 927 O RING ID 351X O72 THK 9 172 52450548 2 9 174 SEAL A C COMP PORT 6 558587 3 9 174 HEAD RR CMPR 2724426 4 N S GASKET REAR HD 5 N S PLATE VALVE 6 N S REED SUCTION 7 9 172 RETAINER FAN OR CUT OUT SW 2 6556408 8 9 176 VALVE 2724331 9 9 175 SEAL SHF INCLS 16 1 2724319 10 9 172 SCREEN A C CMPR SUC Q 6559238 11 9 175 SEAL RR HEAD O RING 2 6557662 12 9 170 PLUG W WASHER DRAIN 6557638 13 N S HOUSING 14 9 175 GASKET A C CMPR THRU BOLT 6557379 15 9 173 BOLT KIT W BOLT VLV INCLS 14 2724332 16 9 175 RING SEAL ST RET PART OF 9 1 I 6556767 17 9 186 COIL W HSG 6552422 18 9 180 PULLEY W BEARING 5 0 DIA 2724715 19 9 181 BEARING PULLEY 6557684 20 9 188 RING PUL BRG TO HD RET Q 6555329 21 9 188 CLUTCH A C COMP I 6552372 22 9 188 KEY CLU HUB 6555320 23 9 181 NUT SHAFT 6557414 24 9 170 COMPRESSOR A C INCLS 1 THRU 23 12337716 9 170 COMPRESSOR A C EXC PULLEY 2724441 NOTE 1 ALSO PART OF 2724319 SEAL KIT IN 9 170 INCLS 9 16 NOTE 2 ALSO PART OF 2724330 O RING RETAINER KIT IN GROUP 9 176 INCLS 7 11 16 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS PONTIAC 25W 6 93 9 9 9 000 GROUP
