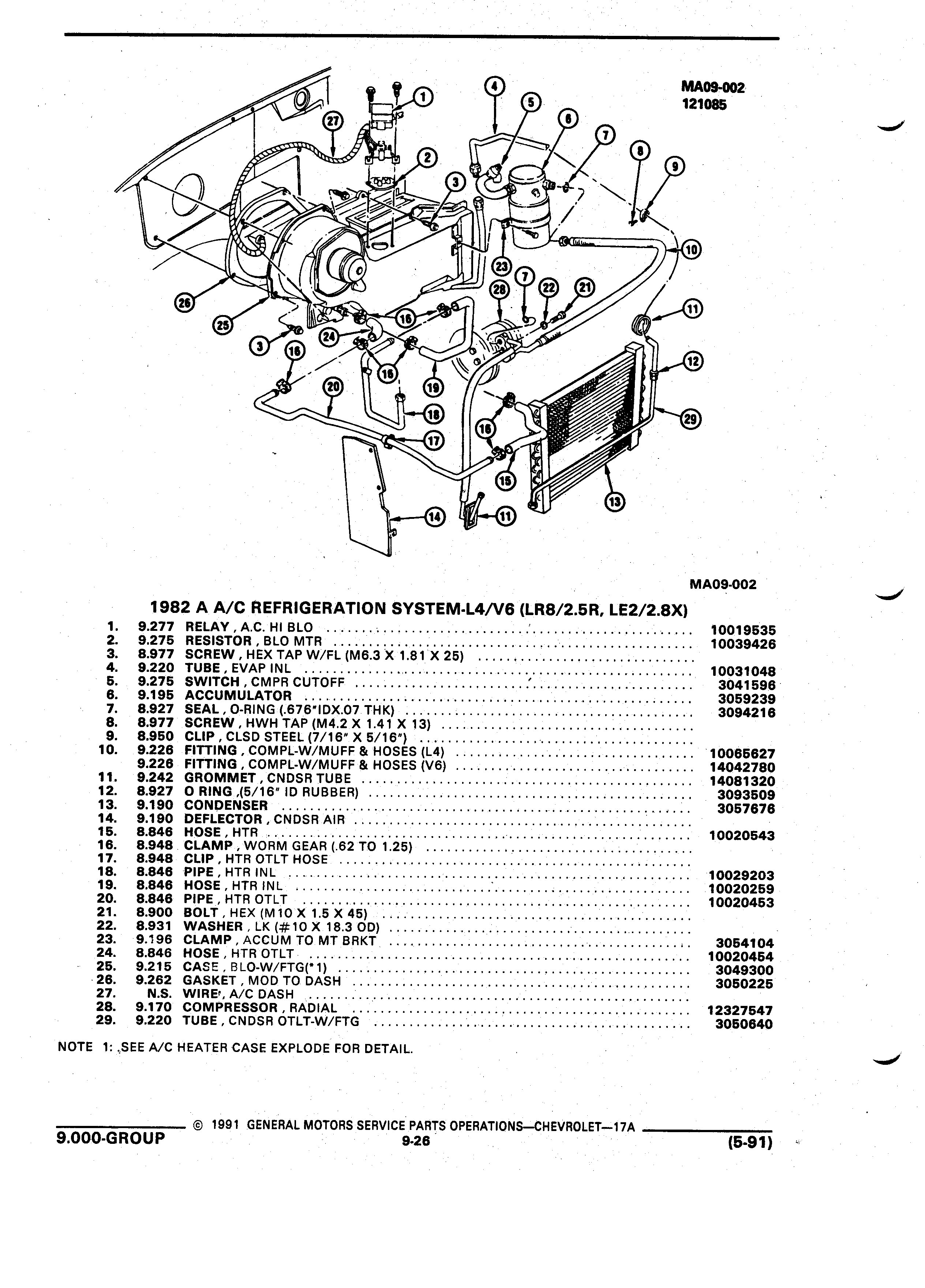

i I I MA09 002 T 0 121085 Z I v z 0 4 f r E l y V 0 T 0 V 4 fl Q lg 7 V g f rl i g qa r dl I er 1 K S D W V I y JA I I IA T Q Q 9 A 0 I Q Y Q f I WI v V I I I A D x I Ir A I I I I I MA09 002 I 1982 A A C REFRIGERATION SYSTEM L4N6 LR8 2 5R LE2 2 8X 1 9 277 RELAY A C HI BLO I 0019535 2 9 275 RESISTOR BLO MTR I 10039426 3 8 977 SCREW HEX TAP W FL M6 3 X 1 81 X 25 4 9 220 TUBE EVAP INL 10031048 5 9 275 SWITCH CMPR CUTOFF 3 041596 6 9 195 ACCUMULATOR 3059239 7 8 927 SEAL O RING 676 IDX 07 THK 3094216 8 8 977 SCREW HWH TAP M4 2 X 1 41 X 13 9 8 950 CLIP CLSD STEEL 7 16 X 5 16 10 9 226 FITTING COMPL W MUFF HOSES L4 10065627 9 226 FITTING COMPL W MUFF HOSES V6 14042780 1 1 9 242 GROMMET CNDSR TUBE 14081320 12 8 927 O RING 5 16 ID RUBBER 3093509 13 9 190 CONDENSER Q 3057676 14 9 190 DEFLECTOR CNDSR AIR 15 8 846 HOSE HTR 10020543 16 8 948 CLAMP WORM GEAR 62 TO 1 25 17 8 948 CLIP HTR OTLT HOSE 18 8 846 PIPE HTR INL 10029203 V 19 8 846 HOSE HTR INL 10020259 20 8 846 PIPE HTR OTLT 10020453 21 8 900 BOLT HEX M10 X 1 5 X 45 22 8 931 WASHER LK 10 X 18 3 OD I 23 9 196 CLAMP ACCUM TO MT BRKT 3054104 24 8 846 HOSE HTR OTLT 10020454 25 9 215 CASE BLO W FTG 1 3049300 26 9 262 GASKET MOD TO DASH 3050225 I 27 N S WIRE A C DASH 28 9 170 COMPRESSOR RADIAL 12327547 29 9 220 TUBE CNDSR OTLT W FTG 3050640 NOTE 1 SEE A C HEATER CASE EXPLODE FOR DETAIL i 1991 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET 17A i 9 000 GROUP 9 26 1 I I 5 91
