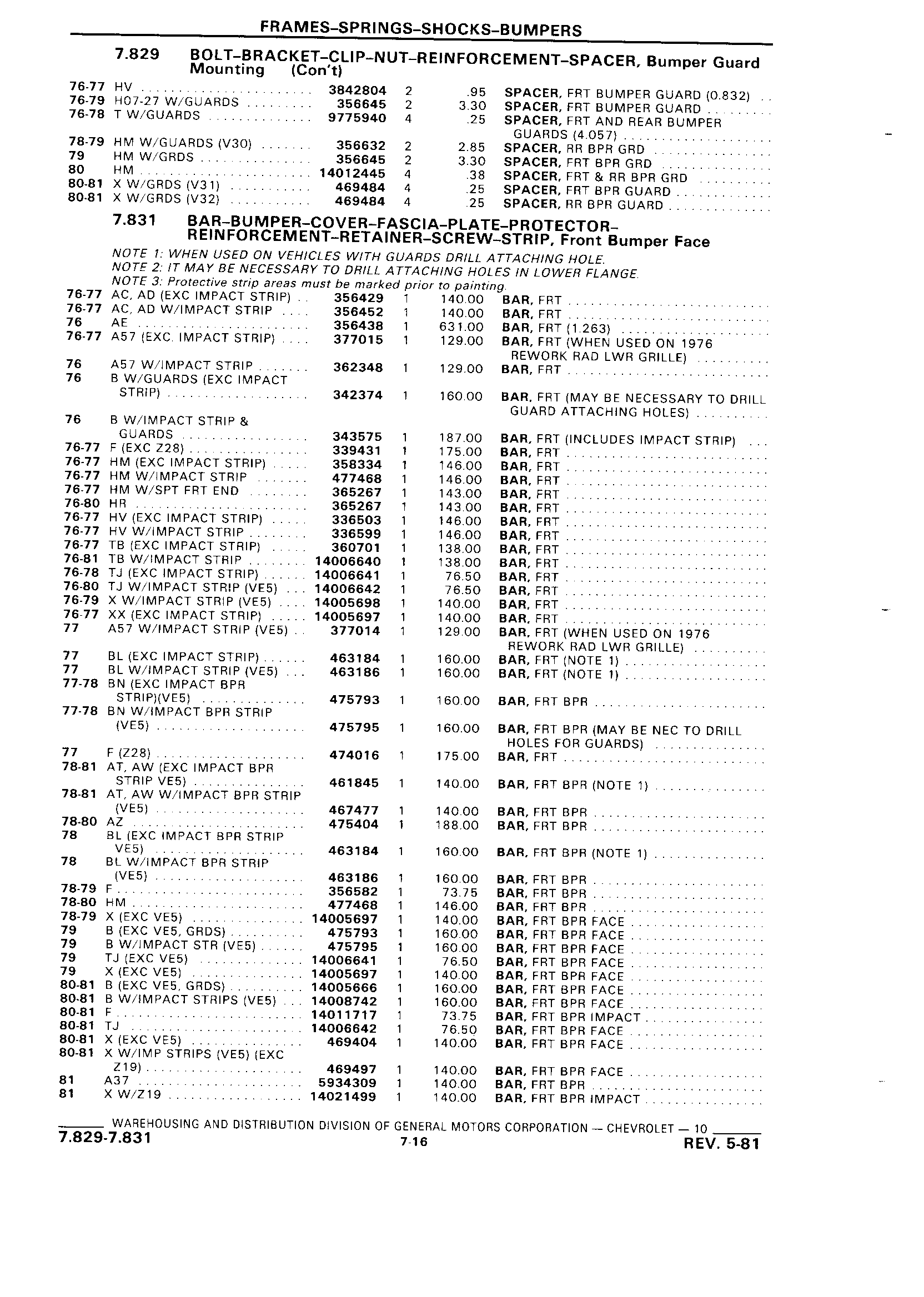

FRAMES SPRINGS SHOCKS BUMPERS 7 829 BOLT BRACKET CLlP NUT REINFORCEMENT SPACER Bumper Guard Mounting C0n t 76 77 HV 3842804 2 95 SPACER FRT BUMPER GUARD 0 832 76 79 I I07 27 WIGUARDS 356645 2 3 30 SPACER FRT BUMPER GUARD 76 78 T W GUARDS 9775940 4 25 SPACER FRT AND REAR BUMPER GUARDS 4 057 78 79 HM VV1GUARDS V30 356632 2 2 85 SPACER RR BPR GRD 79 HM W GRDS 356645 2 3 30 SPACER FRT BPR GRD 80 HM 14012445 4 38 SPACER FRT RR BPR GRD 80 81 X Wt GRDS V31 469484 4 25 SPACER FRT BPR GUARD 80 81 X W IGRDS V32 469484 4 25 SPACER RR BPR GUARD 7 831 BAR BUMPER COVER FASCIA PLATE PROTECTOR REINFORCEMENT RETAINER SCREW STRIP Front Bumper Face NOTE I WHEN USED ON VEHICLES WITH GUARDS DRILL ATTACH NG HOLE NOTE 2 IT MAY BE NECESSARY TO DRILL ATTACHING HOLES IN LOWER FLANGE NOTE 3 Protective strip areas must be marked prior to painting 76 77 AC AD EXC IMPACT STRIP 356429 1 140 00 BAR FRT 76 77 AC AD W IMPACT STRIP 356452 1 140 00 BAR FRT 76 AE 356438 1 631 00 BAR FRT 1263 76 77 A57 EXC IMPACT STRIP 377015 1 129 00 BAR FRT WHEN USED ON 1976 REWORK RAD LWR GRILLE 76 A57 W IMPACT STRIP 362348 1 129 00 BAR FRT 76 B W GUARDS EXC IMPACT STRIP 342374 1 160 00 BAR FRT MAY BE NECESSARY TO DRILL GUARD ATTACHING HOLES 76 B WWIMPACT STRIP GUARDS 343575 1 187 00 BAR FRT INCLUDES IMPACT STRIP 76 77 F EXC 228 339431 1 175 00 BAR FRT 76 77 HM EXC IMPACT STRIP 358334 1 146 00 BAR FRT 76 77 HM WIIMPACT STRIP 477468 1 146 00 BAR FRT 76 77 HM WISPT FRT END 365267 1 143 00 BAR FRT 76 80 HR 365267 1 143 O0 BAR FRT 76 77 HV EXC IMPACT STRIP 336503 1 146 00 BAR FRT 76 77 HV W IMPACT STRIP 336599 1 146 00 BAR FRT 76 77 TB EXC IMPACT STRIP 360701 1 138 00 BAR FRT 76 81 TB W IMPACT STRIP 14006640 I 138 00 BAR FRT 76 78 TJ EXC IMPACT STRIP 14006641 1 76 50 BAR FRT 76 80 TJ WIIMPACT STRIP VE5 14006642 1 76 50 BAR FRT 76 79 X W IMPACT STRIP VE5 14005698 1 140 00 BAR FRT 76 77 XX EXC IMPACT STRIP 14005697 1 140 00 BAR FRT 77 A57 W IMPACT STRIP VE5 377014 I 129 00 BAR FRT WHEN USED ON 1976 REWORK RAD LWR GRILLE 77 BL EXC IMPACT STRIP 463184 1 160 00 BAR FRT NOTE 1 77 BL W IMPACT STRIP VE5 463186 1 160 00 BAR FRT NOTE 1 77 78 BN EXC IMPACT BPR STRIP VE5 475793 1 160 00 BAR FRT BPR 77 78 BN W IMPACT BPR STRIP VE5 475795 1 160 00 BAR FRT BPR MAY BE NEC TO DRILL HOLES FOR GUARDS 77 F 228 474016 1 175 00 BAR FRT 78 81 AT AW EXC IMPACT BPR STRIP VE5 461845 1 140 00 BAR FRT BPR NOTE 1 78 81 AT AW W IMPACT BPR STRIP VE5 467477 1 14000 BAR FRT BPR 78 80 AZ 475404 1 188 00 BAR FRT BPR 78 BL EXC IMPACT BPR STRIP VE5 463184 1 16000 BAR FRT BPR NOTE 1 78 BL W IMPACT BPR STRIP VE5 463186 1 160 O0 BAR FRT BPR 78 79 F 356582 1 73 75 BAR FRT BPR 78 80 HM 477468 1 146 00 BAR FRT BPR 78 79 X EXC VE5 14005697 1 140 00 BAR FRT BPR FACE 79 B EXC VE5 GRDS 475793 1 16000 BAR FRT BPR FACE 79 B W IMPACT STR VE5 475795 1 160 00 BAR FRT BPR FACE 79 TJ EXC VE5 14006641 1 76 50 BAR FRT BPR FACE 79 X EXC VE5 14005697 1 140 00 BAR FRT BPR FACE 80 81 B EXC VE5 GRDS 14005666 1 160 00 BAR FRT BPR FACE 80 81 B WIIMPACT STRIPS VE5 14008742 1 160 00 BAR FRT BPR FACE 80 81 F 14011717 1 73 75 BAR FRT BPRIMPACT 80 81 TJ 14006642 1 76 50 BAR FRT BPR FACE 80 81 X EXC VE5 469404 1 140 00 BAR FRT BPR FACE 80 81 X WIIMP STRIPS VE5 EXC 219 469497 1 140 00 BAR FRT BPR FACE 81 A37 5934309 1 140 00 BAR FRT BPR 81 X W Z19 14021499 1 140 00 BAR FRT BPR IMPACT WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 10 7 829 7 831 7 16 REV 5 81
