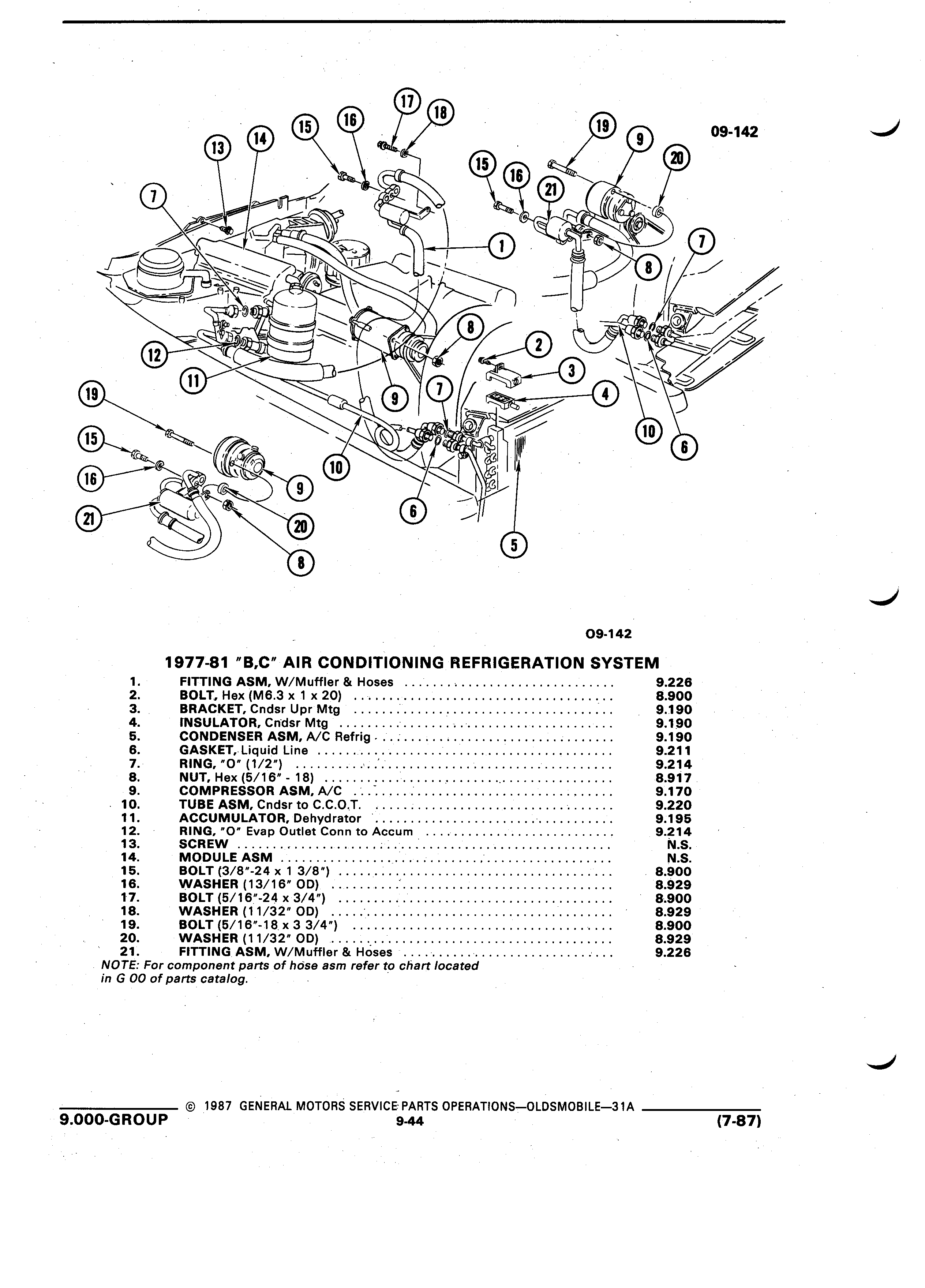

I Q A qi Q I l G o 09 142 J r Y R o I ll I Q r W S I f 0 f f I I j E I A N 9 Q A M I A A me 4 I 0 ggt MN B H 7 F k g A Q 7 Q Iv g Lz 3 A Q Q I o 0 o I Q Q I l 4 i h I 1 R gg TIE I I Q 9 6 G I 4 7 09 142 1977 81 B C AIR CONDITIONING REFRIGERATION SYSTEM 1 FITTING ASM W Muffler Hoses I 9 226 2 BOLT Hex M6 3 x 1 x 20 8 900 3 BRACKET Cndsr Upr Mtg 9 190 4 INSULATOR Cndsr Mtg 9 190 5 CONDENSER ASM A C Refrig 9 190 6 GASKET Liquid Line 9 211 7 RING O 1 2 9 214 8 NUT Hex 5 16 18 8 917 9 COMPRESSOR ASM A C 9 170 10 TUBE ASM Cndsr to C C O T 9 220 11 ACCUMULATOR Dehydrator 9 195 12 I RING O Evap Outlet Conn to Accum 9 214 13 SCREW N S 14 MODULE ASM N S 15 BOLT 3 8 24 x 1 3 8 8 900 16 WASHER 13 16 OD 8 929 17 BOLT 5 16f 24 x 3 4 8 900 18 WASHER 11 32 OD 8 929 I 19 BOLT 5 16 18 x 3 3 4 8 900 20 WASHER 11 32 OD 8 929 21 FITTING ASM W Muffler Hoses I 9 226 NOTE For component parts of hose asm refer to chart located in G O0 of parts catalog 1987 GENERAL MOTORS SERVICE PARTS 0PERATIONS 0LDSMOBILE 31A I I 9 000 GROUP 9 44 7 87
