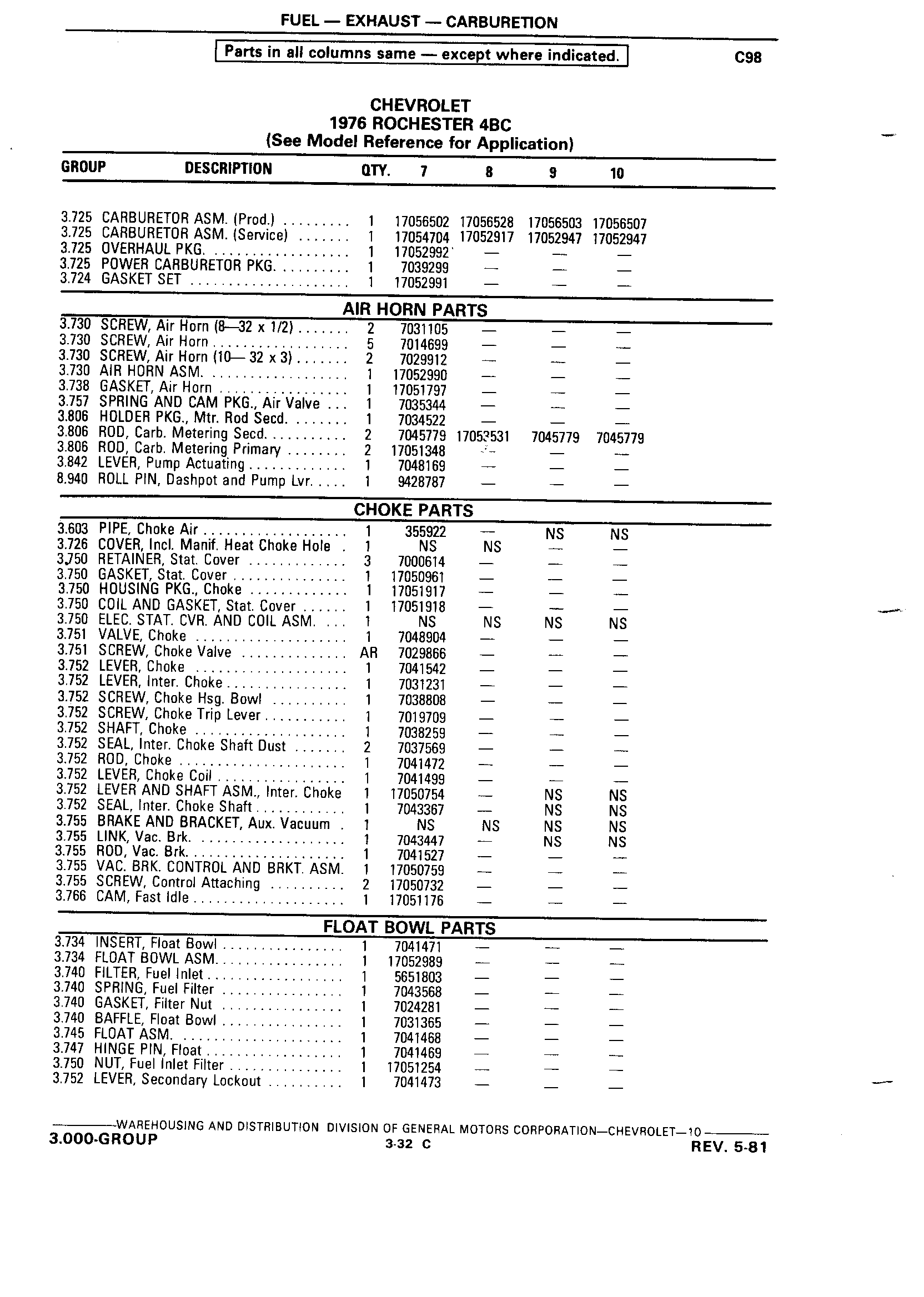

FUEL EXHAUST CARBURETION Parts in all columns same except where indicated C98 CHEVROLET 1976 ROCHESTER 4BC See Model Reference for Application GROUP DESCRIPTION OTY 7 8 Sl 10 3 725 CARBURETOR ASM Prod 1 17056502 17056528 17056503 17056507 3 725 CARBURETOR ASM Service 1 17054704 17052917 17052947 17052947 3 725 OVERHAUL PKG 1 17052992 3 725 POWER CARBURETOR PKG 1 7039299 3 724 GASKET SET 1 17052991 AIR HORN PARTS 3 730 SCREW Air Horn 8 32 x 1 2 2 7031105 3 730 SCREW Air Horn 5 7014699 3 730 SCREW Air Horn 110 32 x 3 2 7029912 3 730 AIR HORN ASM 1 17052990 3 738 GASKET Air Horn 1 17051797 3 757 SPRING AND CAM PKG Air Valve 1 7035344 3 806 HOLDER PKG Mtr Rod Send 1 7034522 3 806 ROD Carb Metering Secd 2 7045779 17053531 7045779 7045779 3 806 ROD Carb Metering Primary 2 17051348 3 842 LEVER Pump Actuating 1 7048169 8 940 ROLL PIN Dashpot and Pump Lvr 1 9428787 CHOKE PARTS 3 503 PIPE Choke Air 1 355922 NS NS 3 726 COVER Incl Manif Heat Choke Hole 1 NS NS 3 750 RETAINER Stat Cover 3 7000614 3 750 GASKET Stat Cover 1 17050961 3 750 HOUSING PKG Choke 1 17051917 3 750 COIL AND GASKET Stat Cover 1 17051918 r 3 750 ELEC STAT CVR AND COIL ASM 1 NS NS NS NS 3 751 VALVE Choke 1 7048904 3 751 SCREW Choke Valve AR 7029866 3 752 LEVER Choke 1 7041542 3 752 LEVER Inter Choke 1 7031231 3 752 SCREW Choke Hsg Bowl 1 7038808 3 752 SCREW Choke Trip Lever 1 7019709 3 752 SHAFT Choke 1 7038259 3 752 SEAL Inter Choke Shaft Dust 2 7037569 3 752 ROD Choke 1 7041472 3 752 LEVER Choke Coll 1 7041499 3 752 LEVER AND SHAFT ASM Inter Choke 1 17050754 NS NS 3 752 SEAL Inter Choke Shaft I 7043367 NS NS 3 755 BRAKE AND BRACKET Aux Vacuum 1 NS NS NS NS 3 755 LINK Vac Brk 1 7043447 NS NS 3 755 ROD Vac Brk 1 7041527 3 755 VAC BRK CONTROL AND BRKT ASM 1 17050759 3 755 SCREW Control Attaching 2 17050732 3 766 CAM Fast Idle 1 17051176 FLOAT BOWL PARTS 3 734 INSERT Float Bowl 1 7041471 3 734 FLOAT BOWL ASM I 17052989 3 740 FILTER Fuel Inlet 1 5651803 3 740 SPRING Fuel Filter 1 7043568 3 740 GASKET Filter Nut I 7024281 3 740 BAFFLE Float Bowl 1 7031365 3 745 FLOAT ASM 1 7041458 3 747 HINGE PIN Float 1 7041469 3 750 NUT Fuel Inlet Filter 1 17051254 3 752 LEVER Secondary Lockout 1 7041473 WAFIEHOUSlNG AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEvROLET 10 3 000 GROUP 3 sz c REV 5 81
