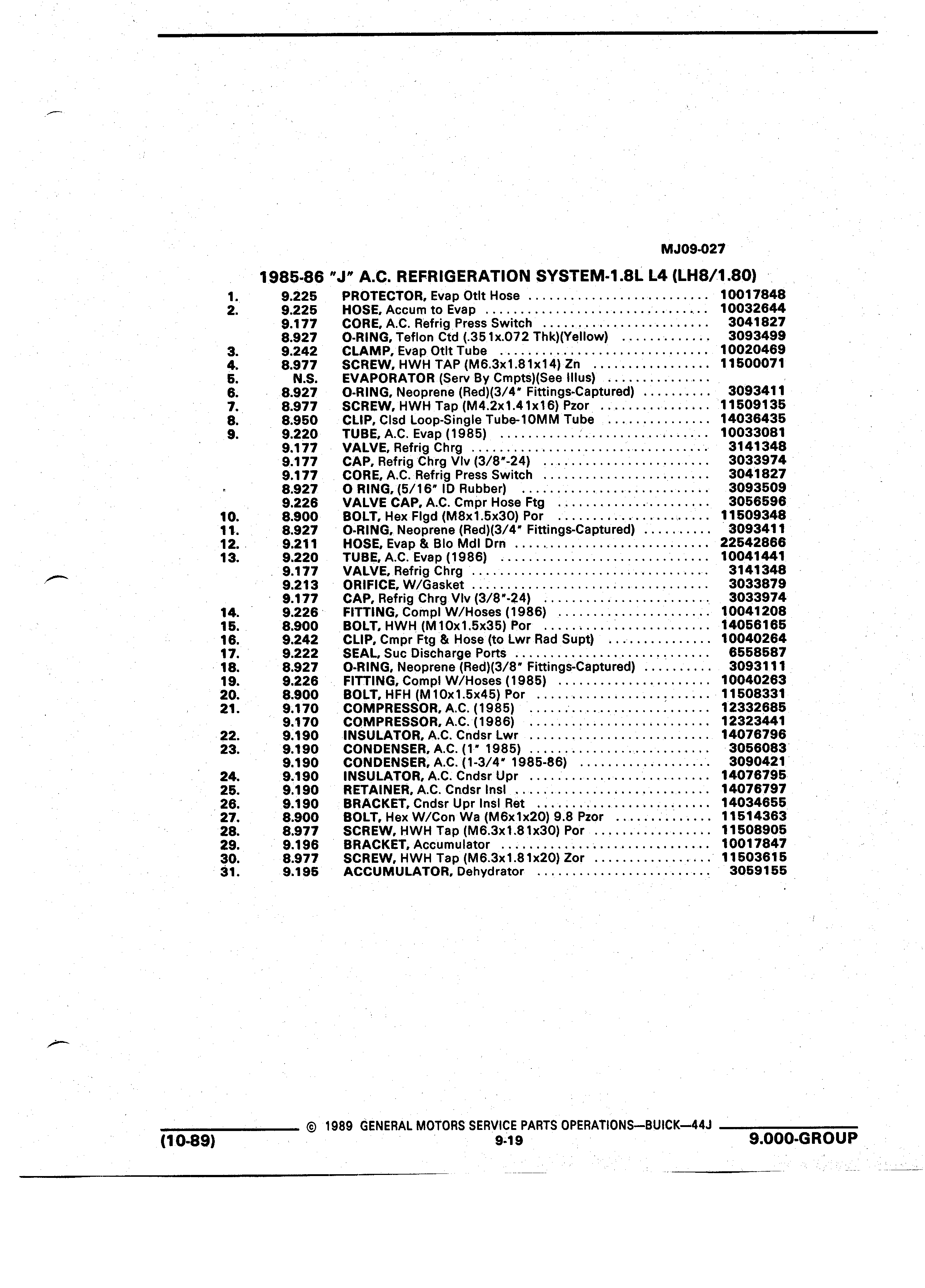

MJ09 027 1985 86 J A C REFRIGERATION SYSTEM 1 8L L4 LH8 1 80 3 1 9 225 PROTECTOR Evap Otlt Hose 10017848 2 9 225 HOSE Accum to Evap A 10032644 9 177 CORE A C Refrig Press Switch 3041827 8 927 0 RING Teflon Ctd 351x 072 Thk YeI ow 3093499 3 9 242 CLAMP Evap Otlt Tube 10020469 4 8 977 SCREW HWH TAP M6 3x1 81x14 Zn 1 1 500071 5 N S EVAPORATOR Serv By Cmpts See lllus 6 8 927 0 RING Neoprene Red 3 4 Fittings Captured 309341 1 A 7 8 977 SCREW HWH Tap M4 2x1 41x16 Pzor 11509135 8 8 950 CLIP Clsd Loop Single Tube 10MM Tube 14036435 9 9 220 TUBE A C Evap 1985 I 1 0033081 l 9 177 VALVE Refrig Chrg I 3141348 9 177 CAP Refrig Chrg Vlv 3 8 24 3033974 9 177 CORE A C Refrig Press Switch 3041827 8 927 0 RING 5 16 ID Rubber 3093509 9 226 VALVE CAP A C Cmpr Hose Ftg 3056596 10 8 900 BOLT Hex Flgd M8x1 5x30 Por 11509348 1 1 8 927 O RlNG Neoprene Red 3 4 Fittings Captured 309341 1 12 9 211 HOSE Evap Blo Mdl Drn 22542866 13 9 220 TUBE A C Evap 1986 10041441 9 177 VALVE Refrig Chrg 3141348 9 213 ORIFICE W Gasket 3033879 9 177 CAP Refrig Chrg Vlv 3 8 24 3033974 14 9 226 FITTING Compl W Hoses 1986 10041208 15 8 900 BOLT HWH M 10x1 5x35 Por 1 4056165 16 9 242 CLIP Cmpr Ftg Hose to Lwr Rad Supt 10040264 I 17 9 222 SEAL Suc Discharge Ports 6558587 18 8 927 0 RING Neoprene Red 3 8 Fittings Captured 30931 1 1 A 19 9 226 FITTING Compl W Hoses 1985 10040263 20 8 900 BOLT HFH M 10x1 5x45 Por 11508331 21 9 170 T COMPRESSOR A C 1985 1 2332685 9 170 COMPRESSOR A C 1986 12323441 22 9 190 INSULATOR A C Cndsr Lwr 14076796 23 9 190 CONDENSER A C 1 1985 3056083 A 9 190 CONDENSER A C 1 3 4 1985 86 3090421 24 9 190 INSULATOR A C Cndsr Upr 14076795 J 25 9 1 90 RETAINER A C Cndsr Insl 1 4076797 y 26 9 190 BRACKET Cndsr Upr Insl Ret 14034655 27 8 900 BOLT Hex W Con Wa M6x1x20 9 8 Pzor 11514363 A 28 8 977 SCREW HWH Tap M6 3x1 81x30 Por 1 1508905 29 9 196 BRACKET Accumulator 1 0017847 30 8 977 SCREW HWH Tap M6 3x1 81x20 Zor 11503615 31 9 195 ACCUMULATOR Dehydrator 3059155 f i 1989 GENERAL MOTORS SERVICE PARTS OPERATl0NS BUlCK 44J L 1 0 89 9 1 s 9 000 GROUP
