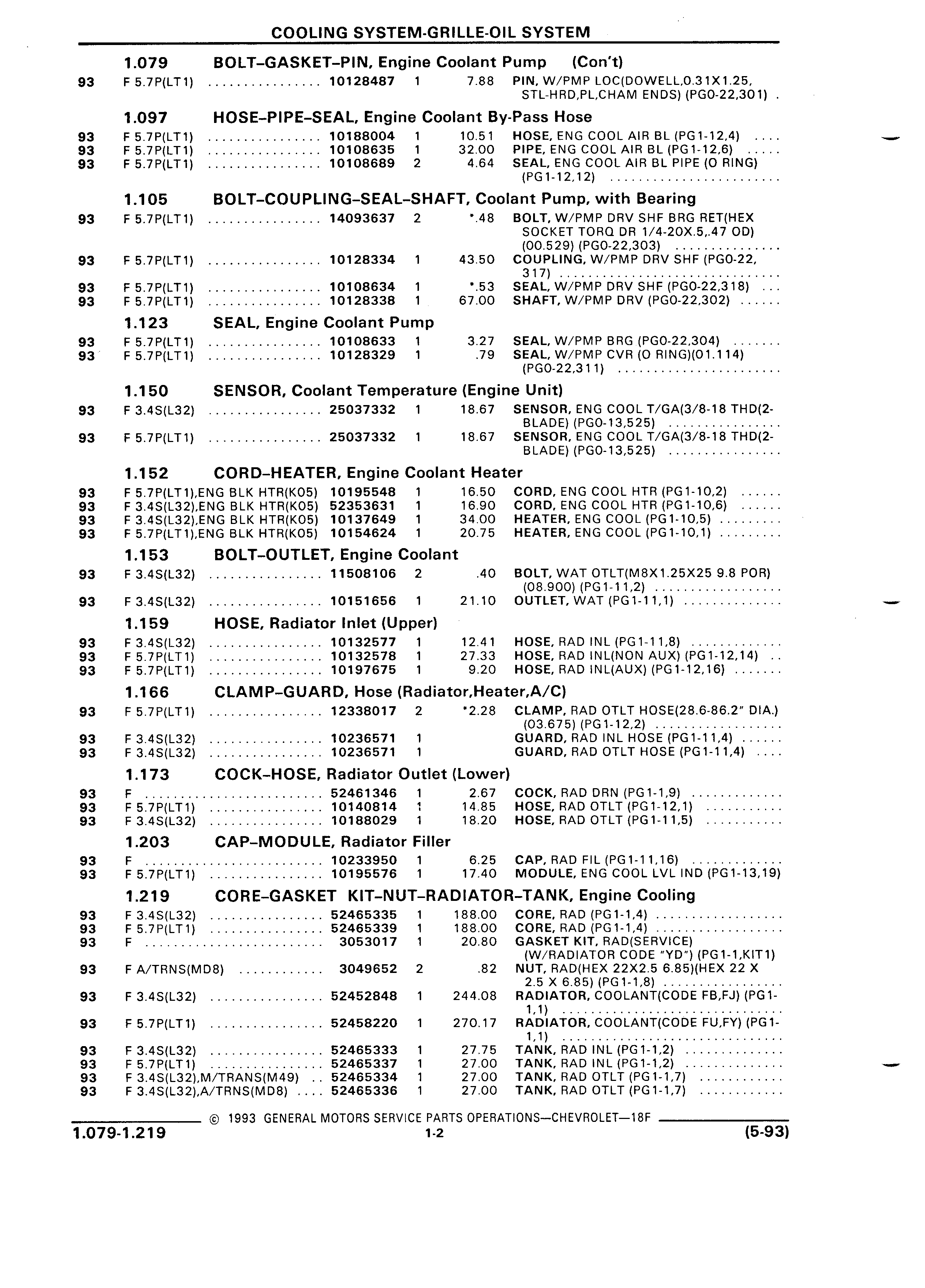

COOLING SYSTEM GRILLE OIL SYSTEM l 1 079 BOLT GASKET PIN Engine Coolant Pump Con t 93 F 5 7P LT1 10128487 1 7 88 PIN W PMP LOC DOWELL 0 31X1 25 STL HRD PL CHAM ENDS PGO 22 301 1 097 HOSE PIPE SEAL Engine Coolant By Pass Hose 93 F 5 7P LT1 10188004 1 10 51 HOSE ENG COOL AIR BL PG1 12 4 93 F 5 7P LT1 10108635 1 32 00 PIPE ENG COOL AIR BL PG1 12 6 93 F 5 7P LT1 10108689 2 4 64 SEAL ENG COOL AIR BL PIPE O RING PG1 12 12 1 105 BOLT COUPLING SEAL SHAFT Coolant Pump with Bearing 93 F 5 7P LT1 14093637 2 48 BOLT W PMP DRV SHF BRG RET HEX SOCKET TORO DR 1 4 20X 5 47 OD 00 529 PGO 22 303 93 F 5 7P LT1 10128334 1 43 50 COUPLING W PIVIP DRV SHF PGO 22 317 93 F 5 7P LT1 10108634 1 53 SEAL W PMP DRV SHF PGO 22 318 93 F 5 7P LT1 10128338 1 67 00 SHAFT W PMP DRV PGO 22 302 1 123 SEAL Engine Coolant Pump 93 F 5 7P LT1 10108633 1 3 27 SEAL W PMP BRG PGO 22 304 93 F 5 7P LT1 10128329 1 79 SEAL W PMP CVR O R NG 01 114 PGO 22 311 1 150 SENSOR Coolant Temperature Engine Unit 93 F 3 4S L32 25037332 1 18 67 SENSOR ENG COOL T GA 3 8 18 THD 2 BLADE PGO 13 525 93 F 5 7P LT1 25037332 1 18 67 SENSOR ENG COOL T GA 3 8 18 THD 2 BLADE PGO 13 525 1 152 CORD HEATER Engine Coolant Heater 93 F 5 7P LT1 ENG BLK HTR K05 10195548 1 16 50 CORD ENG COOL HTR PG1 10 2 93 F 3 4S L32 ENG BLK HTR K05 52353631 1 16 90 CORD ENG COOL HTR PG1 10 6 93 F 3 4S L32 ENG BLK HTR K05 10137649 1 34 00 HEATER ENG COOL PG1 10 5 i 93 F 5 7P LT1 ENG BLK HTR K05 10154624 1 20 75 HEATER ENG COOL PG1 10 1 1 153 BOLT OUTLET Engine Coolant 93 F 3 4S L32 11508106 2 40 BOLT WAT OTLT M8X1 25X25 9 8 POR 08 900 PG1 11 2 93 F3 4S L32 10151656 1 21 10 OUTLET WAT PG1 11 1 1 159 HOSE Radiator Inlet Upper 93 F 3 4S L32 10132577 1 12 41 HOSE RAD INL PG1 11 8 93 F 5 7P LT1 10132578 1 27 33 HOSE RAD INL NON AUX PG1 12 14 93 F 5 7P LT1 10197675 1 9 20 HOSE RAD lNL AUX PG1 12 16 1 166 CLAMP GUARD Hose Radiator Heater A C 93 F 5 7P LT1 12338017 2 2 28 CLAMP RAD OTLT HOSE 28 6 86 2 DIA 03 675 PG1 12 2 93 F 3 4S L32 10236571 1 GUARD RAD INL HOSE PG1 11 4 93 F 3 4S L32 10236571 1 GUARD RAD OTLT HOSE PG1 11 4 1 173 COCK HOSE Radiator Outlet Lower 93 F 52461346 1 2 67 COCK RAD DRN PG1 1 9 93 F 5 7P LT1 10140814 1 14 85 HOSE RAD OTLT PG1 12 1 93 F 3 4S L32 10188029 1 18 20 HOSE RAD OTLT PG1 11 5 1 203 CAP MODULE Radiator Filler 93 F 10233950 1 6 25 CAP RAD FIL PG 1 1 1 16 93 F 5 7P LT1 10195576 1 17 40 MODULE ENG COOL LVL IND PG1 13 19 1 219 CORE GASKET KIT NUT RADIATOR TANK Engine Cooling 93 F 3 4S L32 52465335 1 188 00 CORE RAD PG1 1 4 93 F 5 7P LT1 52465339 1 188 00 CORE RAD PG1 1 4 93 F 3053017 1 20 80 GASKET KIT RAD SERVlCE W RADIATOR CODE YD PG1 1 KIT1 93 F A TRNS MD8 3049652 2 82 NUT RAD HEX 22X2 5 6 85 HEX 22 X 2 5 X 6 85 PG1 1 8 93 F 3 4S L32 52452848 1 244 08 RADIATOR COOLANT CODE FB FJ PG1 1 1 93 F 5 7P LT1 52458220 1 270 17 RADIATOR COOLANT CODE FU FY PG1 1 1 93 F 3 4S L32 52465333 1 27 75 TANK RAD INL PG1 1 2 93 F 5 7P LT1 52465337 1 27 00 TANK RAD INL PG1 1 2 93 F 3 4S L32 I I TRANS I I49 52465334 1 27 00 TANK RAD OTLT PG1 1 7 93 F 3 4S L32 A TRNS MD8 52465336 1 27 00 TANK RAD OTLT PG1 1 7 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 18F 1 079 1 219 1 2 5 93
