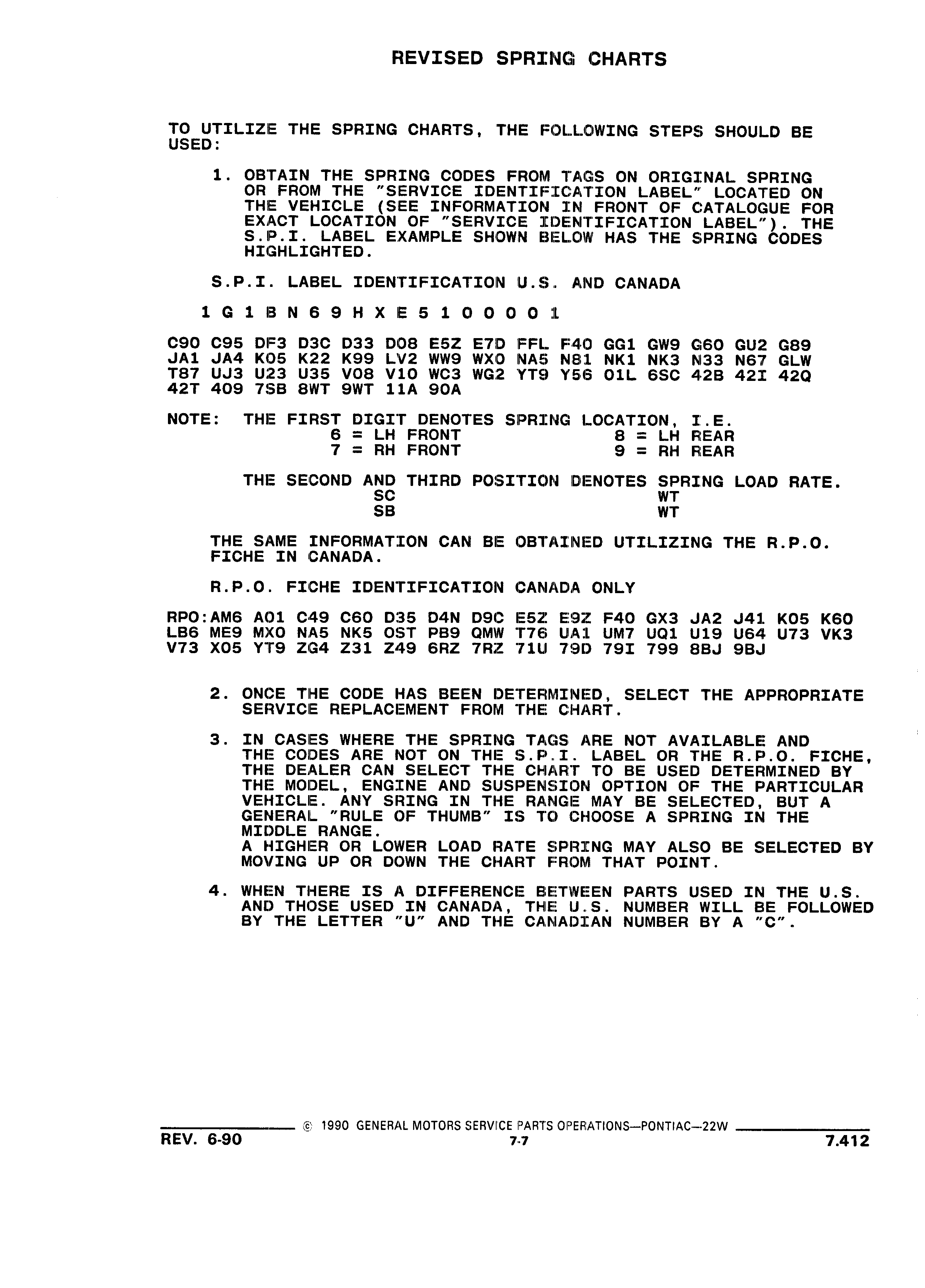

REVISED SPRINGS CHARTS TO UTILIZE THE SPRING CHARTS THE FOLLOWING STEPS SHOULD BE USED 1 OBTAIN THE SPRING CODES FROM TAGS ON ORIGINAL SPRING OR FROM THE SERVICE IDENTIFICATION LABEL LOCATED ON THE VEHICLE SEE INFORMATION IN FRONT OF CATALOGUE FOR EXACT LOCATION OF SERVICE IDENTIFICATION LABEL THE S P I LABEL EXAMPLE SHOWN BELOW HAS THE SPRING CODES HIGHLIGHTED S P I LABEL IDENTIFICATION U S AND CANADA 1 G 1 B N 6 9 H X E 5 1 O O 0 O I C90 C95 DF3 D3C D33 DC8 E5Z E7D FFL F40 GG1 GW9 G60 GU2 G89 JA1 JA4 KO5 K22 K99 LV2 WW9 WXC NA5 NS1 NK1 NK3 N33 N67 GLW T87 UJ3 U23 U35 VO8 V10 WC3 WG2 YTS YSC O1L 6SC 42B 42I 420 42T 409 7SB 8WT 9WT 11A 90A NOTE THE FIRST DIGIT DENOTES SPRING LOCATION I E 6 LH FRONT 8 LH REAR 7 RH FRONT 9 RH REAR THE SECOND AND THIRD POSITION DENOTES SPRING LOAD RATE SC WT SB WT THE SAME INFORMATION CAN BE OBTAINED UTILIZING THE R P O FICHE IN CANADA R P O FICHE IDENTIFICATION CANADA ONLY RPO AM6 A01 C49 C60 D35 D4N D9C ESZ ECZ F40 GX3 JA2 J41 KO5 KGO LB6 ME9 MXO NA5 NK5 OST PB9 OMW T7S UA1 UM7 UQ1 U19 U64 U73 VK3 V73 X05 YT9 ZC4 Z31 Z49 6RZ 7RZ 71U 79D 79I 799 8BJ 9BJ 2 ONCE THE CODE HAS BEEN DETERMINED SELECT THE APPROPRIATE SERVICE REPLACEMENT FROM THE CHART 3 IN CASES WHERE THE SPRING TASS ARE NOT AVAILABLE AND A THE CODES ARE NOT ON THE S P I LABEL OR THE R P O FICHE THE DEALER CAN SELECT THE CNART TO BE USED DETERMINED BY THE MODEL ENGINE AND SUSPENSION OPTION OF THE PARTICULAR VEHICLE ANY SRING IN THE RANGE MAY BE SELECTED BUT A GENERAL RULE OF THUMB IS TS CHOOSE A SPRING IN THE MIDDLE RANGE A HIGHER OR LOWER LOAD RATE SPRING MAY ALSO BE SELECTED BY MOVING UP OR DOWN THE CHART FROM THAT POINT 4 WHEN THERE IS A DIFFERENCE BETWEEN PARTS USED IN THE U S AND THOSE USED IN CANADA THE U S NUMBER WILL BE FOLLOWED BY THE LETTER U AND THE CANADIAN NUMBER BY A C L f 1990 GENERAL MOTORS SERVICE F ARTS O ERIAT ONS PONTIAC 22W REV 6 90 7 7 7 412
