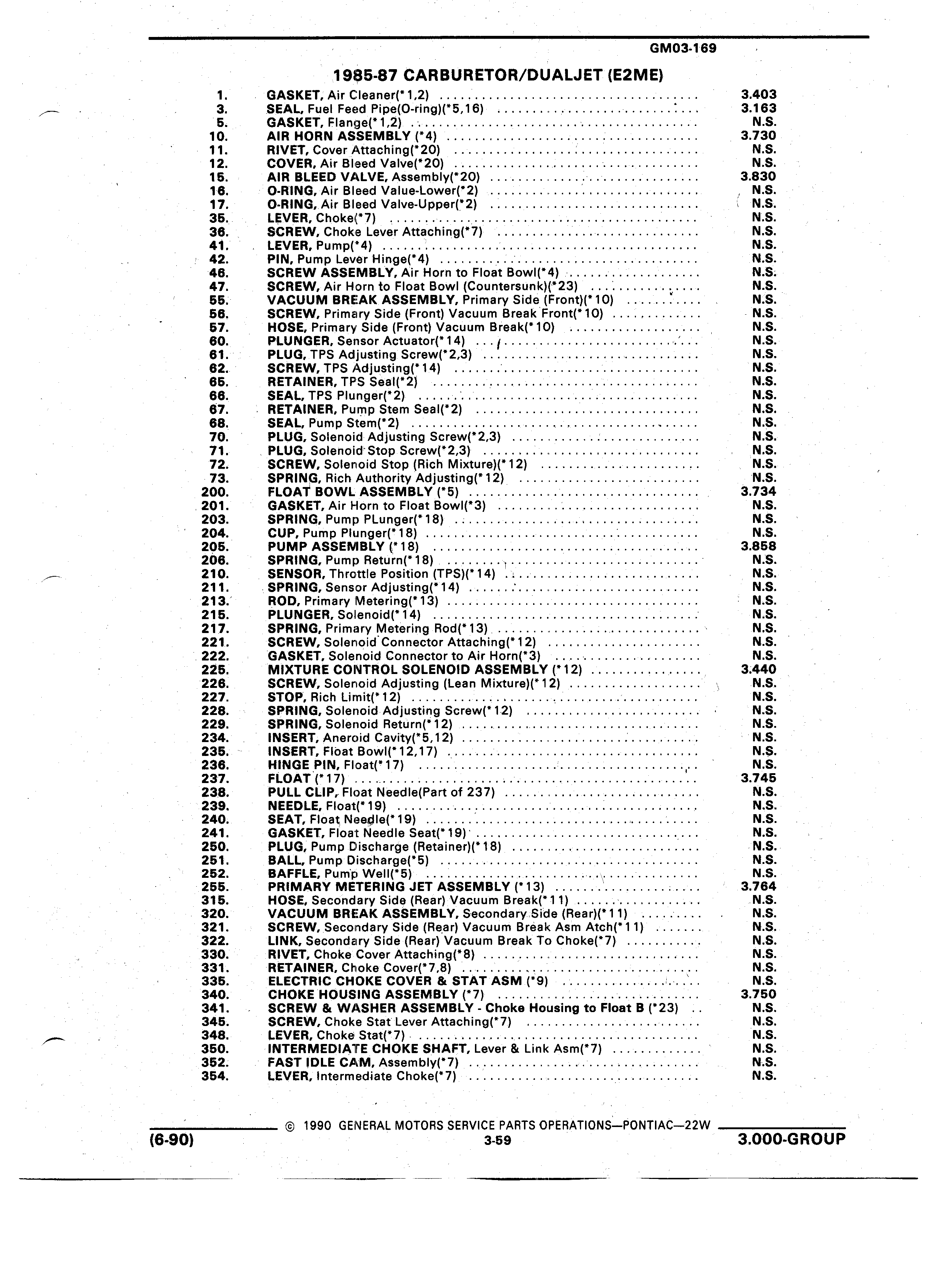

I 1 GM03 169 A 1985 87 CARBURETOR DUALJET E2ME 1 GASKET Air CIIeaner 1 2 3 403 3 SEAL Fuel Feed Pipe O ring 5 16 I 3 163 5 GASKET FIange 1 2 N S 10 AIR HORN ASSEMBLY 4 3 730 11 RIVET Cover Attaching 20 3 N S I V 12 COVER Air Bleed Valve 20 N S 15 AIR BLEED VALVE AssembIy 20 3 830 16 O RING Air Bleed Va ue Lower 2 V N S 17 O RING Air Bleed Valve Upper 2 x N S 35 LEVER Choke 7 V N S 36 SCREW Choke Lever Attaching 7 N S 41 LEVER Pump 4 L N S V 1 42 PIN Pump Lever Hinge 4 V N S 46 SCREW ASSEMBLY Air Horn to Float BowI 4 N S 47 SCREW Air Horn to Float Bowl Countersunk 23 L N S 55 VACUUM BREAK ASSEMBLY Primary Side Front 10 N S 56 SCREW Primeiry Side Front Vacuum Break Front 10 A N S 57 HOSE Primary Side Front Vacuum Break 10 N S 60 PLUNGER Sensor Actuator 14 N S 61 PLUG TPS Adjusting Screw 2 3 N S 62 SCREW TPS Adjusting 14 N S 65 RETAINER TPS Seal 2 N S V 66 SEAL TPS Plunger 2 N S 67 RETAINER Pump Stem SeaI 2 N S 68 SEAL Pump S tem 2 N S 70 PLUG Solenoid Adjusting Screw 2 3 N S i 71 PLUG Solenoid St0p Screw 2 3 Q N S 72 SCREW Solenoid Stop Rich Mixture 12 N S V 73 SPRING Rich Authority Adjusting 12 N S 200 FLOAT BOWL ASSEMBLY 5 3 734 201 GASKET Air I Iorn to Float BowI 3 N S 203 SPRING Pump PLunger 18 N S X 204 CUP Pump Plunger 18 N S 205 PUMP ASSEMBLY 18 V 3 858 206 SPRING Pump Return 18 N S V V 210 SENSOR Throttle Position TPS 14 N S 211 SPRING Sensor Adjusting 14 N S 213 ROD Primary lMetering 13 N S 215 PLUNGER Solenoid 14 N S 217 SPRING Primary Metering R0d 13 N S 221 SCREW Solenoid Connector Attaching 12 N S V 222 GASKET Solenoid Connector to Air Horn 3 N S 225 MIXTURE CONTROL SOLENOID ASSEMBLY 12 3 440 I 226 SCREW Solenoid Adjusting Lean Mixture 12 N S 227 STOP Rich Lirnit 12 N S 228 SPRING Solenoid Adjusting Screw 1 2 N S 229 SPRING Solenoid Return 12 N S 234 INSERT Aneroid Cavity 5 12 N S 235 INSERT Float BowI 12 17 V N S 236 HINGE PlN FI oat 17 N S 237 FLOAT 17 3 745 238 PULL CLIP Float Need e Part of 237 N S 239 NEEDLE Float 19 N S 240 SEAT Float NeegIe 19 r N S 241 GASKET Float Needle Seat 19 V N S 4 250 PLUG Pump Discharge Retainer 18 N S 251 BALL Pump Discharge 5 N S 252 BAFFLE Pump WeII 5 N S 255 PRIMARY METERING JET ASSEMBLY 13 3 764 315 HOSE Secondary Side Rear Vacuum Break 11 N S 320 VACUUM BREAK ASSEMBLY S econdary Side Rear 1 1 i N S 321 SCREW Secondary Side Rear Vacuum Break Asm Atch 11 N S V 322 LINK Secondary Side Rear Vacuum Break To Choke 7 N S 330 RIVET Choke Cover Attaching 8 V N S 331 RETAINER Chioke Cover 7 8 N S 335 ELECTRIC CHOKE COVER STAT ASM 9 N S 340 CHOKEHOUSING ASSEMBLY 7 3 750 341 SCREW WASHER ASSEMBLY Choke Housing to Float B 23 N S 345 SCREW Choke Stat Lever Attaching 7 N S 348 LEVER Choke Stat 7 N S 350 INTERMEDIATE CHOKE SHAFT Lever Link Asm 7 N S 352 FAST IDLE CAM Assembly 7 N S 354 LEVER Intermediate Choke 7 V N S 1990 GENERAL MOTORS SERVICE PARTS OPERATIONS PONTIAC 22W i I6 90 3 ss 3 000 GROUP
