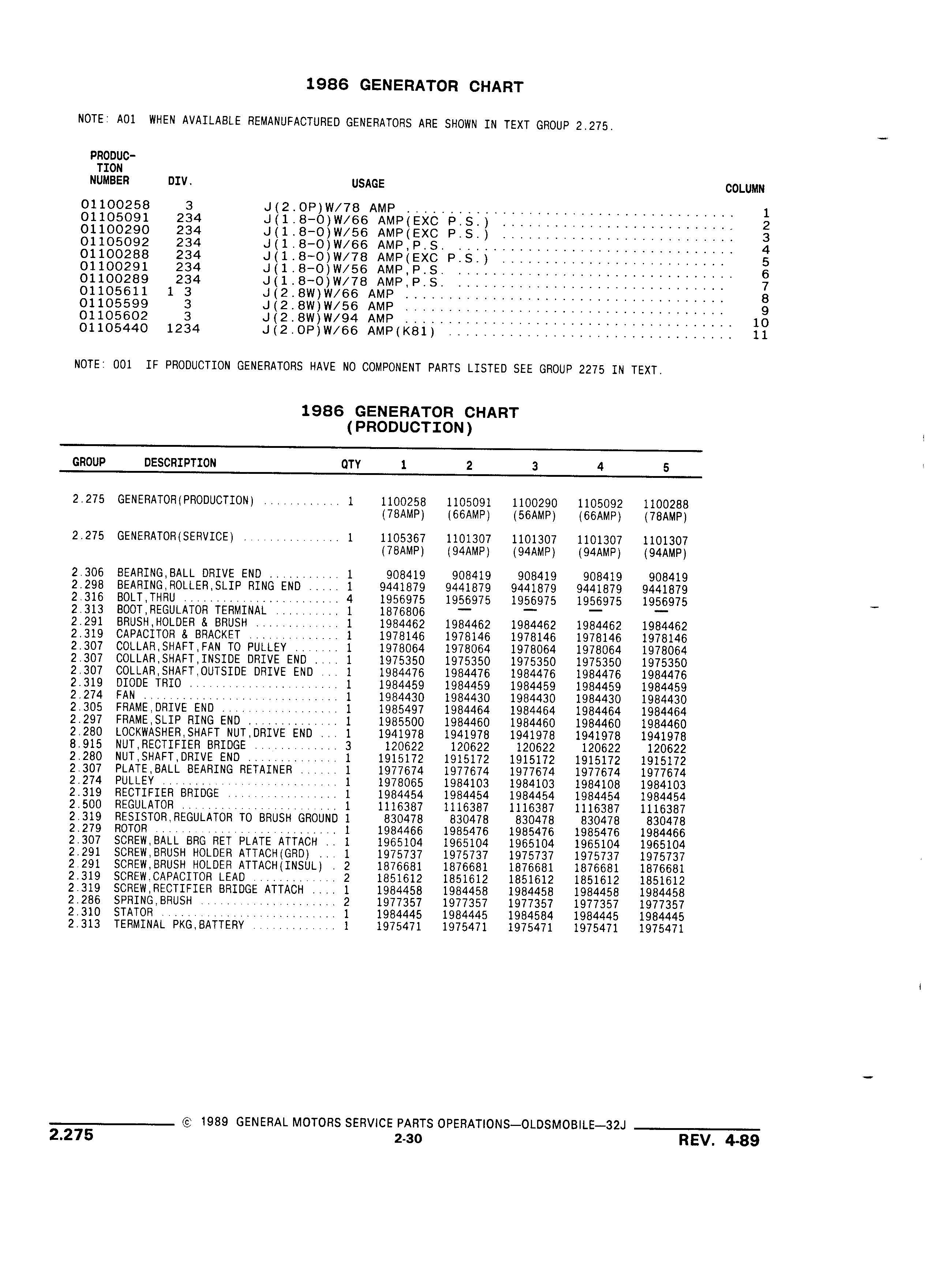

1986 GENERATOR CHART NOTEt A01 WHEN AVAILABLE REMANUFACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGE COLUMN 01100258 3 J 2 0P W 78 AMP 1 01105091 234 J 1 8 0 W 66 AMP EXC P S 2 01100290 234 J 1 8 0 W 56 AMP EXC P S 3 01105092 234 J 1 8 0 W 66 AMP P S 4 01100288 234 J 1 8 0 W 78 AMP EXC P S 5 01100291 234 J 1 8 0 W 56 AMP P S 6 01100289 234 J 1 8 0 W 78 AMP P S 7 01105611 1 3 J 2 8W W 66 AMP 8 01105599 3 J 2 8W W 56 AMP 9 01105602 3 J 2 8W W 94 AMP 10 01105440 1234 J 2 0P W 66 AMP K81 11 NOTES 001 IF PRODUCTION GENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 1986 GENERATOR CHART PRODUCTION GROUP DESCRIPTION OTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1100258 1105091 1100290 1105092 1100288 78AMP 66AMP 56AMP 66AMP 78AMP 2 275 GENERATOR SERVICE 1 1105367 1101307 1101307 1101307 1101307 78AMP 94AMP 94AMP 94AMP 94AMP 2 306 BEARING BALL DRIVE END 1 908419 908419 908419 908419 908419 2 298 BEARING ROLLER SLIP RING END 1 9441879 9441879 9441879 9441879 9441879 2 316 BOLT THRU 4 1956975 1956975 1956975 1956975 1956975 2 313 BOOT REGULATOR TERMINAL 1 1876806 2 291 BRUSH HOLDER BRUSH 1 1984462 1984462 1984462 1984462 1984462 2 319 CAPACITOR BRACKET 1 1978146 1978146 1978146 1978146 1978146 2 307 COLLAR SHAFT FAN TO PULLEY 1 1978064 1978064 1978064 1978064 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1975350 1975350 1975350 1975350 1975350 2 307 COLLAR SHAFT OUTSIDE DRIVE END 1 1984476 1984476 1984476 1984476 1984476 2 319 DIODE TRIO 1 1984459 1984459 1984459 1984459 1984459 2 274 FAN 1 1984430 1984430 1984430 1984430 1984430 2 305 FRAME DRIVE END 1 1985497 1984464 1984464 1984464 1984464 2 297 FRAME SLIP RING END 1 1985500 1984460 1984460 1984460 1984460 2 280 LOOKWASHER SHAET NUT DRIVE END 1 1941978 1941978 1941978 1941978 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 120622 120622 120622 120622 2 280 NUT SHAFT DRIVE END 1 1915172 1915172 1915172 1915172 1915172 2 307 PLATE 8ALL BEARING RETAINER 1 1977674 1977674 1977674 1977674 1977674 2 274 PULLEY 1 1978065 1984103 1984103 1984108 1984103 2 319 RECTIFIER BRIDGE 1 1984454 1984454 1984454 1984454 1984454 2 500 REGULATOR 1 1116387 1116387 1116387 1116387 1116387 2 319 RESISTOR REGULATOR T0 BRUSH GROUND 1 830478 830478 830478 830478 830478 2 279 ROTOR 1 1984466 1985476 1985476 1985476 1984466 2 307 SCREW BALL BRG RET PLATE ATTACH 1 1965104 1965104 1965104 1965104 1965104 2 291 SCREW BRUSH HOLDER ATTAOH GRD 1 1975737 1975737 1975737 1975737 1975737 2 291 SCREW BRUSH HOLDER ATTAOH INSUL 2 1876681 1876681 1876681 1876681 1876681 2 319 SCREW CAPACITOR LEAD 2 1851612 1851612 1851612 1851612 1851612 2 319 SCREW RECTIFIER BRIDGE ATTACH 1 1984458 1984458 1984458 1984458 1984458 2 286 SPRING BRUSH 2 1977357 1977357 1977357 1977357 1977357 2 310 STATOR 1 1984445 1984445 1984584 1984445 1984445 2 313 TERMINAL PKG BATTERY 1 1975471 1975471 1975471 1975471 1975471 1989 GENERAL MOTORS SERVICE PARTS 0PERAT 0NS OLDSMOB LE 32J Y 2 275 2 30 REV 4 89
