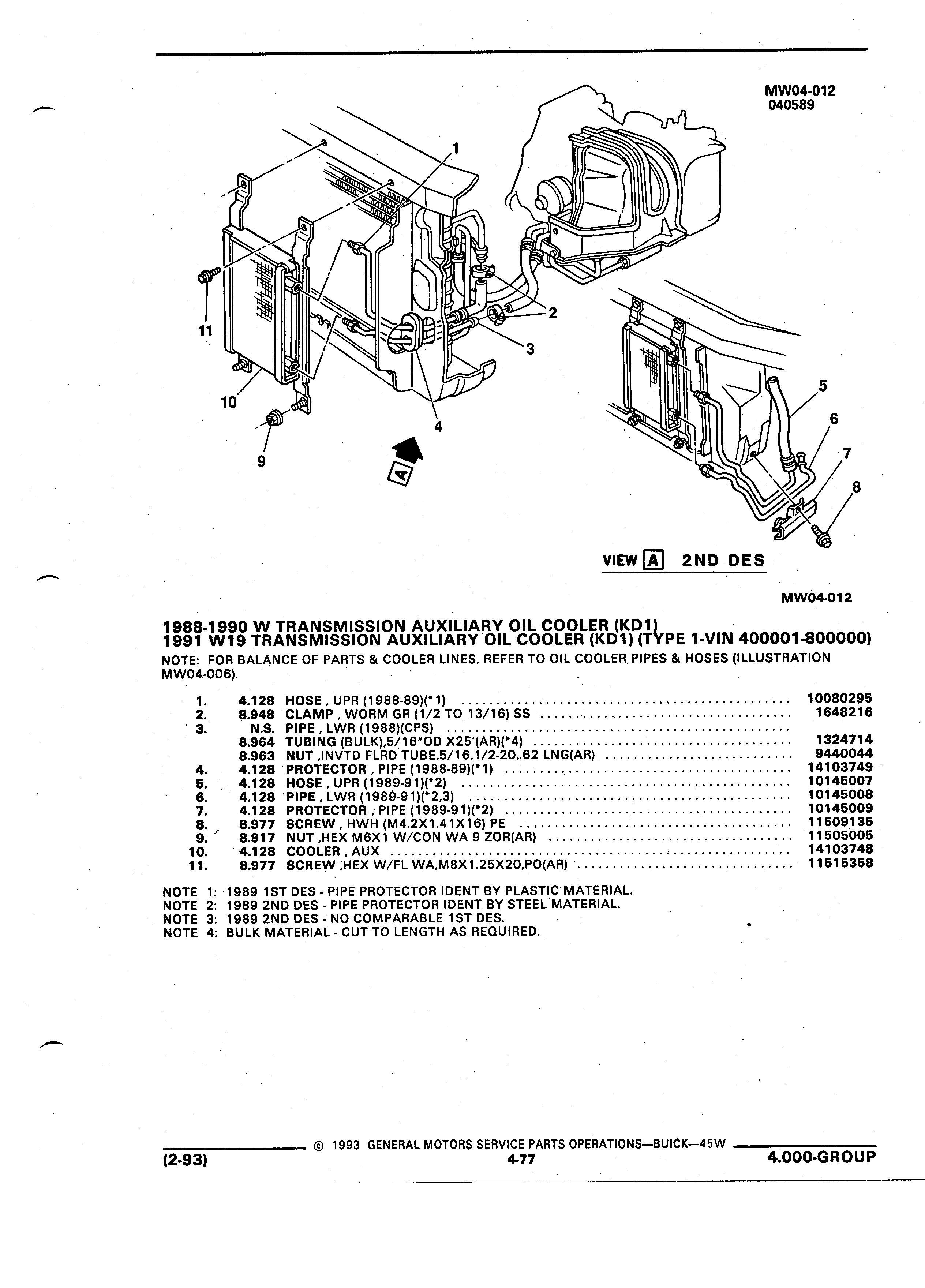

I I MW04 012 r 040589 N Q I I A K Q ms 1 4 I M lg 9 Sue 4 M y V QJ u R Q ID 2 V e M 3 n a n 10 1 l U X 5 0 4 6 I I 9 I 1 7 I 8 9 A I vnzwlil 2ND nas A Mw04 012 1988 1990 W TRANSMISSION AUXILIARY OIL COOLER KD1L 1991 W19 TRANSMISSION AUXILIARY OIL COOLER KD1 T PE 1 VIN 400001 800000 NOTE FOR BALANCE OF PARTS COOLER LINES REFER TO OIL COOLER PIPES HOSES ILLUSTRATION MWO4 006 1 4 128 HOSE UPR 1988 89 1 10080295 2 8 948 CLAMP WORM GR 1 2 TO 13 16 SS 1648216 3 N S PIPE LWR 1988 CPS 8 964 TUBING BULK 5 16 OD X25 AR 4 1324714 8 963 NUT INVTD FLRD TUBE 5 16 1 2 20 62 LNG AR 9440044 4 4 128 PROTECTOR PIPE 1988 89 1 14103749 5 4 128 HOSE UPR 1989 91 2 10145007 6 4 128 PIPE LWR 1989 91 2 3 10145008 7 4 128 PROTECTOR PIPE 1989 91 2 10145009 8 y 8 977 SCREW HWH M4 2X1 41X16 PE 11509135 9 8 917 NUT HEX M6X1 W CON WA 9 ZOR AR 11505005 10 4 128 COOLER AUX 14103748 1 1 8 977 SCREW QH EX W FL WA M8X1 25X20 PO AR 11515358 NOTE 1 1989 1ST DES PIPE PROTECTOR IDENT BY PLASTIC MATERIAL NOTE 2 1989 2ND DES PIPE PROTECTOR IDENT BY STEEL MATERIAL NOTE 3 1989 2ND DES NO COMPARABLE IST DES A NOTE 4 BULK MATERIAL CUT TO LENGTH AS REQUIRED 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS BUICK 45W 2 93 4 77 4 000 GROUP
