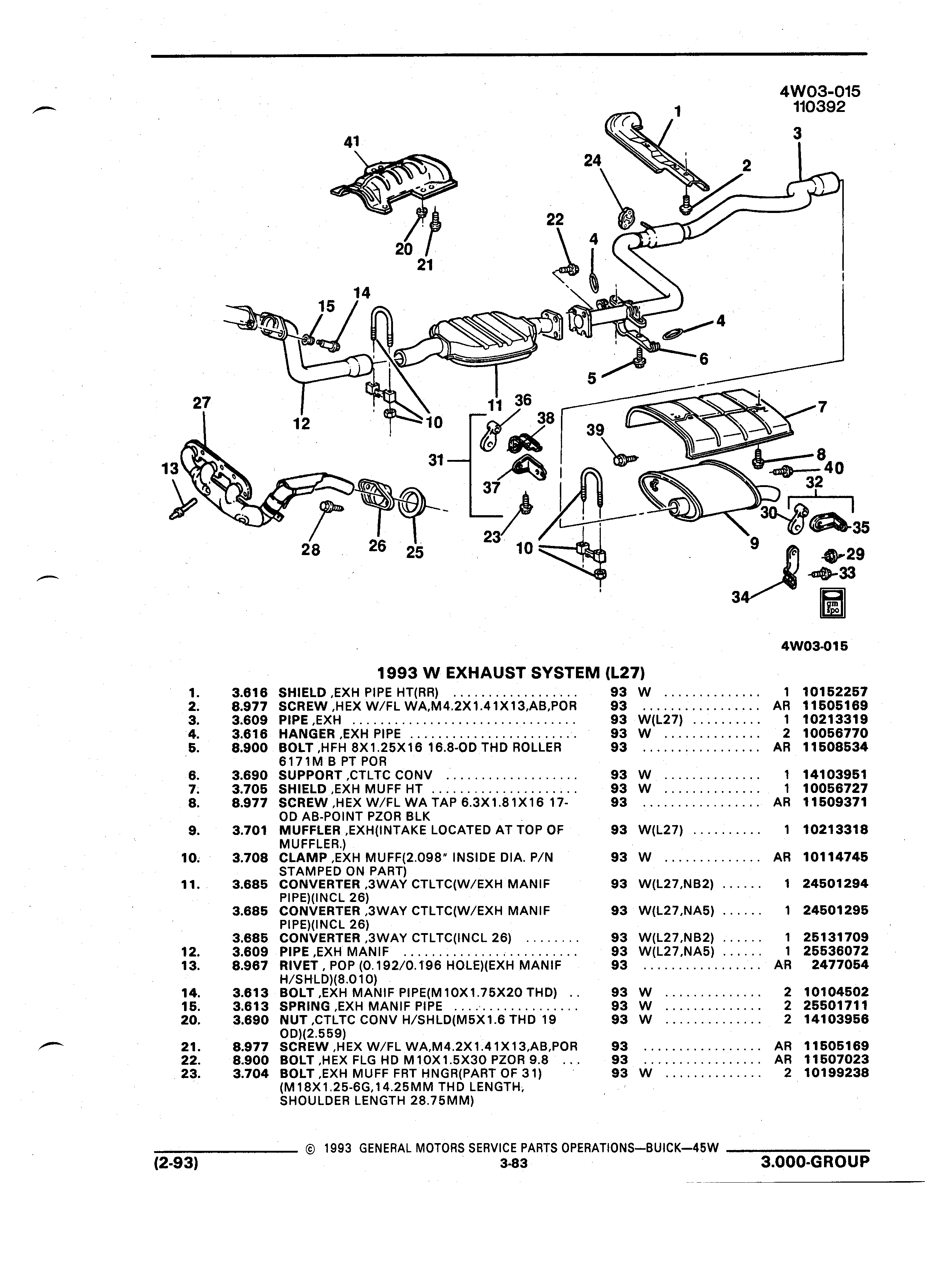

1 I 4WO3 015 r 1 110392 41 24 14 2 s A 22 3 20 21 I l x 0 4 JI AI i I I 3 7 6 1 5 1 27 I 11 36 38 Q 7 12 10 6 39 1 Q 31 wv 8 13 1 I Q 1 ug 40 gf 3 sv 32 sz 5 e I 1 1 1 3 6 231 9 35 28 26 25 1 10 1 29 EE I 4W03 015 1993 W EXHAUST SYSTEM L27 1 3 616 SHIELD EXH PIPE HT RR 93 W 1 10152257 2 8 977 SCREW H EX W FL WA M4 2X1 41X13 AB POR 93 AR 11505169 3 3 609 PIPE EXH 93 W L27 1 10213319 4 3 616 HANGER EXH PIPE 93 W 2 10056770 5 8 900 BOLT HFH 8X1 25X16 16 8 OD THD ROLLER 93 AR 11508534 l 6171M B PT POR 6 3 690 SUPPORT CTLTC CONV 93 W 1 14103951 7 3 705 SHIELD EXH MUFF HT 93 W 1 10056727 8 8 977 SCREW HEX W FL WA TAP 6 3X1 81X16 17 93 AR 11509371 OD AB POINT PZOR BLK 9 3 701 MUFFLER EXH INTAKE LOCATED AT TOP OF 93 W L27 1 10213318 MUFFLER 10 3 708 CLAMP EXH MUFF 2 098 INSIDE DIA P N 93 W AR 10114745 STAMPED ON PART 1 1 3 685 CONVERTER 3WAY CTLTC W EXH MANIF 93 W L27 NB2 1 24501294 PIPE INCL 26 3 685 CONVERTER 3WAY CTLTC W EXH MANIF 93 W L27 NA5 1 24501295 PlPE NCL 26 3 685 CONVERTER 3WAY CTLTC NCL 26 93 W L27 NB2 1 25131709 12 3 609 PIPE EXH MANIF 93 W L27 NA5 1 25536072 13 8 967 RIVET POP 0 192 0 196 HO LE EXH MANIF 93 AR 2477054 H SH LD 8 010 14 3 613 BOLT EXH MANIF P PE M1OX1 75X20 THD 93 W 2 10104502 15 3 613 SPRING EXH MANIF PIPE 93 W 2 25501711 20 3 690 NUT CTLTC CONV H SHLD M5X1 6 THD 19 93 W 2 14103956 OD 2 559 21 8 977 SCREW HEX W FL WA M4 2X1 41X13 AB POR 93 AR 11505169 22 8 900 BOLT HEX FLG HD M1OX1 5X3O PZOR 9 8 93 AR 11507023 23 3 704 BOLT EXH MUFF FRT HNGR PART OF 31 93 W 2 10199238 M18X1 25 6G 14 25MM THD LENGTH V SHOULDER LENGTH 28 75MM 1 i 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS BUICK 45W 2 93 s as 3 000 GROUP
