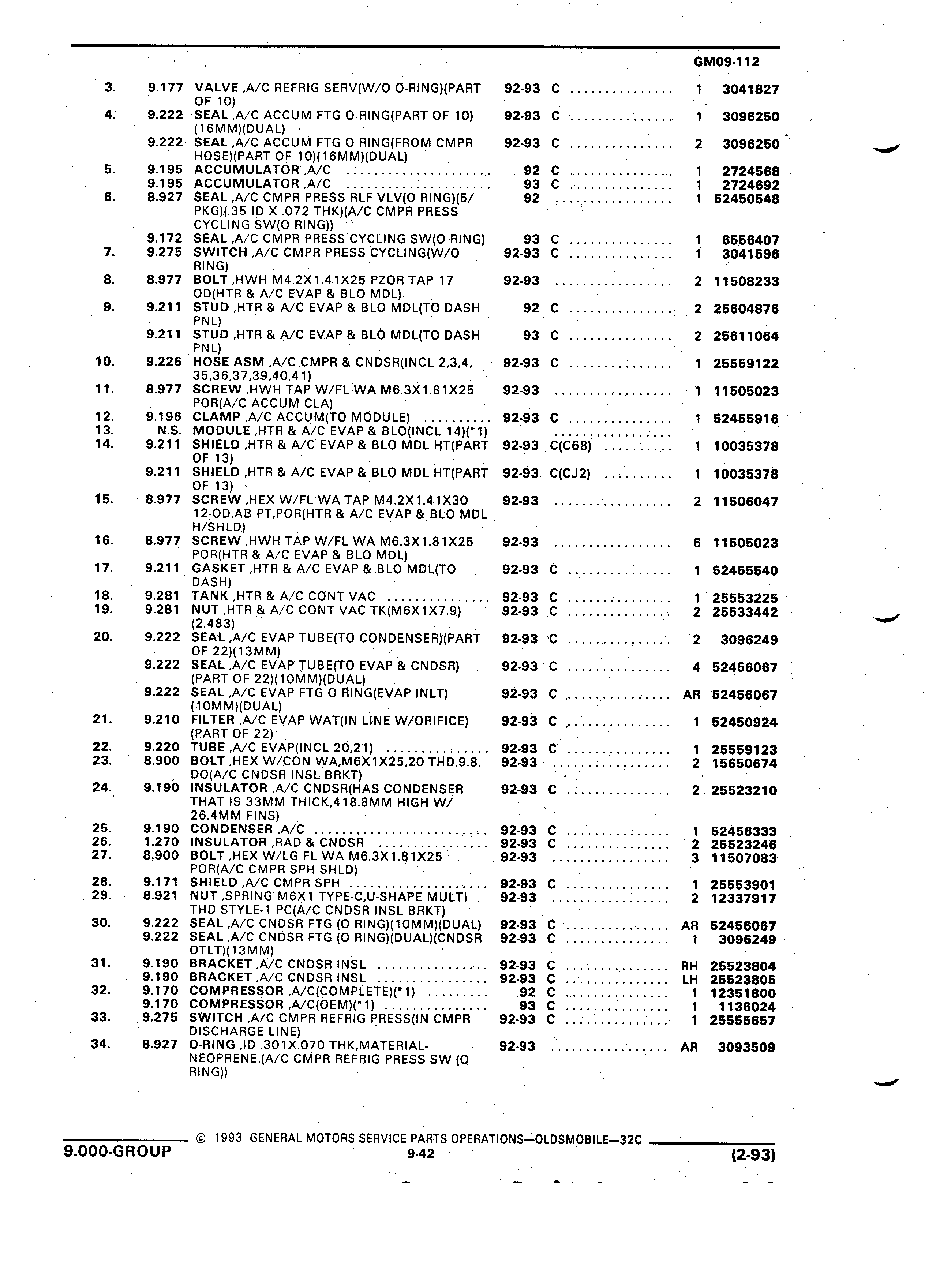

I GM09 112 3 9 177 VALVE A C REFRIG SERV W O O RING PART 92 93 C 1 3041827 OF 10 4 9 222 SEAL A C ACCUM FTG O RING PART OF 10 92 93 C 1 3096250 16MM DUAL A 9 222 SEAL A C ACCUM FTG O RING FROM CMPR 92 93 C 2 3096250 HOSE PART OF 10 16MM DUAL 5 9 195 ACCUMULATOR A C 92 C 1 2724568 9 195 ACCUMULATOR A C 93 C 1 2724692 6 8 927 SEAL A C CMPR PRESS RLF VLV O RING 5 92 1 52450548 PKG 35 ID X 072 THK A C CMPR PRESS CYCLING SW O RING I 9 172 SEAL A C CMPR PRESS CYCLING SW O RING 93 C 1 65 56407 7 9 275 SWITCH A C CMPR PRESS CYCLING W O 92 93 C 1 3041596 A RING 8 8 977 BOLT HWH M4 2X1 41X25 PZOR TAP 17 92 93 2 11508233 OD HTR A C EVAP BLO MDL I 9 9 211 STUD HTR A C EVAP BLO MDL TO DASH 92 C V 2 25604876 PNL 9 211 STUD HTR A C EVAP BLO MDL TO DASH 93 C 2 25611064 PNL 10 9 226 HOSE ASM A C CMPR CNDSR INCL 2 3 4 92 93 C 1 25559122 35 36 37 39 40 4 1 V I 11 8 977 SCREW HWH TAP W FL WA M6 3X1 81X25 92 93 I 1 11505023 POR A C ACCUM CLA I 12 9 196 CLAMP A C ACCUM TO MODULE 92 93 C 1 52455916 13 N S MODULE HTR A C EVAPV BLO NCL 14 1 14 9 211 SHIELD HTR A C EVAP BLO MDL HT PART 92 93 C C68 1 10035378 OF 13 V 9 211 SHIELD HTR A C EVAP BLO MDL HT PART 92 93 C CJ2 1 10035378 OF 13 15 8 977 SCREW H EX W FL WA TAP M4 2X1 41X3O 92 93 2 11506047 I 12 OD AB PT POR HTR A C EVAP BLO MDL V H SHLD V 16 8 977 SCREW HWH TAP W FL WA M6 3X1 81X25 92 93 6 11505023 POR HTR A C EVAP BLO MDL 17 9 211 V GASKET HTR A C EVAP BLO MDL TO 92 93 C 1 52455540 DASH 18 9 281 TANK HTR A C CONT VAC 92 93 C 1 25553225 19 9 281 NUT HTR A C CONT VAC TK M6X 1X7 9 92 93 C 2 25533442 2 483 20 9 222 SEAL A C EVAP TUBE TO CONDENSER PART 92 93 C 2 3096249 OF 22 13MM 9 222 SEAL A C EVAP TUBE TO EVAP CNDSR 92 93 C 4 52456067 A PART OF 22 1OMM DUAL 9 222 SEAL A C EVAP FTG O RING EVAP INLT 92 93 C AR 52456067 1OMM DUAL 21 9 210 FILTER A C EVAP WAT N LINE W ORIFICE 92 93 C 1 52450924 PART OF 22 22 9 220 TUBE A C EVAP INCL 20 21 92 93 C 1 25559123 23 8 900 BOLT HEX W CON WA M6X1X25 20 THD 9 8 92 93 2 15650674 V DO A C CNDSR INSL BRKT 4 24 9 190 INSULATOR A C CNDSR HAS CONDENSER 92 93 C 2 25523210 I THAT IS 33MM THICK 418 8MM HIGH W 26 4MM FINS I 25 9 190 CONDENSER A C 92 93 C 1 52456333 26 1 270 INSULATOR RAD CNDSR 92 93 C 2 25523246 27 8 900 BOLT HEX W LG FL WA M6 3X1 81X25 92 93 3 11507083 POR A C CMPR SPH SHLD 28 9 171 SHIELD A C CMPR SPH 92 93 C 1 25553901 29 8 921 NUT SPRING M6X1 TYPE C U SHAPE MULTI 92 93 2 12337917 THD STYLE 1 PC A C CNDSR INSL BRKT 30 9 222 SEAL A C CNDSR FTG O RING 10MM DUAL 92 93 C AR 52456067 9 222 SEAL A C CNDSR FTG O RING DUAL CNDSR 92 93 C 1 3096249 OTLT 13MM 31 9 190 BRACKET A C CNDSR INSL 92 93 C RH 25523804 9 190 BRACKET A C CN DSR INSL 92 93 C LH 25523805 32 9 170 COMPRESSOR A C COMPLETE 1 92 C 1 12351800 9 170 COMPRESSOR A C OEM 1 93 C 1 1136024 33 9 275 SWITCH A C CMPR REFRIG PRESS IN CMPR 92 93 C 1 25555657 DISCHARGE LINE 34 8 927 O RING ID 301X O70 THK MATERIAL 92 93 AR 3093509 NEOPRENE A C CMPR REFRIG PRESS SW O RING J T 1993 GENERAL MOTORS SERVICE PARTS OPERAT 0NS OLDSMOB LE 32C j 9 000 GROUP 9 42 2 93
