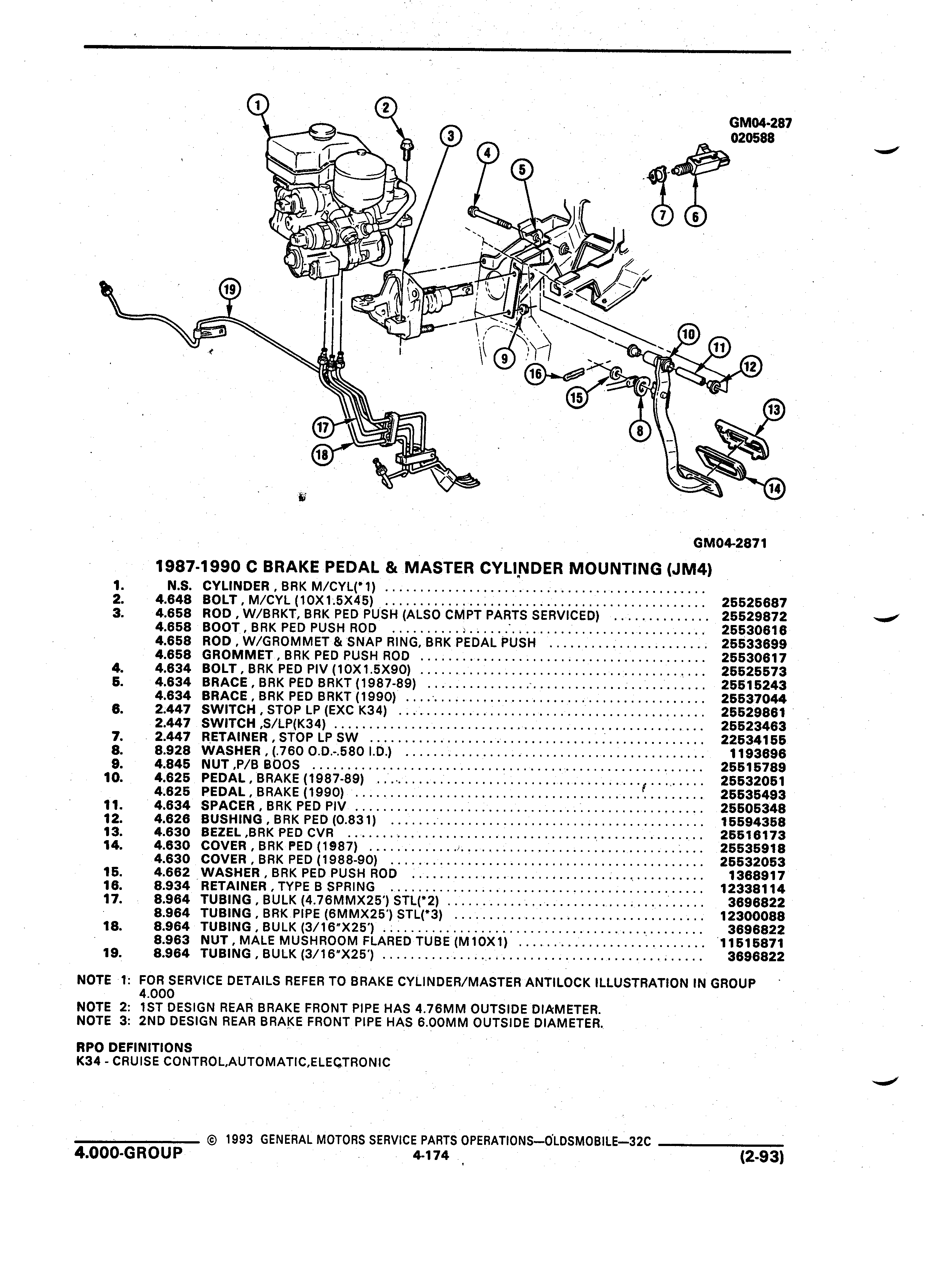

I GM04 287 Q Q ozosas AA Q I 71 P 4 mx o 5 I W K i Ii l mw I 7 I f I V I V Q I r l I I ka M B c I 9 I W 1 m 7 I I ca WG 1 I I Q J 1 N f an GM04 2871 I 1987 1990 C BRAKE PEDAL MASTER CYLI NDER MOUNTING JM4 l 1 N S CYLINDER BRK M CYL 1 2 4 648 BOLT M CYL 10X1 5X45 25525687 3 4 658 ROD W BRKT BRK PED PUSH ALSO CMPT PARTS SERVICED 25529872 si 4 658 BOOT BRK PED PUSH ROD 25530616 I I 4 658 ROD W GROMMET SNAP RING BRK PEDAL PUSH 25533699 4 658 GROMMET BRK PED PUSH ROD 25530617 4 4 634 BOLT BRK PED PIV 1OX1 5X90 25525573 5 4 634 BRACE BRK PED BRKT 1987 89 25515243 4 634 BRACE BRK PED BRKT 1990 25537044 6 2 447 SWITCH STOP LP EXC K34 25529861 2 447 SWITCH S LP K34 25523463 7 2 447 R ETAINER STOP LP SW 2 2534155 8 8 928 WASHER 760 O D 580 l D I 1 193696 9 4 845 NUT P B BOOS 25515789 10 4 625 PEDAL BRAKE 1987 89 25532051 4 625 PEDAL BRAKE 1990 25535493 11 4 634 SPACER BRK PED PIV 7 2 5505348 12 4 626 BUSHING BRK PED 0 831 15594358 13 4 630 BEZEL BRK PED CVR 2 5516173 14 4 630 COVER BRK PED 1987 7 25535918 4 630 COVER BRK PED 1988 90 25532053 15 4 662 WASI IER BRK PED PUSH ROD 1368917 16 8 934 RETAINER TYPE B SPRING 12338114 17 8 964 TUBING BULK 4 76MMX25 STL 2 3696822 8 964 TUBING BRK PIPE 6MMX25 STL 3 12300088 18 8 964 TUBING BULK 3 16 X25 3696822 8 963 NUT MALE MUSHROOM FLARED TUBE M10X1 411515871 19 8 964 TUBING BULK 3 16 X25 3696822 NOTE 1 FOR SERVICE DETAILS REFER TO BRAKE CYLINDER MASTER ANTILOCK ILLUSTRATION IN GROUP 4 000 9 NOTE 2 1ST DESIGN REAR BRAKE FRONT PIPE HAS 4 76MM OUTSIDE DIAMETER NOTE 3 2ND DESIGN REAR BRAKE FRONT PIPE HAS 6 00MM OUTSIDE DIAMETER RPO DEFINITIONS I l K34 CRUISE CONTROL AUTOMATIC ELEQTRONIC 7 I K al 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS 0 LDSMOBILE 32C t j 4 000 GROUP 4 174 2 93 A
