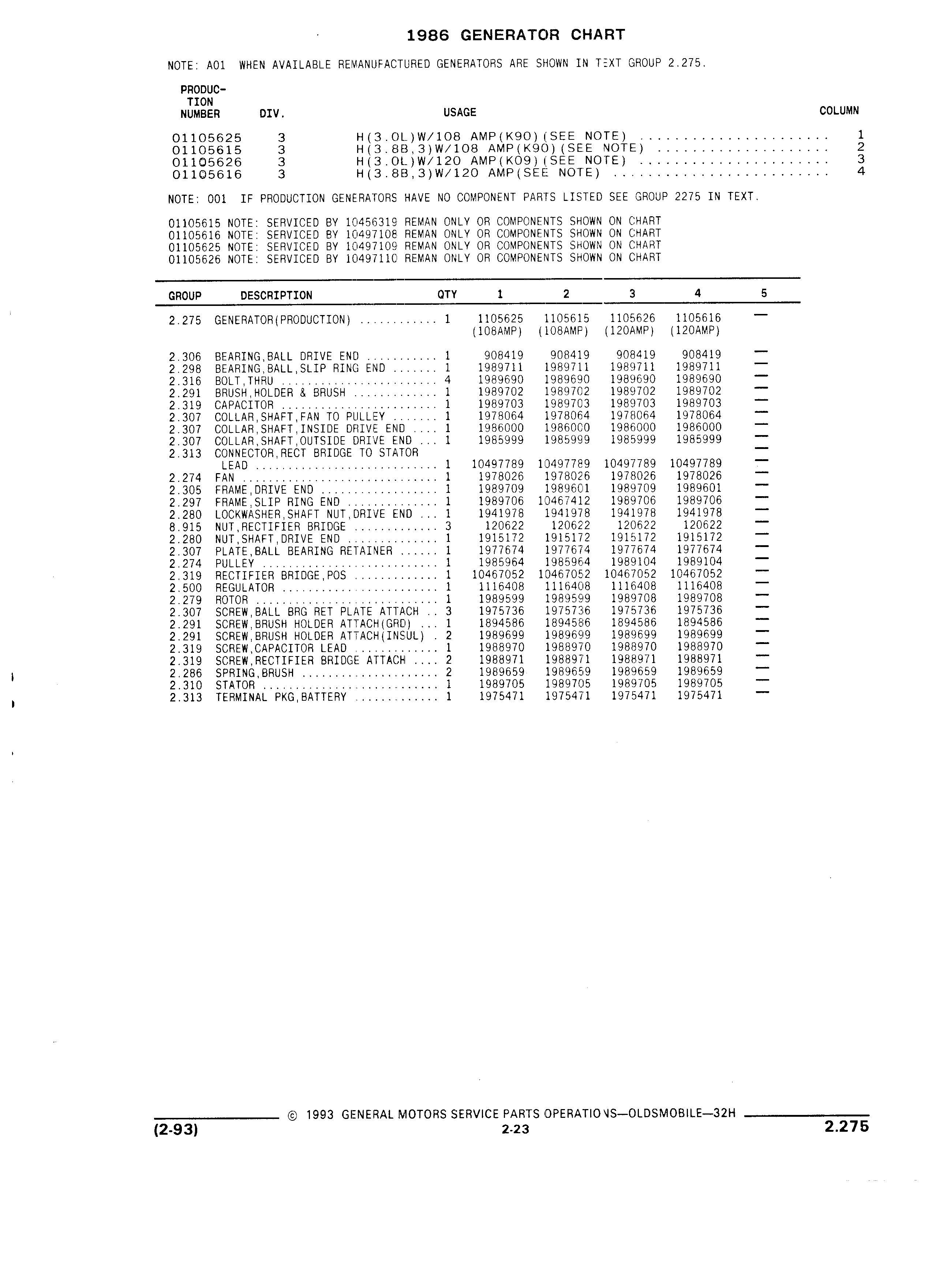

1986 GENERATOR CHART NOTE A01 WHEN AVAILABLE REMANUFACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGE COLUMN 01105625 3 H 3 0L W 108 AMP K90 SEE NOTE 1 01105615 3 H 3 8B 3 W 108 AMP K90 SEE NOTE 2 01105626 3 H 3 0L W 120 AMP KO9 SEE NOTE 3 01105616 3 H 3 8B 3 W 120 AMP SEE NOTE 4 NOTE 001 IF PRODUCTION GENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 01105615 NOTE SERVICED BY 10456319 REMAN ONLY OR COMPONENTS SHOWN ON CHART 01105616 NOTE SERVICED BY 10497108 REMAN ONLY OR COMPONENTS SHOWN ON CHART 01105625 NOTE SERVICED BY 10497109 REMAN ONLY OR COMPONENTS SHOWN ON CHART 01105626 NOTE SERVICED BY 10497110 REMAN ONLY OR COMPONENTS SHOWN ON CHART GROUP DESCRIPTION OTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1105625 1105615 1105626 1105616 108AMP 108AMP 120AMP 120AMP 2 306 BEARING 8ALL DRIVE END 1 908419 908419 908419 908419 2 298 BEARING BALL SLIP RING END 1 1989711 1989711 1989711 1989711 2 316 BOLT THRU 4 1989690 1989690 1989690 1989690 2 291 8RUSH HOLDER 8 BRUSH 1 1989702 1989702 1989702 1989702 2 319 CAPACITOR 1 1989703 1989703 1989703 1989703 2 307 COLLAR SHAFT FAN TO PULLEY 1 1978064 1978064 1978064 1978064 2 307 COLLAR SHAET INSIDE DRIVE END 1 1986000 1986000 1986000 1986000 2 307 COLLAR SHAET 0UTSIDE DRIVE END 1 1985999 1985999 1985999 1985999 2 313 CONNECTOR RECT BRIDGE T0 STATOR LEAD 1 10497789 10497789 10497789 10497789 T 2 274 FAN 1 1978026 1978026 1978026 1978026 2 305 FRAME DRIVE END 1 1989709 1989601 1989709 1989601 2 297 FRAME SLIP RING END 1 1989706 10467412 1989706 1989706 2 280 LOCKWASHER SHAET NUT DRIVE END 1 1941978 1941978 1941978 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 120622 120622 120622 2 280 NUT SHAFT DRIVE END 1 1915172 1915172 1915172 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 1977674 1977674 1977674 2 274 PULLEY 1 1985964 1985964 1989104 1989104 2 319 RECTIFIER BRIDGE POS 1 10467052 10467052 10467052 10467052 2 500 REGULATOR 1 1116408 1116408 1116408 1116408 2 279 ROTOR 1 1989599 1989599 1989708 1989708 2 307 SCREW BALL BRG RET PLATE ATTACH 3 1975736 1975736 1975736 1975736 2 291 SCREW BRUSH HOLDER ATTACH GRD 1 1894586 1894586 1894586 1894586 2 291 SCREW BRUSH HOLDER ATTACH INSUL 2 1989699 1989699 1989699 1989699 2 319 SCREW CAPAOITOR LEAD 1 1988970 1988970 1988970 1988970 2 319 SCREW RECTIFIER BRIDGE ATTACH 2 1988971 1988971 1988971 1988971 T 2 286 SPRING 8RUSH 2 1989659 1989659 1989659 1989659 2 310 STATOR 1 1989705 1989705 1989705 1989705 l 2 313 TERMINAL PKG 8ATTERY 1 1975471 1975471 1975471 1975471 C 1993 GENERALMOTORSSERVWEPARTSOPERAUOVS 0LDSMOBNE 62H 2 93 2 23 2 275
