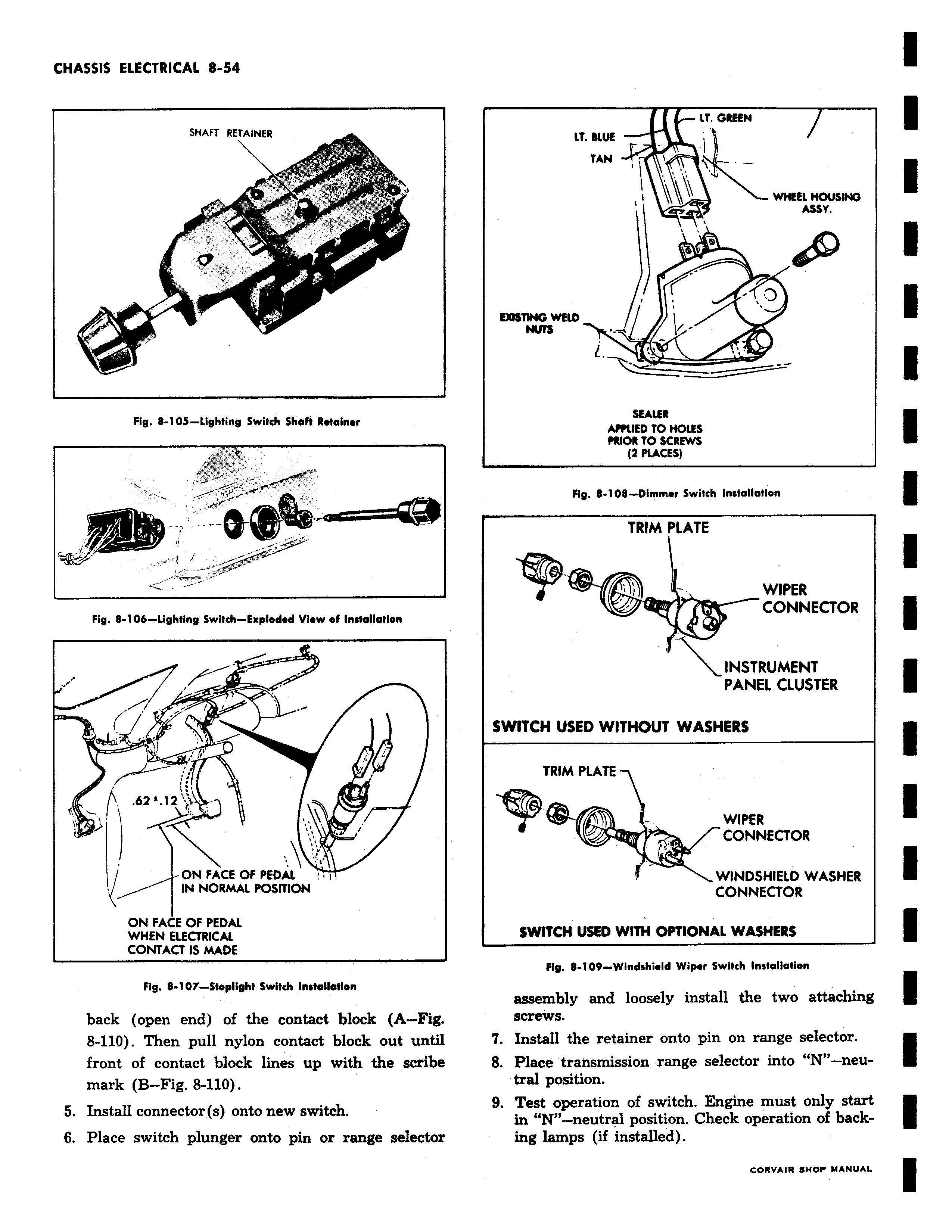

W71 1oiJIJ WV n V VW 7 SHAFT RETAINER Fig B 105 Lighting Switch Shaft Retainer Mao Fig 8 106 Lighting Switch Exploded View of Installation v 62 12 ON FACE Of PEDAL v J I IN NORMAL POSITION ON FACE OF PEDAL WHEN ELECTRICAL CONTACT IS NUDE Fig 8 107 Stoplight Switch Installation back open end of the contact block A Fig 8 110 Then pull nylon contact block out until front of contact block lines up with the scribe mark B Fig 8 110 5 Install connector s onto new switch 6 Place switch plunger onto pin or range selector LT GREEN LT RUE TAN v WHEEL HOUSING ASSY a v EXISTINIG WELD NUTS SEALER APPLIED TO HOLES PRIOR TO SCREWS 2 PLACES Fig 8 108 Dimmer Switch Installation TRIM PLATE w WIPER CONNECTOR INSTRUMENT PANEL CLUSTER SWITCH USED WITHOUT WASHERS TRIM PLATE WIPER II CONNECTOR WINDSHIELD WASHER CONNECTOR SWITCH USED WITH OPTIONAL WASHERS Fig 8 109 Windshield Wiper Switch Installation assembly and loosely install the two attaching screws Install the retainer onto pin on range selector 8 Place transmission range selector into N neutral position 8 Test operation of switch Engine must only start in N neutral position Check operation of backing lamps if installed
