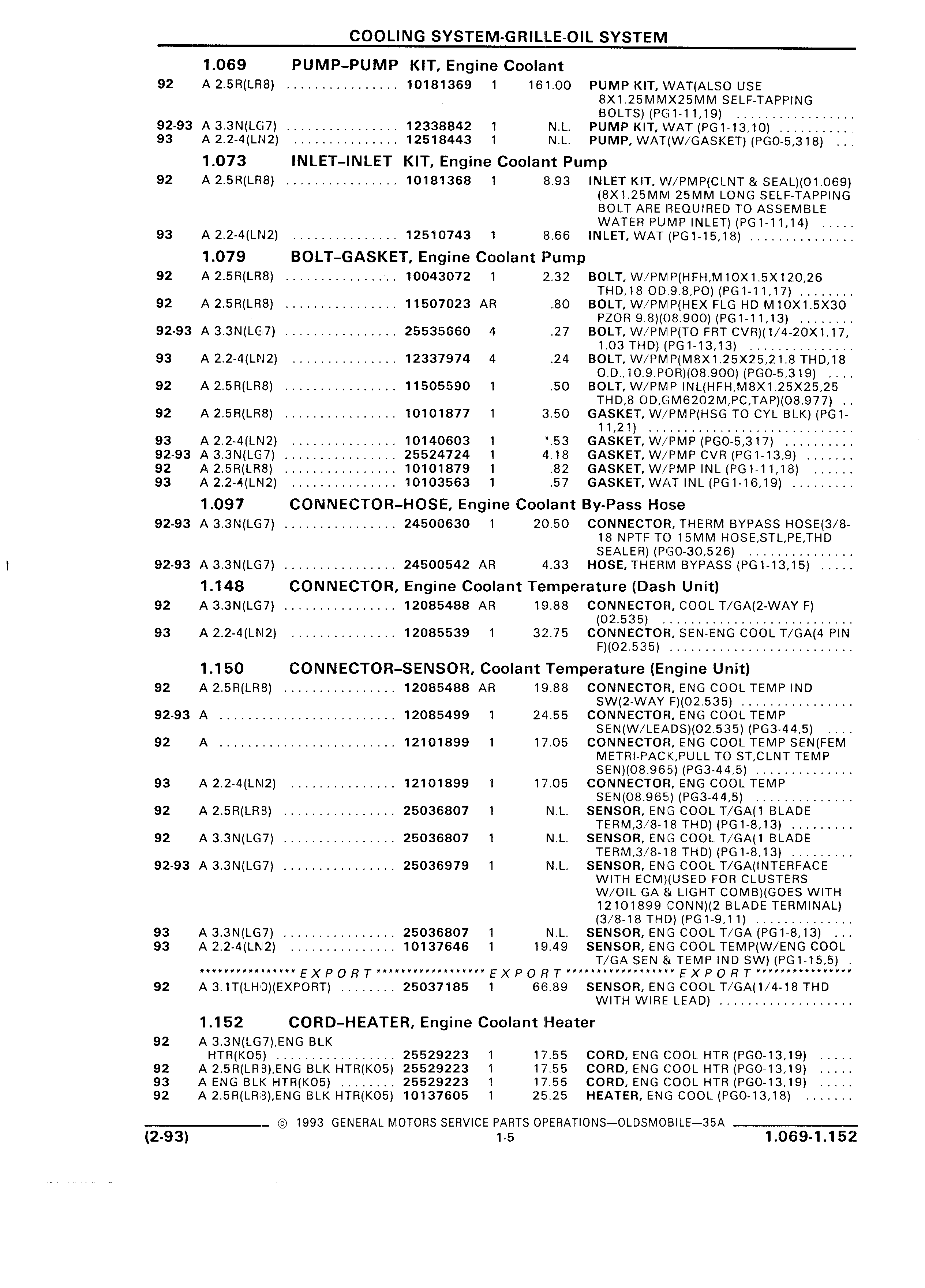

COOLING SYSTEM GRILILE OIL SYSTEM 1 069 PUMP PUMP KIT Engine Coolant 92 A 2 5R LR8 10181369 1 161 00 PUMP KIT WAT ALSO USE 8X1 25MMX25MM SELF TAPPING BOLTS PGi1 11 19 92 93 A 3 3N LG7 12338842 1 N L PUMP KIT WAT PG1 13 10 93 A 2 2 4 LN2 12518443 1 N L PUMP WAT W GASKET PGO 5 318 1 073 INLET INLET KIT Engine Coolant Pump 92 A 2 5R LR8 10181368 1 8 93 INLET KIT W PMP CLNT SEAL 01 069 8X1 25MlVl 25MM LONG SELF TAPPING BOLT ARE REQUIRED TO ASSEMBLE WATER PUMP INLET PG1 11 14 93 A 2 2 4 LN2 12510743 1 8 66 INLET W AT PG1 15 18 1 079 BOLT GASKET Engine Coolant Pump 92 A 2 5R LR8 10043072 1 2 32 BOLT W PMlP HFH M10X1 5X120 26 THD 18 OD 9 8 PO PG1 11 17 92 A 2 5R LR8 1150 7023 AR 80 BOLT W PMP HEX FLG HD M 10X1 5X30 PZOR 9 8 08 900 PG1 11 13 92 93 A 3 3N LG7 25535660 4 27 BOLT W PMP TO FRT CVR 1 4 20X1 17 1 03 THD PG1 13 13 93 A 2 2 4 LN2 1233 7974 4 24 BOLT W PMP M8X1 25X25 21 8 THD 18 O D 10 9 PDR 08 900 PGO 5 319 92 A 2 5R LR8 11505590 1 50 BOLT W PMP NL HFH M8X1 25X25 25 THD 8 OD GM6202M PC TAP 08 977 92 A 2 5R LR8 10101877 1 3 50 GASKET W PMP HSG TO CYL BLK PG1 11 21 93 A 2 2 4 LN2 10140603 1 53 GASKET W PMP PGO 5 317 92 93 A 3 3N LG7 25524724 1 4 18 GASKET W PMP CVR PG1 13 9 92 A 2 5R LR8 10101879 1 82 GASKET W PMP INL PG1 11 18 93 A 2 2 4 LN2 10103563 1 57 GASKET WAT INL PG1 16 19 1 097 CONNECTOR HOSE Engine Coolant By Pass Hose 92 93 A 3 3N LG7 24500630 1 20 50 CONNECTOR THERM BYPASS HOSE 3 8 18 NPTF TO 15MM HOSE STL PE THD SEALER PGO 30 526 92 93 A 3 3N LG7 24500542 AR 4 33 HOSE THERIVI BYPASS PG1 13 15 1 148 CONNECTOR Engine Coolant Temperature Dash Unit 92 A 3 3N LG7 12085488 AR 19 88 CONNECTOR COOL T GA 2 WAY F 02 535 93 A 2 2 4 LN2 12085539 1 32 75 CONNECTOR SEN ENG COOL T GA 4 PIN F O2 535 1 150 CONNECTOR SENSOR Coolant Temperature Engine Unit 92 A 2 5R LR8 12085488 AR 19 88 CONNECTOR ENG COOL TEMP IND SW 2 WAY F 02 535 92 93 A 12085499 1 24 55 CONNECTOR ENG COOL TEMP SEN W LEADS 02 535 PG3 44 5 92 A 12101899 1 17 05 CONNECTOR ENG COOL TEMP SEN FEM METRI F ACK PULL TO ST CLNT TEMP SEN 08 965 PG3 44 5 93 A 2 2 4 Ll 2 12101899 1 17 05 CONNECTOR ENG COOL TEMP SEN 08 965 PG3 44 5 92 A 2 5R LR B 25036807 1 N L SENSOR ENG COOL T GA 1 BLADE TERM 3 8 18 THD PG1 8 13 92 A 3 3N LG7 25036807 1 N L SENSOR ENG COOL T GA 1 BLADE TERM 3 8 18 THD PG1 8 13 92 93 A 3 3N LG7 25036979 1 N L SENSOR ENG COOL T GA lNTERFACE WITH ECM USED FOR CLUSTERS W OIL GA LIGHT COMB GOES WITH 12101899 CONN 2 BLADE TERMINAL 3 8 18 THD PG1 9 11 93 A 3 3N LG7 25036807 1 N L SENSOR ENG COOL T GA PG1 8 13 93 A 2 2 4 LN2 10137646 1 19 49 SENSOR ENG COOL TEMP W ENG COOL T GA SEN Ei TEMP IND SW PG1 15 5 92 A 3 1T LHO EXPORT 25037185 1 66 89 SENSOR ENG COOL T GA 1 4 18 THD WITH WIRE LEAD 1 152 CORD HEATER Engine Coolant lHeater 92 A 3 3N LG7 ENG BLK HTR K05 25529223 1 17 55 CORD ENG COOL HTR PGO 13 19 92 A 2 5R LR8 ENG BLK HTR K05 25529223 1 17 55 CORD ENG COOL HTR PGO 13 19 93 A ENG BLK HTR K05 25529223 1 17 55 CORD ENG COOL HTR PGO 13 19 92 A 2 5R LR13 ENG BLK HTR K05 10137605 1 25 25 HEATER ENG COOL PGO 13 18 1993 GENERAL MOTORS SERVICE PARTS 0PERAT 0N OLDSMOBILE 35A 2 93 1 5 1 069 1 152
